WAGO 2000-510
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

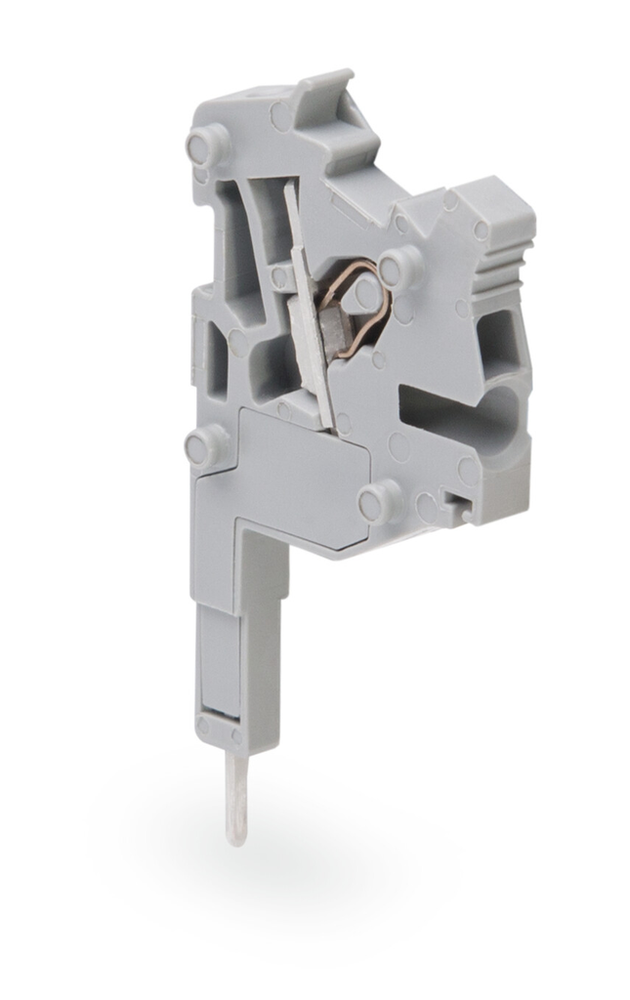

TOPJOB® S modular connector; for 2000 series; for jumper contact slot; 1-pole; gray
WAGO 2000-510 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4055143396400
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination
- 0.5 … 0.75 mm² / 20 … 18 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.14 … 0.75 mm² / 24 … 18 AWG
- Nominal cross-section
- 1 mm²
- Note (conductor cross-section)
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Pole number
- 1
- Solid conductor
- 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination
- 0.5 … 1.5 mm² / 20 … 16 AWG
- Strip length
- 9 … 11 mm / 0.35 … 0.43 inches
- Wiring direction
- Side-entry wiring
Material Data
- Color
- Gray
- Fire load
- 0.042 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Note (material data)
- Weight
- 1.880 g
Mechanical Data
- Marking level
- Center/side marking
Notes
- Safety information
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
Physical Data
- Module width
- 3.5 mm / 0.138 inches
- Width
- 3.5 mm / 0.138 inches
Ratings Per Csa
- Approvals per
- CSA 22.2 No 158
- Rated current CSA (Use Group B)
- 10 A
- Rated current CSA (Use Group C)
- 10 A
- Rated voltage CSA (Use Group B)
- 300 V
- Rated voltage CSA (Use Group C)
- 300 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Nominal voltage (III/3)
- 500 V
- Rated current
- 13.5 A
- Rated impulse voltage (III/3)
- 6 kV
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 10 A
- Rated current UL (Use Group C)
- 10 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group C)
- 300 V
Specifications
- Product Group Code
- 0022
