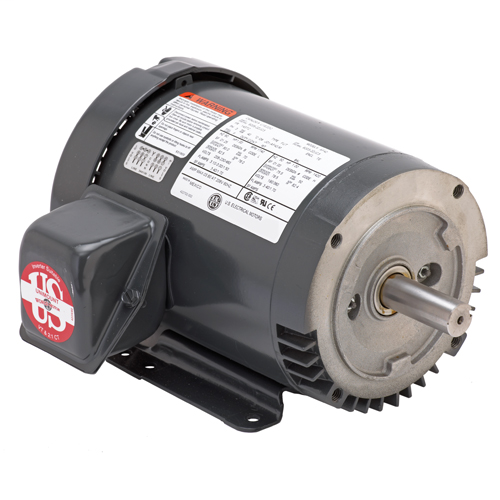

US Motors U32P2HC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Steel EdgeTM motors offer the widest range of electrical and mechanical features of any motor on the market today. Steel EdgeTM can be used on pumps, fans, compressors, general industrial belt drive, direct drive and direct-connected equipment where 12-lead, wye-start/delta-run is required. Steel EdgeTM is also available as an inverter duty motor, meeting both Parts 30 and 31 of NEMA MG-1 standards.1 1/2 HP,1745 RPM,U32P2HC,200 V,60,145TC
US Motors U32P2HC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amps @ Voltage
- 4.7
- Base RPM
- 1745 RPM
- Bearing Type
- 6203-2Z-J/C3,6205-2Z-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Material
- Rolled Steel
- Frame Size
- 145TC
- Frequency Rating
- 60 Hz
- Full Load Amps
- 4.7
- Full Load Current
- 4.7 A
- Full Load Efficiency
- 86.5 %
- Full Load Torque
- 4.5
- Harmonization Code
- 8501.52.4000
- HP
- 1 1/2 HP
- Insulation Class
- F
- kW
- 1.119 kW
- Model
- FD14
- Model Number
- FD14
- Motor Phase
- 3 ph
- Motor Poles
- 4 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- B
- NEMA / IEC Frame Size
- 145TC
- Overall Length (C-Dimension)
- 13.1
- Service Factor
- 1.25
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 200 V
- Synchronous RPM
- 1800 rpm
- Volts @ Frequency
- 200 V & 60
- Weight
- 35 LB
