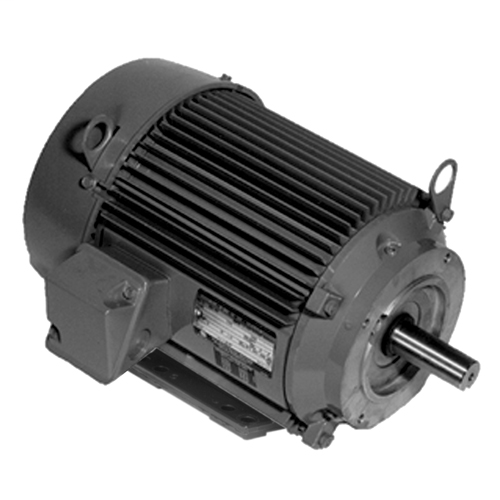

US Motors U25P2DC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
U.S. MOTORS® UNIMOUNT motors feature an extruded aluminum frame and Class F temperature rise at 1.25 service factor, making it the coolest running motorin the industry. Removable feet, C-Face and D-flange kits, canopy cap kits, and brake kits make UNIMOUNT motors one of the most versital motors in the industry. Aluminum brackets combined with steel bearing inserts ensure UNIMOUNT motors are both light weight and reliable.25 HP,1770 & 1460 RPM,U25P2DC,208-230/460 & 190/380 V,60 & 50,284TC
US Motors U25P2DC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 2nd voltage
- 190/380 V
- Amps @ Voltage
- 65-59/29.3 & 72/36
- Base RPM
- 1770 & 1460 RPM
- Bearing Type
- 6207-2Z-J/C3,6310-2Z-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Material
- Aluminum
- Frame Size
- 284TC
- Frequency Rating
- 60 & 50 Hz
- Full Load Amps
- 65-59/29.3
- Full Load Current
- 65-59/29.3 A
- Full Load Efficiency
- 93.6 %
- Full Load Torque
- 74.1
- Harmonization Code
- 8501.52.8000
- HP
- 25 HP
- Insulation Class
- F
- kW
- 18.65 kW
- Model
- DT75
- Model Number
- DT75
- Motor Phase
- 3 ph
- Motor Poles
- 4 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- B
- NEMA / IEC Frame Size
- 284TC
- Overall Length (C-Dimension)
- 28.2
- Service Factor
- 1.25
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 208-230/460 & 190/380 V
- Synchronous RPM
- 1800 rpm
- Volts @ Frequency
- 208-230/460 & 190/380 V & 60 & 50
- Weight
- 280 LB
