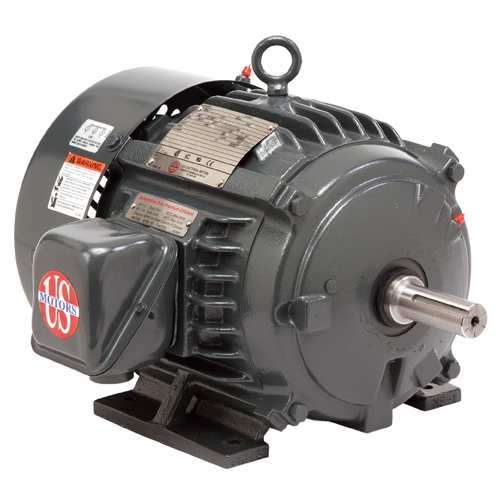

US Motors H10P2D
![Image of US Motors H10P2D](http://williamsautomation.com/cdn/shop/files/8a6631ee04872534bb01bf8e2d84d4b957b7f014-large_a74ea51f-923a-49b1-ae46-f41b06503583_1000x1000.png?v=1706918205)
![](http://williamsautomation.com/cdn/shop/files/free-shipping.png?v=1704404895&width=400)
![](http://williamsautomation.com/cdn/shop/files/warranty.png?v=1704404905&width=400)
![](http://williamsautomation.com/cdn/shop/files/bbb.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/overnight.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/usa.png?v=1704404908&width=400)
Description
US Motors H10P2D is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 2nd voltage
- 190/380 V
- Amps @ Voltage
- 26.5-23.9/12
- Base RPM
- 1760 & 1445 RPM
- Bearing Type
- 6208-2Z-J/C3,6208-2Z-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Material
- Cast Iron
- Frame Size
- 215T
- Frequency Rating
- 60 & 50 Hz
- Full Load Amps
- 26.5-23.9/12
- Full Load Current
- 26.5-23.9/12 A
- Full Load Efficiency
- 91.7 %
- Full Load Torque
- 29.8
- Harmonization Code
- 8501.52.4000
- HP
- 10 HP
- Insulation Class
- F
- kW
- 7.46 kW
- Model
- DE94
- Model Number
- DE94
- Motor Phase
- 3 ph
- Motor Poles
- 4 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- B
- NEMA / IEC Frame Size
- 215T
- Overall Length (C-Dimension)
- 19.1
- Service Factor
- 1.15
- Shaft Diameter
- 7
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 208-230/460 & 190/380 V
- Synchronous RPM
- 1800 rpm
- Type
- Severe Duty Motor
- Volts @ Frequency
- 208-230/460 & 190/380 V & 60 & 50
- Weight
- 190 LB
