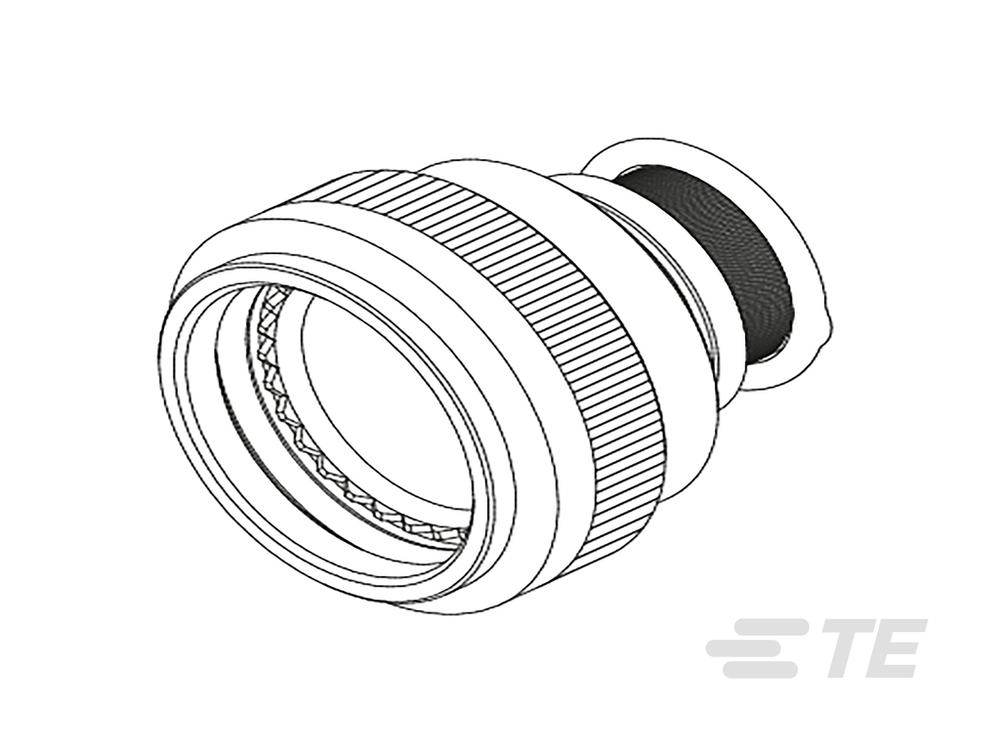

TE Connectivity TXR54AZ00-1204AI
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ruggedized Backshells & Adapters, Straight, Zinc Nickel (ASTM B841), Black, 3.2 – 5.1 mm[.125 – .2 in] Cable Diameter Range
TE Connectivity TXR54AZ00-1204AI is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adapter Angle
- Straight
- Adapter Entry Size
- 4
- Adapter Plating Material
- Zinc Nickel (ASTM B841)
- Backshell Material
- Aluminum
- Cable Diameter Range
- 3.2 – 5.1 mm[.125 – .2 in]
- Cable Entry Diameter
- .2 – 6.4 mm[.01 – .25 in]
- Color
- Black
- Connector Detail Specification Number
- AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702
- Connector General Specification Number
- AS50151 Class D,L,U,W Crimp Contact,AS50151 Class D,L,U,W Crimp Contact Less ENDBELL,AS50151 Class L,W Crimp Contact,AS50151 Crimp Contact,AS81703 Series 3,AS81703 Series 3/Class E,L,MIL-DTL-26482 Series 2/Class A,L,MIL-DTL-83723 Series I/Class A,G,R,MIL-DTL-83723 Series I/Class G,R,MIL-DTL-83723 Series III/Class A,G,K,R,MIL-DTL-83723 Series III/Class A,G,K,R,S,MIL-DTL-83723 Series III/Class A,G,R,MIL-DTL-83723 Series III/Class G,R,MIL-DTL-83723 Series III/Class G,R,W,MIL-DTL-83723 Series III/Class S,MIL-DTL-83723 Series IIII/Class H
- Connector Shell Size
- 07,12,12S
- Operating Temperature Range
- -65 – 175 °C[-85 – 347 °F]
- Overbraid Termination
- Tinel-Lock Ring
- Pluggable I/O Accessory Type
- Tinel-Lock Adapter
- Salt Spray Resistance
- 500 Hr
- Series
- Raychem TXR
- TE Adapter Code
- 54
- Termination Device Included
- TR04AI
- Termination Device Type
- Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
