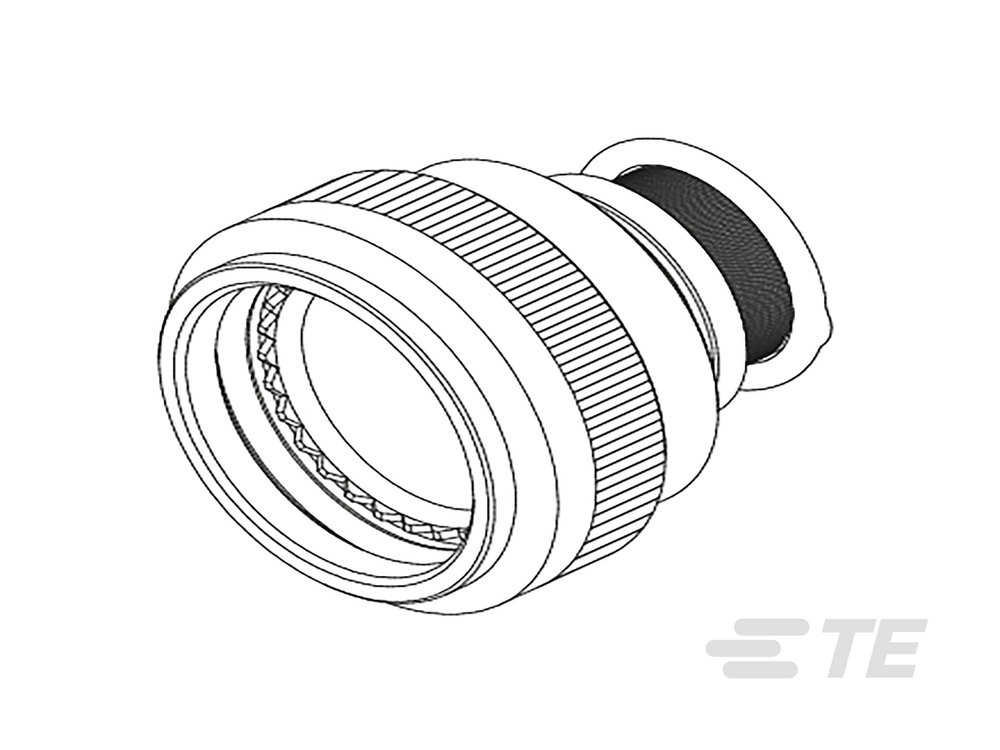

TE Connectivity TXR41AB00-0804BI
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TE Connectivity TXR41AB00-0804BI is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adapter Angle
- Straight
- Adapter Entry Size
- 4
- Adapter Plating Material
- Cadmium (AMS-QQ-P-416, Type II, Class 3)
- Backshell Material
- Aluminum
- Cable Diameter Range
- 3.2 – 5.1 mm[.125 – .2 in]
- Cable Entry Diameter
- .2 – 6.4 mm[.01 – .25 in]
- Color
- Olive Drab
- Connector Detail Specification Number
- MS24266, MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480, MS27481, MS27484, MS27497, MS27652, MS27653, MS27656, MS27661, MS27665
- Connector General Specification Number
- MIL-DTL-38999 Series I,MIL-DTL-38999 Series I/Class E,P,T,MIL-DTL-38999 Series I/Class E,T,MIL-DTL-38999 Series II/Class E,P,T,MIL-DTL-38999 Series II/Class E,T,MIL-DTL-38999 Series II/Class T
- Connector Shell Size
- 08,09
- Operating Temperature Range
- -65 – 175 °C[-85 – 347 °F]
- Overbraid Termination
- Tinel-Lock Ring
- Pluggable I/O Accessory Type
- Tinel-Lock Adapter
- Salt Spray Resistance
- 500 Hr
- Series
- Raychem TXR
- TE Adapter Code
- 41
- Termination Device Included
- TR04BI
- Termination Device Type
- Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
