Description

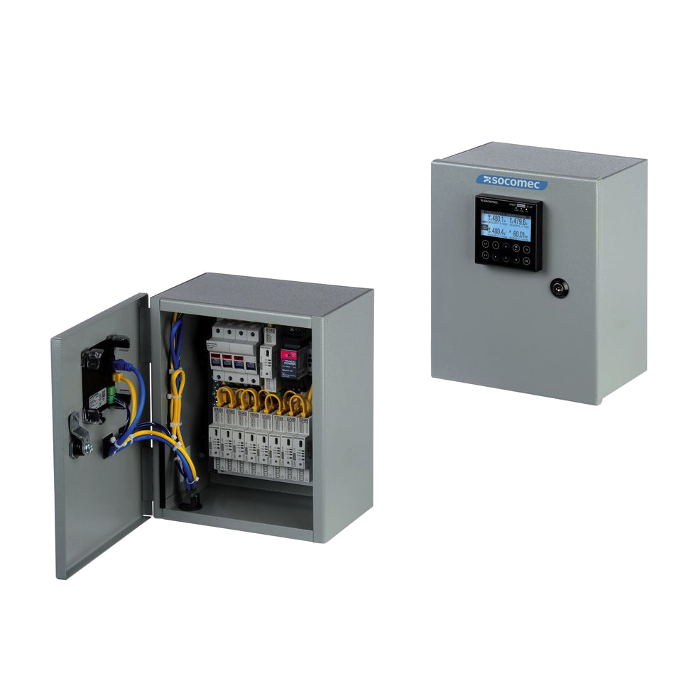

DIRIS DigiBOX 8 Display RS485; Modbus RTU; DIRIS Digiware; Enclosed multi-circuit Power Metering and Monitoring system; NEMA 1/3R; 24 Metering pointsDigiBOX 8 Display RS485
Socomec USDBB08D50 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accuracy
- ANSI C12.20
- Class 0.2
Communication Characteristics
- Communication Protocols
- Modbus RTU
- USB port interface
- 1 Type B micro USB; Upgrade and configuration of the module
Environmental Characteristics
- Enclosure protection degree
- NEMA 1/3R
General Product Characteristics
- Device type
- Enclosed multi-circuit Power Metering and Monitoring system
Measurement Characteristics
- Active Energy accuracy
- Class 0.2 ANSI C12.20
- External sensors association
- TE Solid Core; TR/iTR split Core; TF Flexible
- Frequency accuracy
- Class 0.02
- Frequency range
- 45-65 Hz
- Frequency rating
- 50/60 Hz
- General measurements
- Metering
- Load type
- To be configured in the module
- Measurement level
- Metering
- Network type
- To be configured in the module
- Number of single-phase metering points
- 24
- Number of three-phase metering points
- 8
- Reactive Power accuracy
- Class 0.2 ANSI C12.20
- Voltage connection
- Removable spring-cage terminal, 2 x 6 positions, 0.5 … 2.5 mm² solid cable or 0.25 … 1.5 mm² stranded cable with ferrule
- Voltage measurement accuracy
- Class 0.2
- Voltage measurement range Ph/N
- 50-300VAC
- Voltage measurement range Ph/Ph
- 87-520VAC
- Voltage measurement type
- AC
- Voltage Sampling rate
- 9.6 kHz
- Voltage transformer
- Optional
- Voltage transformer primary
- To be configured
- Voltage transformer secondary
- To be configured
Mechanical Characteristics
- Onboard display
- DIRIS DIGIWARE D-50
Pmd
- IEC 61557-12
- Class 0.5 for the global measurement chain
Specifications
- Country of Origin
- United States
- Dimensions
- 12 x 12 x 6.6 in
- Enclosure material
- Steel
- Power Monitoring device inside
- DIRIS Digiware
