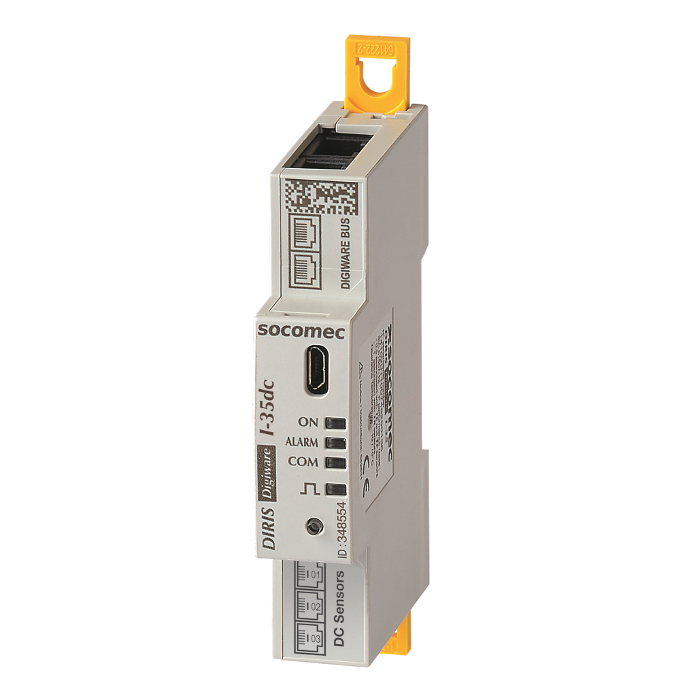

Socomec 48290156

Certificates and Declaration

• Conformity to standard #4
  • E257746 Vol.D1 Sec.D1000
• Proposition 65 California
  • WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov

Communication Characteristics

• Communication Ports
  • RJ45 Digiware input output
• USB port interface
  • 1 Type B micro USB; Upgrade and configuration of the module

Electromagnetic Compatibility

• Electromagnetic environment
  • Basic & Industrial
• Immunity to conducted disturbances
  • IEC 61000-4-6 LEVEL II CRITERION A
• Immunity to electrical fast transients/bursts
  • IEC 61000-4-4 LEVEL IV CRITERION A
• Immunity to electrostatic discharges on contact
  • IEC 61000-4-2 LEVEL III CRITERION A
• Immunity to electrostatic fields in the air
  • IEC 61000-4-2 LEVEL IV CRITERION A
• Immunity to power frequency magnetic fields
  • IEC 61000-4-8 400A/m CRITERION A
• Immunity to radiated electromagnetic fields
  • 80MHz to 1GHz IEC 61000-4-3 LEVEL III CRITERION A
• Radiated emissions
  • CISPR11 GROUP 1 - CLASS B
• Surge immunity in common mode
  • IEC 61000-4-5 LEVEL II CRITERION B

Environmental Characteristics

• PEP ecopassport - ISO 14025
  • SOCO-00008-V01.01-EN

General Characteristics

• Display compatibility
  • DIRIS Digiware D-40
• Webserver compatibility
  • WEBVIEW-M

General Product Characteristics

• Device type
  • DC current measurement module for DIRIS Digiware DC system

Measurement Characteristics

• Active Energy accuracy
  • Class 1 with U-31dc & U-32dc only
• Active Power accuracy
  • Class 1 with U-31dc & U-32dc only
• Load type
  • DC LOAD
• Measurement level
  • Metering
• Number of current inputs
  • 3

Safety

• Safety standards
  • IEC/EN 61010-1
• UL file number
  • E257746

Safety Standard

• UL product category
  • PICQ/PICQ7/FTRZ/FTRZ7

Specifications

• Country of Origin
  • France
• Power consumption in VA
  • 2
