Description

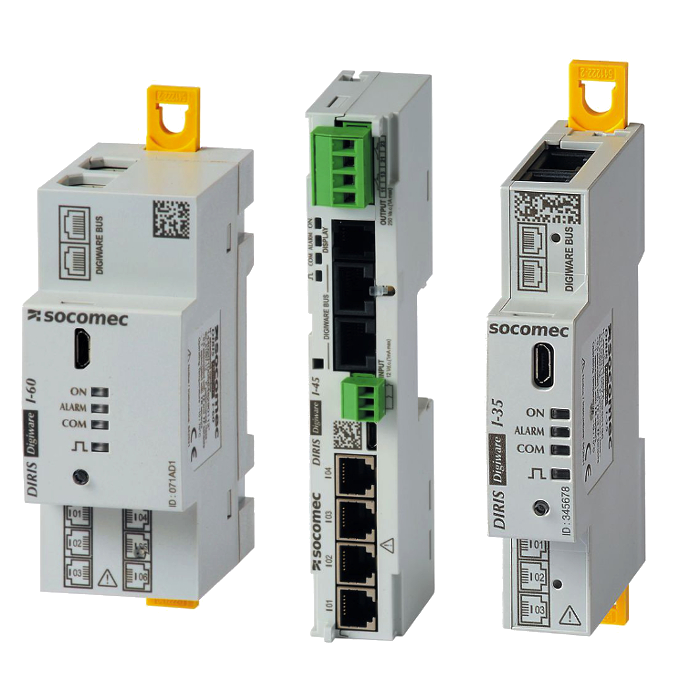

DIRIS Digiware I-60 Current; Current measurement module for DIRIS Digiware system; 6; MeteringDIRIS Digiware I-60 Current
Socomec 48290112 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accuracy
- ANSI C12.20
- Class 0.2
Certificates and Declaration
- Conformity to standard #3
- CEC Compliant
- Proposition 65 California
- WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Communication Characteristics
- Communication Ports
- RJ45 Digiware bus input output
- USB port interface
- 1 Type B micro USB; Upgrade and configuration of the module
Electrical Characteristics
- Device power consumption (VA)
- 0.7
Environmental Characteristics
- Impact resistance
- Front panel: 1J - casing: 1J (IEC 61010-1 Ed 3.0)
- Maximum operating altitude
- 6560 feet / 2000 m
- Operating temperature
- -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
- PEP ecopassport - ISO 14025
- SOCO-2014-06-v1-fr, SOCO-2014-06-v1-en
- Vibration
- 0.35 mm, 25 Hz, 20 min/axe (IEC 61557-12)
Environnement
- Relative humidity
- 55 °C / 131 °F / 97% RH (IEC 60068-2-30)
- Storage temperature
- -25 … +70 °C / -13 °F … + 158 °F (IEC 60068-2-1/IEC 60068-2-2)
General Characteristics
- Display compatibility
- DIRIS Digiware D-40
- Webserver compatibility
- WEBVIEW-M
General Product Characteristics
- Device type
- Current measurement module for DIRIS Digiware system
Measurement Characteristics
- Active Energy accuracy
- Class 0.2 ANSI C12.20
- Active Power accuracy
- Class 0.2 ANSI C12.20
- Current measurement type
- AC
- Current module input
- RJ12
- External sensors association
- TE Solid Core; TR/iTR split Core; TF Flexible
- General measurements
- Metering
- Load type
- To be configured in the module
- Measurement level
- Metering
- Measurement updating period
- Configurable from 200ms to 60s
- Number of current inputs
- 6
- Reactive Energy accuracy
- Class 2 for the global measurement chain with TE, TR or TF current sensors
Pmd
- IEC 61557-12
- Class 0.5 for the global measurement chain
Safety
- Safety standards
- IEC/EN 61010-1
- UL file number
- E257746
Safety Standard
- UL product category
- PICQ/PICQ7
Specifications
- Country of Origin
- France
- Dimensions
- 2 modules wide (36mm)
