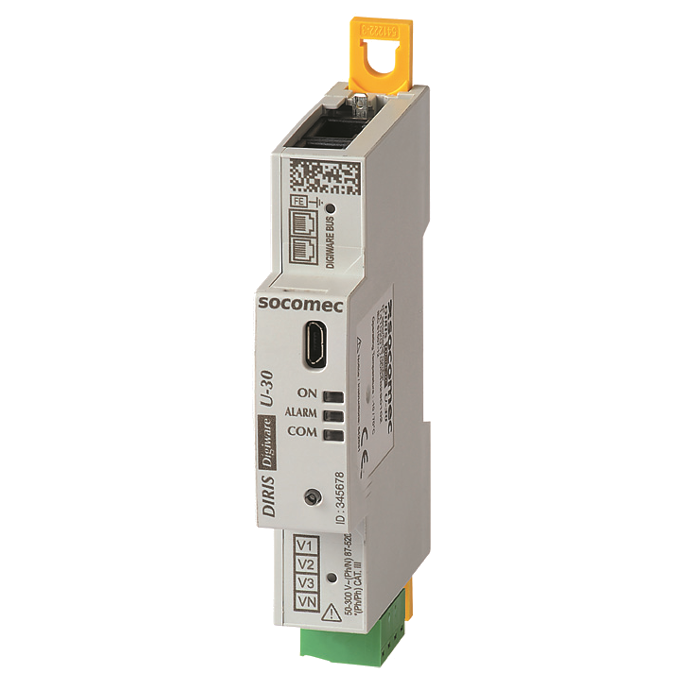

Socomec 48290106
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DIRIS Digiware U-20 Voltage; Voltage measurement module for DIRIS Digiware system; 87-520VAC; MonitoringDIRIS Digiware U-20 Voltage
Socomec 48290106 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates and Declaration
- Conformity to standard #3
- CEC Compliant
- Proposition 65 California
- WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Communication Characteristics
- Communication Ports
- RJ45 Digiware bus input output
- USB port interface
- 1 Type B micro USB; Upgrade and configuration of the module
Electrical Characteristics
- Device power consumption (VA)
- 0.72
Environmental Characteristics
- Impact resistance
- Front panel: 1J - casing: 1J (IEC 61010-1 Ed 3.0)
- Maximum operating altitude
- 6560 feet / 2000 m
- Operating temperature
- -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
- PEP ecopassport - ISO 14025
- SOCO-2014-05-v1-fr, SOCO-2014-05-v1-en
- Vibration
- 0.35 mm, 25 Hz, 20 min/axe (IEC 61557-12)
Environnement
- Relative humidity
- 55 °C / 131 °F / 97% RH (IEC 60068-2-30)
- Storage temperature
- -25 … +70 °C / -13 °F … + 158 °F (IEC 60068-2-1/IEC 60068-2-2)
General Characteristics
- Display compatibility
- DIRIS Digiware D-40
- Webserver compatibility
- WEBVIEW-M
General Product Characteristics
- Device type
- Voltage measurement module for DIRIS Digiware system
Measurement Characteristics
- Alarms
- 8 alarms with configurable thresholds (low/high)
- Frequency accuracy
- Class 0.02
- Frequency range
- 45-65 Hz
- Frequency rating
- 50/60 Hz
- General measurements
- Multi-measurement
- Measurement level
- Monitoring
- Measurement updating period
- Configurable from 200ms to 60s
- Network type
- To be configured in the module
- Power Quality measurements
- THD V1, V2, V3, U12, U23, U31
- Voltage connection
- Removable screw terminal, 4 positions, AWG 10 to AWG 32 / 0.2 to 2.5 mm² stranded or solid cable
- Voltage measurement accuracy
- Class 0.2
- Voltage measurement range Ph/N
- 50-300VAC
- Voltage measurement range Ph/Ph
- 87-520VAC
- Voltage measurement type
- AC
- Voltage Sampling rate
- 9.6 kHz
- Voltage transformer primary
- To be configured
- Voltage transformer secondary
- To be configured
Safety
- Safety standards
- IEC/EN 61010-1
- UL file number
- E257746
Safety Standard
- UL product category
- PICQ/PICQ7
Specifications
- Country of Origin
- France
- Dimensions
- 1 module wide (18mm)
