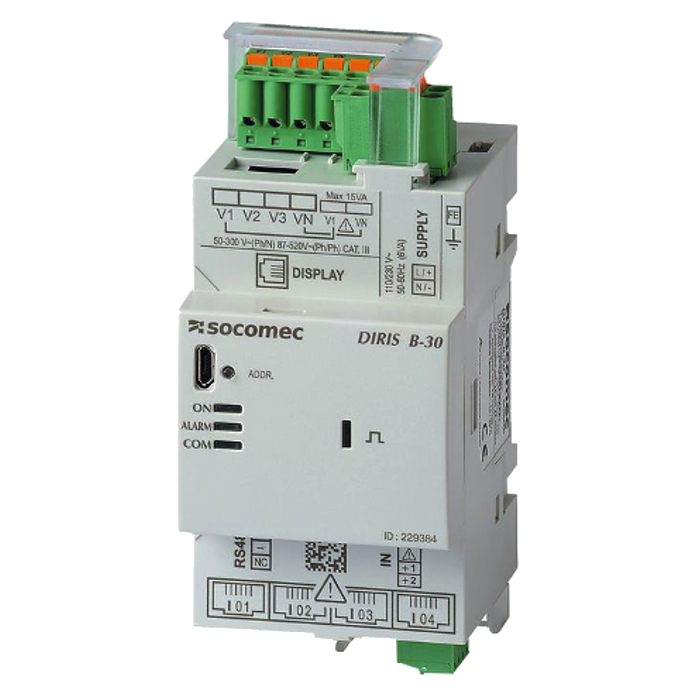

Socomec 48290000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DIRIS B-30 RS485 Modbus 230VACDIRIS B-30 RS485 Modbus 230VAC
Socomec 48290000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accuracy
- ANSI C12.20
- Class 0.2
Certificates and Declaration
- Conformity to standard #3
- CEC Compliant
- Conformity to standard #4
- E257746 Vol.X5 Sec.A7
- Proposition 65 California
- WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Communication Characteristics
- Communication Ports
- RS485 output
- Communication Protocols
- Modbus RTU
- Communication speed
- 1200-115200 bauds
- Physical layer
- RS485 2-3 half duplex wires - SELV
- USB port interface
- 1 Type B micro USB; Upgrade and configuration of the module
Electrical Characteristics
- Device power consumption (VA)
- ≤ 2
- Input voltage
- 110-230 VAC +/- 15%
- Power supply connection
- Removable spring-cage terminal, 2 x 2 positions, 0.5 … 2.5 mm² solid cable or 0.25 … 1.5 mm² stranded cable with ferrule
- Power supply frequency
- 50/60 Hz
- Power supply type
- AC
Electromagnetic Compatibility
- Immunity to conducted disturbances
- 400A/m LEVEL IV
- Immunity to electrical fast transients/bursts
- LEVEL IV
- Immunity to electrostatic discharges on contact
- LEVEL III
- Immunity to electrostatic fields in the air
- LEVEL III
- Immunity to power frequency magnetic fields
- CLASS B
- Immunity to radiated electromagnetic fields
- LEVEL IV
- Surge immunity in common mode
- LEVEL III
Environmental Characteristics
- Impact resistance
- Front panel: 5J - casing: 1J (IEC 61010-1 Ed 3.0)
- Maximum operating altitude
- 6560 feet / 2000 m
- Operating temperature
- -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
- PEP ecopassport - ISO 14025
- SOCO-2014-01-v1-fr, SOCO-2014-01-v1-en
- Vibration
- 0.35 mm, 25 Hz, 20 min/axe (IEC 61557-12)
Environnement
- Relative humidity
- 55 °C / 131 °F / 97% RH (IEC 60068-2-30)
- Storage temperature
- -25 … +85 °C (IEC 60068-2-1/IEC 60068-2-2)
General Characteristics
- Display compatibility
- DIRIS D-30
- Webserver compatibility
- WEBVIEW-M
General Product Characteristics
- Device type
- Multifunction Power metering and monitoring device (PMD)
Measurement Characteristics
- Active Energy accuracy
- Class 0.2 ANSI C12.20
- Active Power accuracy
- Class 0.2 ANSI C12.20
- Alarms
- 8 alarms with configurable thresholds (low/high)
- Current measurement type
- AC
- Digital input function
- To be configured in device
- Digital input type
- Optocoupler internal polarisation (12 VDC ± 10 %) or external polarisation (10-30VDC ± 10%)
- External sensors association
- TE Solid Core; TR/iTR split Core; TF Flexible
- Frequency accuracy
- Class 0.02
- Frequency range
- 45-65 Hz
- Frequency rating
- 50/60 Hz
- General measurements
- Metering
- Load type
- To be configured in the module
- Measurement level
- Power Quality Analysis
- Measurement updating period
- Configurable from 200ms to 60s
- Network type
- To be configured in the module
- Number of current inputs
- 4
- Number of Digital inputs/outputs
- 2 Digital inputs
- Power Quality measurements
- THD V1, V2, V3, U12, U23, U31, I1, I2, I3
- Pulse counter
- Yes, 2 Digital inputs
- Reactive Energy accuracy
- Class 2 for the global measurement chain with TE, TR or TF current sensors
- Voltage connection
- Removable spring-cage terminal, 2 x 6 positions, 0.5 … 2.5 mm² solid cable or 0.25 … 1.5 mm² stranded cable with ferrule
- Voltage measurement accuracy
- Class 0.2
- Voltage measurement range Ph/N
- 50-300 VAC
- Voltage measurement range Ph/Ph
- 87-520 VAC
- Voltage measurement type
- AC
- Voltage Sampling rate
- 9.6 kHz
- Voltage transformer
- Optional
- Voltage transformer primary
- To be configured
- Voltage transformer secondary
- To be configured
Pmd
- IEC 61557-12
- Class 0.5 for the global measurement chain
Safety
- Safety standards
- IEC/EN 61010-1
- UL file number
- E257746
Safety Standard
- UL product category
- PICQ/PICQ7
Specifications
- Country of Origin
- France
- Dimensions
- 3 modules wide (54mm)
