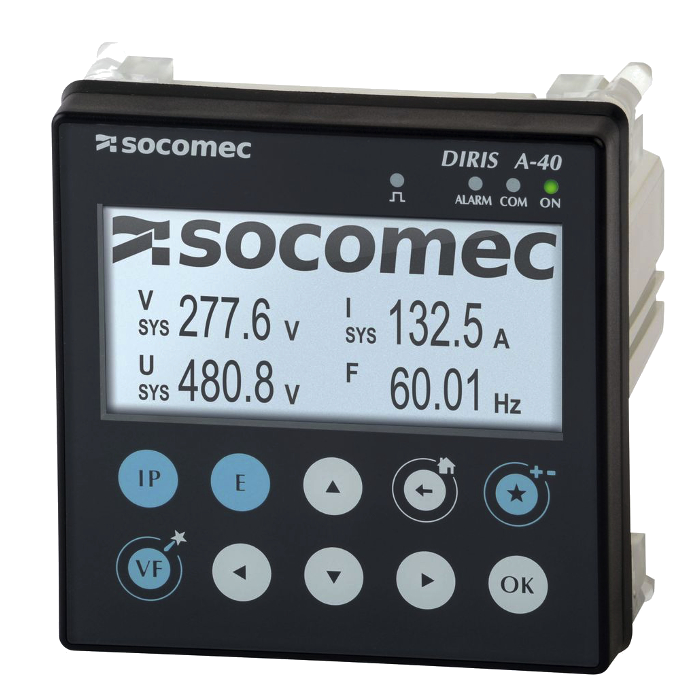

Socomec 48250500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DIRIS A-40; Power Metering and Monitoring Device; 110-400 VAC 50/60 Hz; 120-300 VDC; Class 0.5 for the global measurement chain; 3 Digital inputs / 2 Digital outputs; RS485 output; Modbus RTUDIRIS A-40 RS485 Modbus 3I 2O
Socomec 48250500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates and Declaration
- Conformity to standard #3
- CEC Compliant
- Proposition 65 California
- WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Communication Characteristics
- Communication Ports
- RS485 output
- Communication Protocols
- Modbus RTU
- Communication speed
- 9600-115200 bauds
- Physical layer
- RS485 2-3 half duplex wires - SELV
- USB port interface
- 1 Type B micro USB; Upgrade and configuration of the module
Electrical Characteristics
- Input voltage
- 110-400 VAC 50/60 Hz; 120-300 VDC
- Power supply type
- AC / DC
Electromagnetic Compatibility
- Immunity to conducted disturbances
- IEC 61000-4-6
- Immunity to electrical fast transients/bursts
- IEC 61000-4-4
- Immunity to electrostatic fields in the air
- IEC 61000-4-2
- Immunity to power frequency magnetic fields
- IEC 61000-4-8
- Immunity to radiated electromagnetic fields
- IEC 61000-4-3
- Radiated emissions
- CISPR11 GROUP 1 - CLASS A
- Surge immunity in common mode
- IEC 61000-4-5
Environmental Characteristics
- Impact resistance
- Front panel: 5J - casing: 1J (IEC 61010-1 Ed 3.0)
- Maximum operating altitude
- 6560 feet / 2000 m
- Operating temperature
- -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
- PEP ecopassport - ISO 14025
- SOCO-000007-V01.01-EN
- Vibration
- 0.35 mm, 25 Hz, 20 min/axe (IEC 61557-12)
Environnement
- Relative humidity
- 70 °C / 158 °F / 97% RH (IEC 60068-2-30)
- Storage temperature
- -25 … +85 °C (IEC 60068-2-1/IEC 60068-2-2)
General Product Characteristics
- Device type
- Power Metering and Monitoring Device
Measurement Characteristics
- Accuracy class
- Class 0.5
- Active Power accuracy
- Class 0.2 ANSI C12.20
- Current measurement type
- AC
- External sensors association
- TE Solid Core; TR/iTR split Core; TF Flexible
- Frequency accuracy
- Class 0.02
- Frequency range
- 45-65 Hz
- Frequency rating
- 50/60 Hz
- Load type
- To be configured in the module
- Measurement level
- Power Quality Analysis
- Network type
- To be configured in the module
- Number of current inputs
- 3
- Number of Digital inputs/outputs
- 3 Digital inputs / 2 Digital outputs
- Number of measurement points
- 1
- Pulse counter
- Yes, 3 Digital inputs
- Voltage connection
- Removable spring-cage terminal, 2 x 6 positions, 0.5 … 2.5 mm² solid cable or 0.25 … 1.5 mm² stranded cable with ferrule
- Voltage measurement accuracy
- Class 0.2
- Voltage measurement range Ph/N
- 50-300 VAC
- Voltage measurement range Ph/Ph
- 87-520VAC
- Voltage measurement type
- AC
- Voltage Sampling rate
- 9.6 kHz
- Voltage transformer
- Optional
- Voltage transformer primary
- To be configured
- Voltage transformer secondary
- To be configured
Mechanical Characteristics
- Cut-out type
- 92mm x 92mm
- Display type
- Display with 10 capacitive keys
- Integrated keyboard
- Yes
- Number of function buttons
- 10
- Number of pixels, horizontal
- 350
- Number of pixels, vertical
- 160
Pmd
- IEC 61557-12
- Class 0.5 for the global measurement chain
Safety
- Safety standards
- IEC/EN 61010-1
- UL file number
- E257746
Safety Standard
- UL product category
- PICQ/PICQ7/FTRZ/FTRZ7
Specifications
- Country of Origin
- France
- RS485 connection
- Removable screw terminal, 3 positions, 0.14 to 1.5 mm² stranded or solid cable
