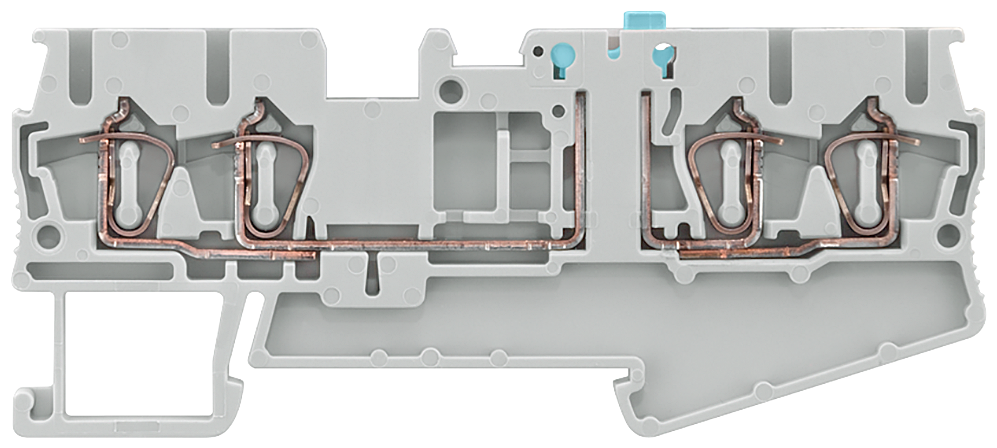

Siemens 8WH20046CF00
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ISOLATING BLADE TERMINAL WITH SPRING CONNECTION, 4 CONNECT. POINTS SECTION: 0.08 - 2.5 MM2, WIDTH: 5.2 MM, COLOR: GRAY WITH BLADE ORANGETERM, SPRNG, ISOLAT BLADE, 2.5, GRAY, 4-CONN
Siemens 8WH20046CF00 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Color
- Grey
- Combustibility class
- V0
- Connection type
- spring-cage connection
- Country of Origin
- DE
- Design of cross-switch disconnector
- Without
- Design of longitudinal or transverse separation
- Without
- height at lowest possible mounting
- 84 millimetre
- Integrated test connector present
- false
- Length
- 84 millimetre
- material of insulation
- Without
- max. connectable conductor cross-section fine wire with conductor end sleeve
- 3 millimetre^2
- Max. line cross section, flexible
- 3 millimetre^2
- Max. line cross section, rigid
- 4 millimetre^2
- Max. operating temperature
- -105 degree_Celsius
- min. connectable conductor cross-section fine wire with conductor end sleeve
- 0 millimetre^2
- Min. line cross section, flexible
- 0 millimetre^2
- Min. line cross section, rigid
- 0 millimetre^2
- Min. operating temperature
- -60 degree_Celsius
- Number of contact points per level
- 4
- Number of levels
- 1
- Rated current In
- 20 ampere
- Rated current [In] for the power loss specification
- 20 ampere
- Rated voltage
- 400 volt
- Width of spacing
- 5 millimetre
