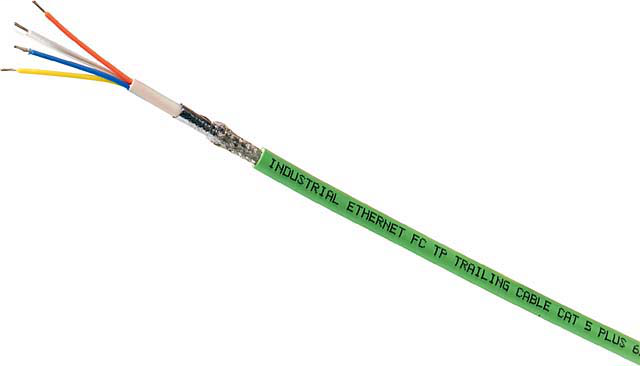

Siemens 6XV1 840-3AH10

Additional Product Information

• Article Number (Market Facing Number)
  • 4959740 | 6XV1840-3AH10
• Commodity Code
  • 85444920
• Compliance with the Substance Restrictions According to RoHS Directive
  • Given
• Country Of Origin
  • Germany
• EAN
  • 4019169400497
• LKZ_FDB/ CatalogID
  • IK
• Product Class
  • C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
• Product Group
  • 2427
• UPC
  • 662643218534

Classifications

• eClass (9.1)
  • 27-06-18-01
• ETIM (7)
  • EC003249
• IDEA (4)
  • 1722
• UNSPSC (15)
  • 26-12-16-09

Delivery Information

• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (kg)
  • 0,063 Kg
• Package Size Unit of Measure
  • CM
• Packaging Dimension
  • 0,60 x 100,00 x 0,60
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Meter
• Standard Lead Time Ex-works
  • 1 Day/Days

Electrical Data

• Damping Ratio Per Length at 100 MHz / Maximum
  • 0.22 dB/m
• Damping Ratio Per Length at 10 MHz / Maximum
  • 0.06 dB/m
• Impedance at 1 MHz ... 100 MHz
  • 100 Ω
• Loop Resistance Per Length / Maximum
  • 120 mΩ/m
• Near-end Crosstalk per Length at 1 MHz ... 100 MHz
  • 0.5 dB/m
• Operating Voltage NVP Value in Percent
  • 66 %
• Operating Voltage RMS Value
  • 80 V
• Relative Symmetrical Tolerance of the Characteristic Impedance at 1 MHz … 100 MHz
  • 15 %
• Transfer Impedance per Length / at 10 MHz
  • 10 mΩ/m

Mechanical Data

• Bending Radius with Continuous Bending
  • 100 mm
• Bending Radius with Multiple Bends / Minimum Permissible
  • 49 mm
• Bending Radius with Single Bend / Minimum Permissible
  • 19.5 mm
• Color of Cable Sheath
  • green
• Color of the Insulation of Data Wires
  • white/yellow/blue/orange
• Core Diameter of AWG22 Core
  • 0.75 mm
• Design of the Shield
  • Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
• Material of Cable Sheath
  • PUR (TPE-U)
• Material of the Inner Sheath of the Cable
  • FRNC
• Material of the Wire Insulation
  • polyethylene (PE)
• Number of Bending Cycles
  • 4000000; Drag chain suitable for 4 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s²
• Number of Electrical Cores
  • 4
• Outer Diameter of Cable Sheath
  • 6.5 mm
• Outer Diameter of Inner Conductor
  • 0.75 mm
• Outer Diameter of the Inner Sheath of the Cable
  • 3.9 mm
• Outer Diameter of the Wire Insulation
  • 1.5 mm
• Symmetrical Tolerance of the Outer Diameter / of Cable Sheath
  • 0.2 mm
• Tensile Load / Maximum
  • 150 N
• Type of Electrical Connection / FastConnect
  • Yes
• Weight Per Length
  • 63 kg/km

Permitted Ambient Conditions

• Ambient Temperature During Installation
  • -20 ... +60 °C
• Ambient Temperature During Operation
  • -40 ... +75 °C
• Ambient Temperature During Storage
  • -50 ... +75 °C
• Ambient Temperature During Transport
  • -50 ... +75 °C
• Burning Behavior
  • flame resistant according to IEC 60332-1-2
• Chemical Resistance to Grease
  • resistant
• Chemical Resistance to Mineral Oil
  • oil resistant according to IEC 60811-2-1 (7x24h/90°C)
• Chemical Resistance to Water
  • resistant
• Class of Burning Behaviour / According to EN 13501- 6
  • Eca
• Note
  • Electrical properties measured at 20 °C, tests according to DIN VDE 0472
• Radiological Resistance / to UV Radiation
  • resistant

Product Properties, Functions, Components / General

• Halogen-Free
  • Yes
• Silicon-free
  • Yes
• Wire Length / for Industrial Ethernet with 100BaseTX
  • 85 m

Standards, Specifications, Approvals

• American Bureau of Shipping Europe Ltd. (ABS)
  • No
• Bureau Veritas (BV)
  • No
• CE Marking
  • Yes
• Det Norske Veritas (DNV)
  • No
• Germanische Lloyd (GL)
  • No
• Lloyds Register of Shipping (LRS)
  • No
• Nippon Kaiji Kyokai (NK)
  • No
• Polski Rejestr Statkow (PRS)
  • No
• RoHS Conformity
  • Yes
• Standard for Structured Cabling
  • Cat5e
• UL/ETL Listing / 300 V Rating
  • Yes; cULus / CMX
• UL/ETL Style / 600 V Rating
  • Yes
