Siemens 6XV18305GH10
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

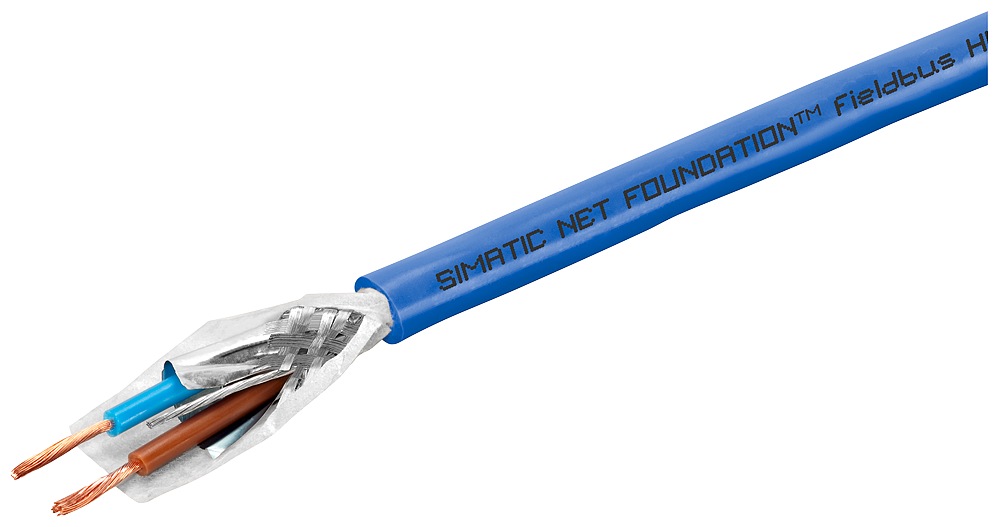

FOUNDATION FIELDBUS CABLE; BUS CABLE FOR IEC61158-2; SHEATH COLOR BLUE FOR EX- APPLICATIONS.; 2-WIRE SHIELDED; DRAIN WIRE; SOLD BY THE M; MAX. ORDER QUANTITY: 1000 M MIN. ORDER QUANTITY: 20 MCABLE PROFI FC PA BLUE (20M MIN.)
Siemens 6XV18305GH10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Class of conductor
- Kl.5 = fine-wire
- Color of coat
- Blue
- Construction of the cabled element
- Two wire
- Country of Origin
- DE
- description of product type
- Foundation Fieldbus Cable
- design of shield
- Overlapped aluminum-clad foil, sheathed in a braided shield
- Design of shield over cabled element
- null
- Design of shield over cabling
- Film + fabric
- Diameter of conductor
- 1.17 millimetre
- Flame resistant according to standard
- According to IEC 60332-1-2
- halogen free (according to EN 50267-2-2)
- false
- inductance per length
- 0.000001 henry metre^-1
- Low-fuming acc. to EN 61034-2
- false
- Marking of conductors
- Color
- Material of the mantle
- Polyvinyl chloride
- Material of the wire insulation
- PE
- max. ambient temperature during operating phase
- 105 degree_Celsius
- Max. perm. surface temperature with open (not stationary) lines
- -40 degree_Celsius
- Max. perm. surface temperature with stationary lines
- 105 degree_Celsius
- max. traction stress
- 100 newton
- min. ambient temperature during operating phase
- -40 degree_Celsius
- Min. perm. surface temperature with open (not stationary) lines
- 105 degree_Celsius
- Min. perm. surface temperature with stationary lines
- -40 degree_Celsius
- Number of wires
- 2
- Outer diameter of the cable
- 8.5 millimetre
- REACH registration present
- false
- RoHS attention of conformity
- true
- Side wire present
- false
- USP information
- FOUNDATION Fieldbus,PROFIBUS,Ex,Non-Ex,FF
