Description

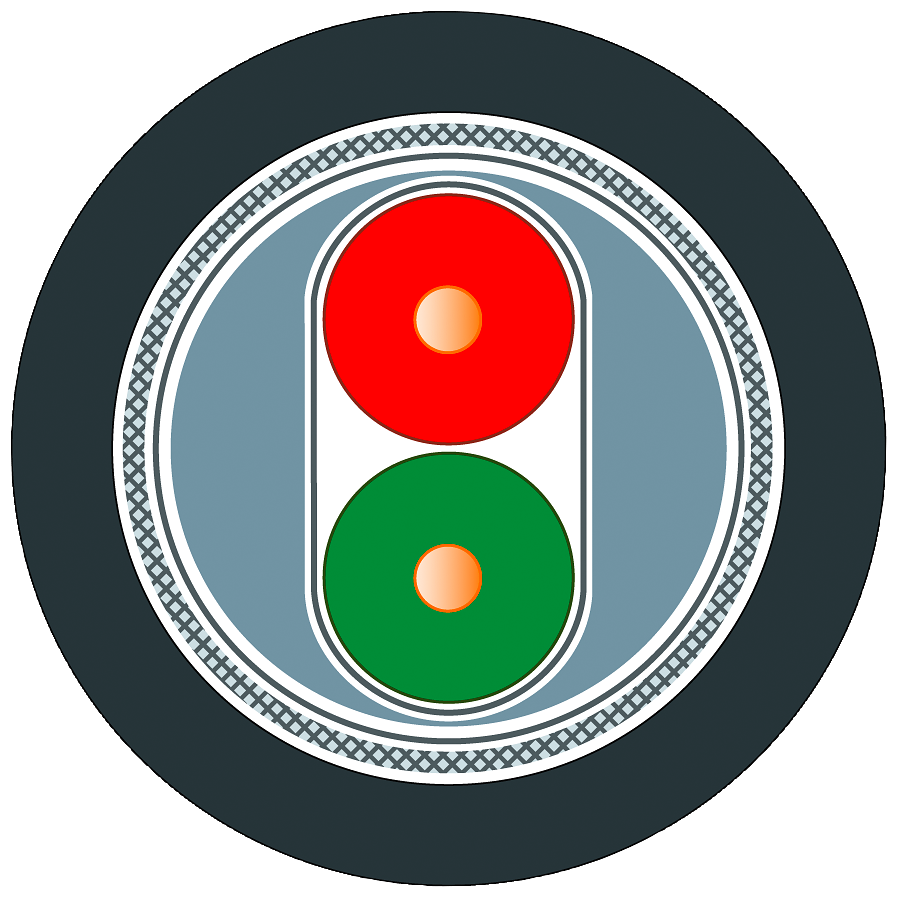

QUANTITY: 20 M CONSIGNM.: 1000M, MIN. ORDERING SOLD BY THE METER, MAX. INDUSTRIES, 2-WIRE, SHIELDED, APPLICATION IN THE FOODSTUFFS BUS CABLE WITH PE-SHEATH FOR SIMATIC NET, PROFIBUS FC FOODCABLE PROFI FC FOOD PER METER
Siemens 6XV18300GH10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Class of conductor
- Kl.1 = single-wire
- Color of coat
- Black
- Construction of the cabled element
- Two wire
- Country of Origin
- DE
- description of product type
- PROFIBUS FC Food Cable
- design of shield
- Overlapped aluminum-clad foil, sheathed in a braided screen
- Design of shield over cabled element
- null
- Design of shield over cabling
- Film + fabric
- Diameter of conductor
- 0.65 millimetre
- Flame resistant according to standard
- No
- halogen free (according to EN 50267-2-2)
- false
- Low-fuming acc. to EN 61034-2
- false
- Marking of conductors
- Color
- Material of the mantle
- PE
- Material of the wire insulation
- PE
- max. ambient temperature during operating phase
- 60 degree_Celsius
- Max. perm. surface temperature with open (not stationary) lines
- -40 degree_Celsius
- Max. perm. surface temperature with stationary lines
- 60 degree_Celsius
- max. traction stress
- 100 newton
- min. ambient temperature during operating phase
- -40 degree_Celsius
- Min. perm. surface temperature with open (not stationary) lines
- 60 degree_Celsius
- Min. perm. surface temperature with stationary lines
- -40 degree_Celsius
- Number of wires
- 2
- Outer diameter of the cable
- 8 millimetre
- REACH registration present
- false
- RoHS attention of conformity
- true
- Side wire present
- false
- USP information
- PROFIBUS FC Food Cable,FC,FastConnect,food,beverages and tob
