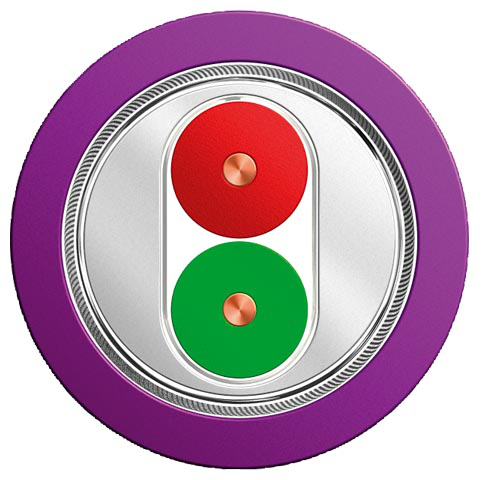

Siemens 6XV1830-0EH10

Additional Product Information

• Article Number (Market Facing Number)
  • 4959500 | 6XV1830-0EH10
• Commodity Code
  • 85444920
• Compliance with the Substance Restrictions According to RoHS Directive
  • Since: 01.01.2006
• Country Of Origin
  • Slovakia
• EAN
  • 4019169400312
• LKZ_FDB/ CatalogID
  • IK
• Product Class
  • C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
• Product Group
  • 2427
• UPC
  • 662643224474

Classifications

• eClass (9.1)
  • 27-06-18-01
• ETIM (7)
  • EC003249
• IDEA (4)
  • 1722
• UNSPSC (15)
  • 26-12-16-09

Delivery Information

• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (kg)
  • 0,078 Kg
• Package Size Unit of Measure
  • CM
• Packaging Dimension
  • 3,50 x 3,50 x 7,00
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Meter
• Standard Lead Time Ex-works
  • 1 Day/Days

Electrical Data

• Capacity Per Length / at 1 kHz
  • 28.5 pF/m
• Damping Ratio Per Length at 16 MHz / Maximum
  • 0.042 dB/m
• Damping Ratio Per Length at 38.4 kHz / Maximum
  • 0.004 dB/m
• Damping Ratio Per Length at 4 MHz / Maximum
  • 0.022 dB/m
• Damping Ratio Per Length at 9.6 kHz / Maximum
  • 0.0025 dB/m
• Impedance at 38.4 kHz
  • 185 Ω
• Impedance at 3 MHz … 20 MHz
  • 150 Ω
• Impedance at 9.6 kHz
  • 270 Ω
• Impedance Rated value
  • 150 Ω
• Loop Resistance Per Length / Maximum
  • 110 mΩ/m
• Operating Voltage RMS
  • 100 V
• Relative Symmetrical Tolerance of the Characteristic Impedance at 38.4 kHz
  • 10 %
• Relative Symmetrical Tolerance of the Characteristic Impedance at 3 MHz ... 20 MHz
  • 10 %
• Relative Symmetrical Tolerance of the Characteristic Impedance at 9.6 kHz
  • 10 %
• Shield Resistance per Length / Maximum
  • 9.5 Ω/km

Mechanical Data

• Bending Radius with Multiple Bends / Minimum Permissible
  • 75 mm
• Bending Radius with Single Bend / Minimum Permissible
  • 37.5 mm
• Color of Cable Sheath
  • Violet
• Color of the Insulation of Data Wires
  • red/green
• Design of the Shield
  • Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
• Material of Cable Sheath
  • PVC
• Material of the Inner Sheath of the Cable
  • PVC
• Material of the Wire Insulation
  • polyethylene (PE)
• Number of Electrical Cores
  • 2
• Outer Diameter of Cable Sheath
  • 8 mm
• Outer Diameter of Inner Conductor
  • 0.65 mm
• Outer Diameter of the Inner Sheath of the Cable
  • 5.4 mm
• Outer Diameter of the Wire Insulation
  • 2.55 mm
• Symmetrical Tolerance of the Outer Diameter / of Cable Sheath
  • 0.4 mm
• Tensile Load / Maximum
  • 100 N
• Type of Electrical Connection / FastConnect
  • Yes
• Weight Per Length
  • 78 kg/km

Permitted Ambient Conditions

• Ambient Temperature During Installation
  • -40 ... +75 °C
• Ambient Temperature During Operation
  • -40 ... +75 °C
• Ambient Temperature During Storage
  • -40 ... +75 °C
• Ambient Temperature During Transport
  • -40 ... +75 °C
• Burning Behavior
  • flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)
• Chemical Resistance to Grease
  • Conditional resistance
• Chemical Resistance to Mineral Oil
  • oil resistant according to IEC 60811-2-1 (4 h / 70°C)
• Chemical Resistance to Water
  • Conditional resistance
• Class of Burning Behaviour / According to EN 13501- 6
  • Eca
• Note
  • Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472
• Radiological Resistance / to UV Radiation
  • resistant

Product Properties, Functions, Components / General

• Halogen-Free
  • Yes
• Silicon-free
  • Yes

Specifications

• Cable Designation
  • 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR
• Suitability for Use
  • Standard cable specially designed for fast, permanent installation
