Siemens 6SL33101GH310AA3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

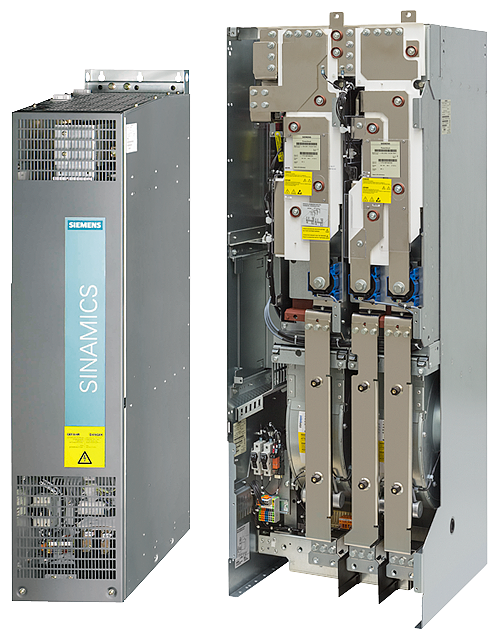

SINAMICS G130 POWER MODULE IP20 3AC 660-690V, 50/60HZ, 100 A UNIT RATING: 90 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN CIM INCL. DRIVE-CLIQ CABLE WITHOUT CONTROL MODULEG130 POW MOD, IP20, 660-690VAC, 100A, 90KW
Siemens 6SL33101GH310AA3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 4 quadrant operation possible
- false
- Base load current at high overload
- 89 ampere
- Base load current at low overload
- 95 ampere
- Brake chopper integrated
- false
- Capacity of DC link
- 2470 microfarad
- computer port
- false
- Country of Origin
- DE
- Depth
- 356 millimetre
- Design of frequency changer
- U converter
- Height
- 1400 millimetre
- Input phase number
- 3
- Max. fuse protection
- 155 ampere
- max. mains voltage
- 690 volt
- Max. output frequency
- 192 hertz
- max. output power with linear load and rated output voltage
- 75 kilowatt
- max. output power with square load at rated output voltage
- 0 kilowatt
- max. rated operating current Ie
- 109 ampere
- Min. network voltage
- 660 volt
- Net weight
- 104 kilogram
- number of analogue inputs
- 0
- number of analogue outputs
- 0
- number of digital inputs
- 0
- Number of HW interfaces Industrial Ethernet
- 0
- Number of HW interfaces, other
- 3
- Number of HW interfaces parallel
- 0
- Number of HW interfaces PROFINET
- 0
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Number of HW interfaces serial TTY
- 0
- Number of inputs, bidirectional, not potential-free
- 0
- Number of inputs, potential-free
- 0
- Operating element present
- false
- Optical interface present
- false
- Output phases, number of
- 3
- Output power at rated output voltage
- 90 kilowatt
- Power loss per device, current-dependent [PlId]
- 1700 watt
- Power loss, static, current-independent [Pls]
- 82 watt
- Protection type IP
- IP20
- Rated current [In] for the power loss specification
- 100 ampere
- Rated output current
- 100 ampere
- Rated output voltage
- 690 volt
- Relative symmetric mains frequency tolerance
- 5 percent
- Relative symmetric mains voltage tolerance
- 10 percent
- Use in the industrial area permissible
- true
- Width
- 326 millimetre
- With safety function Safe brake management (SBC/SBT)
- true
- With safety function Safe Direction (SDI)
- true
- With safety function Safely Limited Position (SLP)
- true
- With safety function Safely Limited Speed (SLS)
- true
- With safety function Safe Operating Stop (SOS)
- true
- With safety function Safe Position (SP)
- true
- With safety function Safe programmable logic
- false
- With safety function Safe Stop 1 (SS1)
- true
- With safety function Safe Stop 2 (SS2)
- true
- With safety function Safe torque off (STO)
- true
