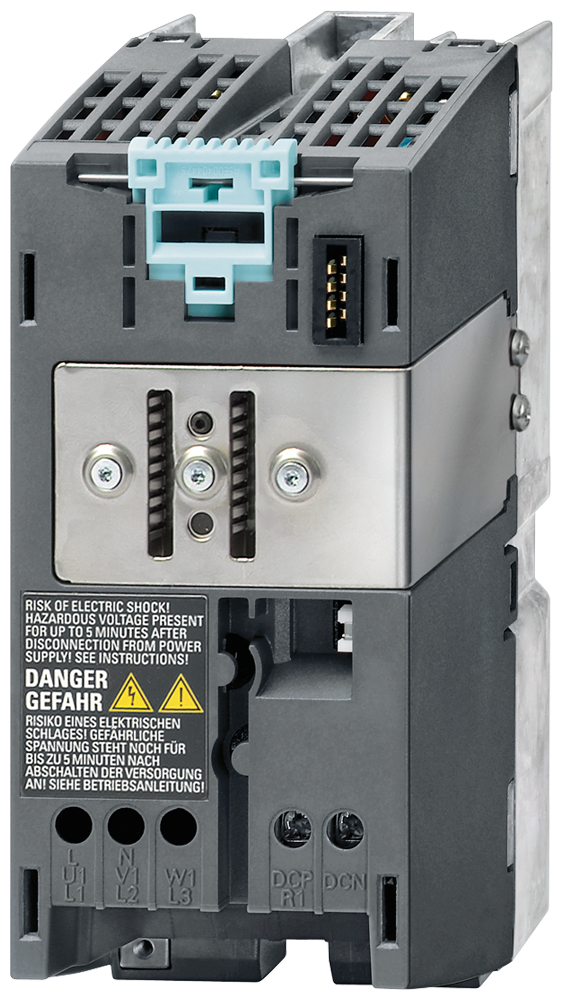

Siemens 6SL32101SE117UA0

Additional Product Information

• Commodity Code
  • 85044084
• Country of origin
  • Great Britain
• EAN
  • 4025515005483
• LKZ_FDB/ CatalogID
  • D21MC
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 9608
• Returnable
  • No
• RoHS Compliance
  • Since: 08/10/2009
• UPC
  • 662643258738

Delivery Information

• Export Control Regulations
  • AL : 9I999KP / ECCN : N
• Net Weight (lb)
  • 2.646 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • Not available
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece
• Standard lead time ex-works
  • 5 Day/Days

Specifications

• 1 m measuring surface sound pressure level maximum [dB]
  • 45
• Ambient temperature during operation maximum [°C]
  • 40
• Ambient temperature during operation minimum [°C]
  • 0
• Ambient temperature during storage maximum [°C]
  • 70
• Ambient temperature during storage minimum [°C]
  • -25
• Ambient temperature during transport maximum [°C]
  • 70
• Ambient temperature during transport minimum [°C]
  • -40
• Ambient temperature [°F] during operation maximum [°F]
  • 104
• Ambient temperature [°F] during operation minimum [°F]
  • 32
• Ambient temperature [°F] during storage maximum [°F]
  • 158
• Ambient temperature [°F] during storage minimum [°F]
  • -13
• Ambient temperature [°F] during transport maximum [°F]
  • 158
• Ambient temperature [°F] during transport minimum [°F]
  • -40
• AWG number as coded connectable conductor cross section for mains supply line maximum
  • 14
• AWG number as coded connectable conductor cross section for mains supply line minimum
  • 18
• AWG number as coded connectable conductor cross section for motor supply line maximum
  • 14
• AWG number as coded connectable conductor cross section for motor supply line minimum
  • 18
• AWG number as coded connectable conductor cross section for supply line of braking resistor maximum
  • 14
• AWG number as coded connectable conductor cross section for supply line of braking resistor minimum
  • 18
• Category acc. to EN ISO 13849-1
  • 3
• Certificate of suitability
  • cULus
• Certificate of suitability for CE marking
  • Low-voltage and EMC guideline
• Connectable conductor cross-section for mains supply line maximum [mm2]
  • 2.5
• Connectable conductor cross-section for mains supply line minimum [mm2]
  • 1
• Connectable conductor cross-section for motor supply line maximum [mm2]
  • 2.5
• Connectable conductor cross-section for motor supply line minimum [mm2]
  • 1
• Connectable conductor cross-section for supply line of braking resistor maximum [mm2]
  • 2.5
• Connectable conductor cross-section for supply line of braking resistor minimum [mm2]
  • 1
• Consumed current from supply voltage for Control Unit at DC at 24 V [A]
  • 1
• Cooling air flow [m3/s]
  • 0.005
• Degree of pollution
  • 2 according to EN 61800-5-1
• Depth [mm]
  • 145
• Design of the converter
  • FSA
• Displacement factor cos phi 1 minimum
  • 0.96
• Electrical input frequency maximum [Hz]
  • 63
• Electrical input frequency minimum [Hz]
  • 47
• Electrical output frequency for servo control maximum [Hz]
  • 330
• Electrical output frequency for servo control minimum [Hz]
  • 0
• Electrical resistance of the external braking resistor minimum [Ohm]
  • 390
• Height [mm]
  • 173
• Input current with line reactor rated value [A]
  • 1.7
• Input current without line reactor rated value [A]
  • 2.2
• Installation altitude at height above sea level without power reduction maximum [m]
  • 1000
• Net Weight in Kg
  • 1.2
• Net weight [kg]
  • 2.2
• Number of precharging operations of the DC link
  • 1
• Number of precharging operations of the DC link Note
  • every 30 sec
• Operating resource protection class acc. to EN 61800-5-1
  • Class I (with protective bonding circuit) and Class III (PELV)
• Order number
  • 6SL3210-1SE11-7UA0
• Output current for duty type S6-40% [A]
  • 2
• Output current rated value [A]
  • 1.7
• Output current rated value maximum [A]
  • 3.4
• Output current with high overload rated value [A]
  • 1.5
• Overvoltage category
  • Class III
• Performance level (PL) acc. to EN ISO 13849-1
  • d
• Phase number of the input voltage
  • 3
• Power factor maximum
  • 0.95
• Power factor minimum
  • 0.65
• Power loss [W] maximum [kW]
  • 0.1
• product brandname
  • Sinamics
• Product component Line filter
  • No
• Product designation
  • PM340
• Product type designation
  • S110/S120
• Protection class IP
  • IP20
• Pulse frequency rated value [kHz]
  • 4
• Relative humidity during transport maximum [%]
  • 95
• Relative humidity during transport maximum Note
  • at 40 °C (104 °F)
• Relative negative tolerance of the supply voltage [%]
  • -15
• Relative positive tolerance of the supply voltage [%]
  • 20
• Relative symmetrical tolerance of the mains voltage [%]
  • 10
• Safety Integrity Level (SIL) acc. to IEC 61508
  • SIL2
• Shock acceleration during operation acc. to EN 60068-2-27 [m/s2]
  • 147
• Shock acceleration during operation Note
  • (15 × g)/11 ms
• Shock acceleration during transport acc. to EN 60721-3-2 Note
  • Class 2M3
• Size of DC link voltage
  • 1.35 x line voltage
• Standard for EMC acc. to EN 61800-3
  • No radio interference suppression
• Supplied active power at rated value of output voltage [kW]
  • 0.55
• Supplied active power at rated value of output voltage with high overload [kW]
  • 0.55
• Supplied active power [hp] at rated value of output voltage [hp]
  • 0.75
• Supplied active power [hp] at rated value of output voltage with high overload [hp]
  • 0.5
• Supplier
  • Siemens AG
• Supply voltage at DC [V]
  • 24
• Supply voltage maximum [V]
  • 480
• Supply voltage minimum [V]
  • 380
• Touch protection acc. to EN 61800-5-1
  • DIN VDE 0106 Part 100 and BGV A3 for normal use
• Type of cooling
  • Increased air cooling due to built-in fan
• Type of electrical connection for mains supply line
  • screw-type terminal
• Type of electrical connection for PE conductor
  • M4 screw
• Type of electrical connection for supply line of braking resistor
  • screw-type terminal
• Type of electrical connection of the motor
  • Screw-type terminals
• Type of network configuration
  • Grounded TN/TT and ungrounded IT systems
• Type of voltage of the input voltage
  • AC
• Vibration frequency during transport acc. to EN 60721-3-2 Note
  • Class 2M3
• Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 maximum [Hz]
  • 150
• Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 maximum Note
  • constant acceleration = 9.81 m/s2 (1 × g)
• Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 minimum [Hz]
  • 58
• Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 maximum [Hz]
  • 58
• Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 maximum Note
  • constant deflection 0.075 mm
• Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 minimum [Hz]
  • 10
• Width [mm]
  • 73
• Wire length for braking resistor maximum [m]
  • 15
• Wire length for motor shielded maximum [m]
  • 50
• Wire length for motor unshielded maximum [m]
  • 75
