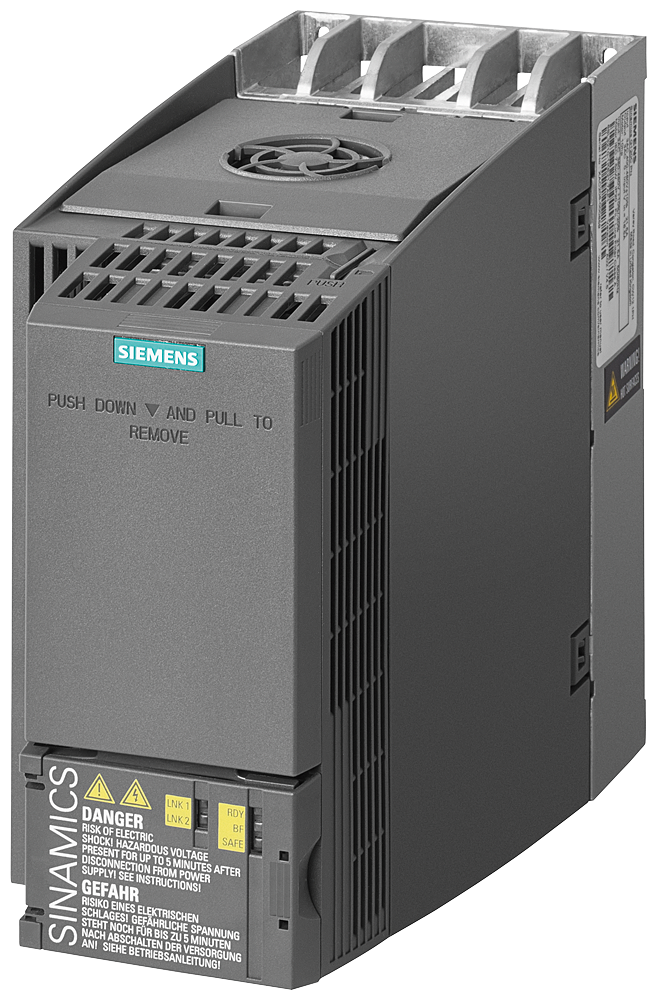

Siemens 6SL32101KE213AP1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SINAMICS g120c rated power 5,5KW with 150% overload for 3 sec 3AC380-480v +10/-20% 47-63HZ integrated filter class a i/o-interface 6di, 2do,1ai,1ao safe torque off integrated fieldbus PROFIBUS-dp protection IP20/ ul open type size fsb 196x100x203(hxwxd) external 24vSINAMICS G120C, 5.5KW, 480V, FSB
Siemens 6SL32101KE213AP1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 4-quadrant operation possible
- false
- Application in domestic- and commercial area permitted
- true
- Application in industrial area permitted
- true
- Country of Origin
- GB
- Degree of protection (IP)
- IP20
- Depth
- 203 mm
- Height
- 196 mm
- Integrated breaking resistance
- true
- Mains voltage
- 380 V
- Max. output at linear load at rated output voltage
- 4 kW
- Max. output at quadratic load at rated output voltage
- 5.5 kW
- Max. output frequency
- 550 Hz
- Max. output voltage
- 480 V
- Nominal output current I2N
- 13 A
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 0
- Number of HW-interfaces other
- 6
- Number of HW-interfaces parallel
- 0
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of interfaces PROFINET
- 0
- Number of phases input
- 3
- Number of phases output
- 3
- Relative symmetric net frequency tolerance
- 5 %
- Relative symmetric net voltage tolerance
- -20 %
- Supporting protocol for ASI
- false
- Supporting protocol for AS-Interface Safety at Work
- false
- Supporting protocol for BACnet
- false
- Supporting protocol for CAN
- false
- Supporting protocol for Data-Highway
- false
- Supporting protocol for DeviceNet
- false
- Supporting protocol for DeviceNet Safety
- false
- Supporting protocol for EtherNet/IP
- false
- Supporting protocol for Foundation Fieldbus
- false
- Supporting protocol for INTERBUS
- false
- Supporting protocol for INTERBUS-Safety
- false
- Supporting protocol for KNX
- false
- Supporting protocol for LON
- false
- Supporting protocol for MODBUS
- false
- Supporting protocol for other bus systems
- true
- Supporting protocol for PROFIBUS
- true
- Supporting protocol for PROFINET CBA
- false
- Supporting protocol for PROFINET IO
- false
- Supporting protocol for PROFIsafe
- false
- Supporting protocol for SafetyBUS p
- false
- Supporting protocol for SERCOS
- false
- Supporting protocol for SUCONET
- false
- Supporting protocol for TCP/IP
- false
- Type of converter
- U converter
- Width
- 100 mm
- With optical interface
- false
- With PC connection
- true
