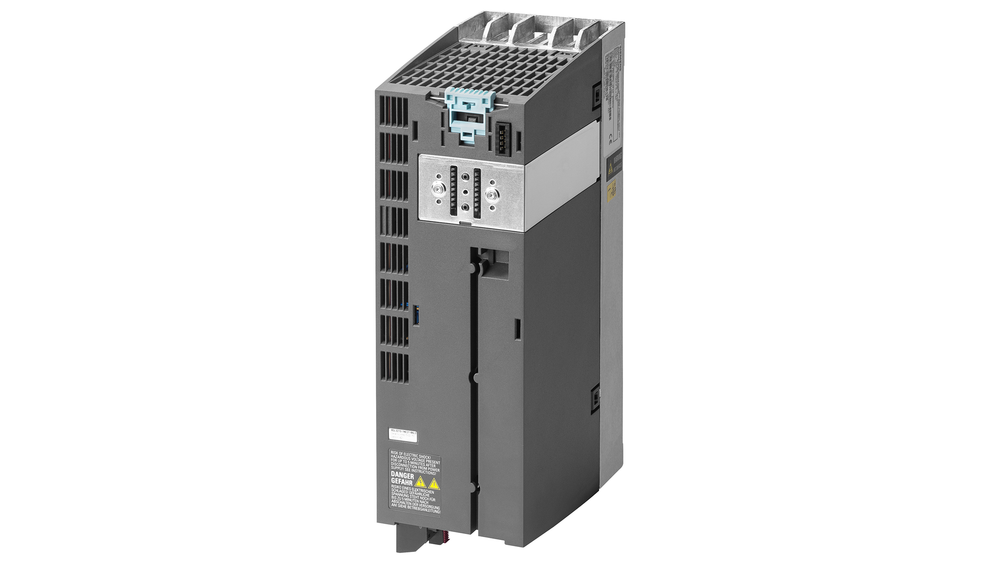

Siemens 6SL3210-1PE18-0UL1

Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Siemens 6SL3210-1PE18-0UL1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 85044084
- Country of origin
- Great Britain
- EAN
- 4042948666029
- LKZ_FDB/ CatalogID
- D11.1SD
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 9772
- Returnable
- Yes
- RoHS Compliance
- Since: 07/01/2006
- UPC
- 887621779900
Delivery Information
- Delivery Time
- 3 Day/Days
- Export Control Regulations
- AL : 9I999KP / ECCN : N
- Net Weight (lb)
- 3,042 lb
- Package size unit of measure
- in
- Packaging Dimension
- 10,63 x 3,15 x 7,48
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
Specifications
- 1 m measuring surface sound pressure level maximum [dB]
- 71.6
- Ambient temperature during operation acc. to EN 60721-3-3 Note
- Class 3K3, condensation, splashwater, and ice formation not permitted (EN 60204, Part 1)
- Ambient temperature during storage maximum [°C]
- 55
- Ambient temperature during storage minimum [°C]
- -25
- Ambient temperature during transport maximum [°C]
- 70
- Ambient temperature during transport minimum [°C]
- -40
- Ambient temperature [°F] during storage maximum [°F]
- 131
- Ambient temperature [°F] during storage maximum Note
- Class 1K3 acc. to EN 60721-3-1
- Ambient temperature [°F] during storage minimum [°F]
- -13
- Ambient temperature [°F] during transport maximum [°F]
- 158
- Ambient temperature [°F] during transport maximum Note
- Class 2K4 according to EN 60721-3-2
- Ambient temperature [°F] during transport minimum [°F]
- -40
- Ambient temperature [°F] with high overload during operation maximum [°F]
- 122
- Ambient temperature [°F] with high overload during operation minimum [°F]
- 23
- Ambient temperature [°F] with low overload during operation maximum [°F]
- 104
- Ambient temperature [°F] with low overload during operation minimum [°F]
- 23
- Ambient temperature with high overload during operation maximum [°C]
- 50
- Ambient temperature with high overload during operation minimum [°C]
- -5
- Ambient temperature with low overload during operation maximum [°C]
- 40
- Ambient temperature with low overload during operation minimum [°C]
- -5
- Apparent power output rated value [kVA]
- 5.3
- AWG number as coded connectable conductor cross section for mains supply line maximum
- 14
- AWG number as coded connectable conductor cross section for mains supply line minimum
- 16
- AWG number as coded connectable conductor cross section for motor supply line maximum
- 14
- AWG number as coded connectable conductor cross section for motor supply line minimum
- 16
- Brake version
- DC braking, compound braking, resistance braking with integrated brake chopper (for size FSGX optional)
- Certificate of suitability
- UL, cUL, CE, C-Tick (RCM), SEMI F47
- Certificate of suitability for CE marking
- Low-voltage directive 2006/95/EC
- Connectable conductor cross-section for mains supply line maximum [mm2]
- 2.5
- Connectable conductor cross-section for mains supply line minimum [mm2]
- 1.5
- Connectable conductor cross-section for motor supply line maximum [mm2]
- 2.5
- Connectable conductor cross-section for motor supply line minimum [mm2]
- 1.5
- Consumed current from supply voltage for Control Unit at DC at 24 V [A]
- 1
- Cooling air flow [m3/s]
- 0.005
- Degree of pollution
- 2 according to EN 61800-5-1
- Depth [mm]
- 165
- Design of the converter
- FSA
- Displacement factor cos phi 1
- 0.95
- Efficiency
- 0.96
- Electrical input frequency maximum [Hz]
- 63
- Electrical input frequency minimum [Hz]
- 47
- Electrical output frequency for U/f control maximum [Hz]
- 550
- Electrical output frequency for U/f control minimum [Hz]
- 0
- Electrical output frequency for vector control maximum [Hz]
- 200
- Electrical output frequency for vector control minimum [Hz]
- 0
- Electrical output frequency [Hz]
- 50
- Equipment marking acc. to DIN EN 81346-2
- Q
- Height [mm]
- 196
- IE class of the CDM
- IE2
- Input current with high overload rated value [A]
- 8.8
- Input current with low overload rated value [A]
- 10.1
- Installation altitude at height above sea level without power reduction maximum [m]
- 1000
- Installation environment regarding EMC environment A
- no
- Installation environment regarding EMC environment B
- no
- Mounting type Through-hole technology
- no
- Net weight [kg]
- 1.4
- Operating resource protection class acc. to EN 61800-5-1
- Class I (with protective bonding circuit) and Class III (PELV)
- Output current rated value maximum [A]
- 11.8
- Output current with high overload rated value [A]
- 5.9
- Output current with low overload rated value [A]
- 7.7
- Output current without overload rated value [A]
- 7.7
- Output voltage in percent related to the input voltage maximum [%]
- 95
- Output voltage in percent related to the input voltage minimum [%]
- 0
- Output voltage rated value [V]
- 400
- Phase number of the input voltage
- 3
- Phase number of the output voltage
- 3
- Power factor
- 0.85
- Power loss [W] maximum [kW]
- 0.12
- Power loss [W] of the CDM at the CDM operating point (0/100) [W]
- 85
- Power loss [W] of the CDM at the CDM operating point (0/25) [W]
- 57
- Power loss [W] of the CDM at the CDM operating point (0/50) [W]
- 65
- Power loss [W] of the CDM at the CDM operating point (50/100) [W]
- 96
- Power loss [W] of the CDM at the CDM operating point (50/25) [W]
- 59
- Power loss [W] of the CDM at the CDM operating point (50/50) [W]
- 69
- Power loss [W] of the CDM at the CDM operating point (90/100) [W]
- 113
- Power loss [W] of the CDM at the CDM operating point (90/50) [W]
- 76
- Power loss [W] of the CDM in standby mode [W]
- 12
- product brand name
- SINAMICS
- Product component Brake chopper
- yes
- Product component Line filter
- no
- Product designation
- PM240-2
- Product function 4 quadrant operation
- no
- Product type designation
- G120
- Protection class IP
- IP20
- Protection function for converter Temperature monitoring
- yes
- Protection function for motor Temperature monitoring
- yes
- Protection function Ground fault protection
- yes
- Protection function Overload protection
- yes
- Protection function Overvoltage protection
- yes
- Protection function parameter lock
- yes
- Protection function Short-circuit protection
- yes
- Protection function Stall protection
- yes
- Protection function undervoltage protection
- yes
- Protection function with blocked rotor
- yes
- Pulse frequency rated value [kHz]
- 4
- Ratio of converter losses/reference converter losses at the CDM operating point (90/100)
- 68.6
- Relative humidity without condensation during operation maximum [%]
- 95
- Relative humidity without condensation during operation maximum Note
- RH, condensation not permitted
- Relative negative tolerance for line voltage [%]
- -10
- Relative negative tolerance of line frequency [%]
- 5
- Relative positive tolerance for line voltage [%]
- 10
- Relative positive tolerance of line frequency [%]
- 5
- Relative power loss [W] of the CDM at the CDM operating point (0/100) [%]
- 1.6
- Relative power loss [W] of the CDM at the CDM operating point (0/25) [%]
- 1.06
- Relative power loss [W] of the CDM at the CDM operating point (0/50) [%]
- 1.21
- Relative power loss [W] of the CDM at the CDM operating point (50/100) [%]
- 1.8
- Relative power loss [W] of the CDM at the CDM operating point (50/25) [%]
- 1.1
- Relative power loss [W] of the CDM at the CDM operating point (50/50) [%]
- 1.3
- Relative power loss [W] of the CDM at the CDM operating point (90/100) [%]
- 2.11
- Relative power loss [W] of the CDM at the CDM operating point (90/50) [%]
- 1.42
- Resistance to biologically active substances during operation
- Class 3B1 according to EN 60721-3-3
- Resistance to biologically active substances during storage
- Class 1B1 according to EN 60721-3-1
- Resistance to biologically active substances during transport
- Class 2B1 to EN 60721‑3‑2
- Resistance to chemically active substances during operation
- Class 3C2 according to EN 60721-3-3
- Resistance to chemically active substances during storage
- Class 1C2 according to EN 60721-3-1
- Resistance to chemically active substances during transport
- Class 2C2 according to EN 60721-3-3
- Shock acceleration during operation acc. to EN 60068-2-27 [m/s2]
- 147
- Shock acceleration during operation Note
- (15 × g)/11 ms
- Shock acceleration during transport acc. to EN 60721-3-2 Note
- Class 2M3
- Short-time withstand current (SCCR) of the entire control cabinet acc. to UL 508A [kA]
- 65
- Standard for EMC acc. to EN 61800-3
- The EMC product standard EN 61800-3 does not apply directly to a frequency inverter but to a PDS (Power Drive System), which comprises the complete circuitry, motor and cables in addition to the inverter.
- Supplied active power at rated value of output voltage with high overload [kW]
- 2.2
- Supplied active power at rated value of output voltage with low overload [kW]
- 3
- Supplied active power [hp] at rated value of output voltage with high overload [hp]
- 3
- Supplied active power [hp] at rated value of output voltage with low overload [hp]
- 4
- Supply requirements for short circuit voltage
- u K < 1 % line reactor recommended
- Supply voltage maximum [V]
- 480
- Supply voltage minimum [V]
- 380
- Touch protection acc. to EN 61800-5-1
- Assuming use as prescribed
- Type of converter
- U converter
- Type of cooling
- Internal air cooling
- Type of cooling Note
- Power units with intensified air cooling thanks to integrated fan
- Type of duty cycle duration with high overload
- 1.5 × output current rating (i.e., 150 % overload) for 57 s with a cycle time of 300 s 2 × output current rating (i.e., 200 % overload) for 3 s with a cycle time of 300 s
- Type of duty cycle duration with low overload
- 1.1 x rated output current (i.e. 110 % overload) for 57 s with a cycle time of 300 s 1.5 × rated output current (i.e. 150 % overload) for 3 s with a cycle time of 300 s
- Type of electrical connection for mains supply line
- Plug-in screw terminals
- Type of electrical connection for PE conductor
- Plug-in screw terminals
- Type of electrical connection of the motor
- Plug-in screw terminals
- Type of voltage of the input voltage
- AC
- Type of voltage of the output voltage
- AC
- Vibration frequency during transport acc. to EN 60721-3-2 Note
- Class 2M3
- Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 maximum [Hz]
- 200
- Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 maximum Note
- constant acceleration = 9.81 m/s2 (1 × g)
- Vibration frequency with constant acceleration during operation acc. to EN 60068-2-6 minimum [Hz]
- 58
- Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 maximum [Hz]
- 58
- Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 maximum Note
- constant deflection 0.075 mm
- Vibration frequency with constant deflection during operation acc. to EN 60068-2-6 minimum [Hz]
- 10
- Width [mm]
- 73
- Wire length for motor shielded maximum [m]
- 50
- Wire length for motor unshielded maximum [m]
- 100
Reviews
What our customers say
Rating
