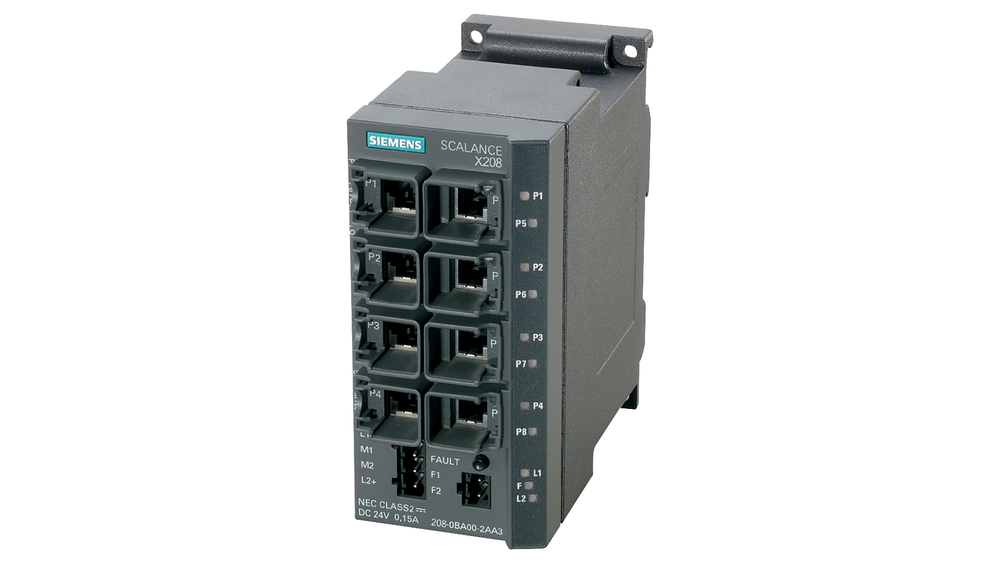

Siemens 6GK5208-0BA10-2AA3

Additional Product Information

• Commodity Code
  • 85176200
• Country of origin
  • Germany
• EAN
  • 4019169141505
• LKZ_FDB/ CatalogID
  • IK
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 2424
• Returnable
  • Yes
• RoHS Compliance
  • Given
• UPC
  • 662643299250

Delivery Information

• Delivery Time
  • 1 Day/Days
• Export Control Regulations
  • AL : 5D002A2H / ECCN : 5D002ENCB4
• Net Weight (lb)
  • 2,299 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 7,48 x 9,921 x 5,591
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• Ambient temperature during operation maximum [°C]
  • 60
• Ambient temperature during operation minimum [°C]
  • -40
• Ambient temperature during storage maximum [°C]
  • 70
• Ambient temperature during storage minimum [°C]
  • -40
• Ambient temperature during transport maximum [°C]
  • 70
• Ambient temperature during transport minimum [°C]
  • -40
• Cascading in cases of star topology
  • any (depending only on signal propagation time)
• Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s
  • 100
• Certificate of suitability
  • EN 61000-6-2, EN 61000-6-4
• Certificate of suitability CE marking
  • yes
• Certificate of suitability C-Tick
  • yes
• Certificate of suitability KC approval
  • yes
• Certificate of suitability Railway application in accordance with EN 50124-1
  • no
• Certificate of suitability Railway application in accordance with EN 50155
  • no
• Consumed current maximum [A]
  • 0.185
• Depth [mm]
  • 124
• Design
  • compact
• Design of the interface 10 Gigabit Ethernet interface
  • no
• Design of the interface Ethernet interface
  • yes
• Design of the interface Fast Ethernet interface
  • yes
• Design of the interface Gigabit Ethernet interface
  • no
• design of the removable storage C-PLUG
  • yes
• Fuse protection type at input for supply voltage
  • 0.6 A / 60 V
• Height [mm]
  • 125
• Identification & maintenance function I&M0 - device-specific information
  • yes
• Identification & maintenance function I&M1 – higher-level designation/location designation
  • yes
• Internet-Link to website: CAx Download Manager
  • http://www.siemens.com/cax
• Internet-Link to website: Image database
  • http://automation.siemens.com/bilddb
• Internet-Link to website: Industrial communication
  • http://www.siemens.com/simatic-net
• Internet-Link to website: Industry Mall
  • https://mall.industry.siemens.com
• Internet-Link to website: Industry Online Support
  • https://support.industry.siemens.com
• Internet-Link to website: Information and Download Center
  • http://www.siemens.com/industry/infocenter
• Internet-Link to website: Selector SIMATIC NET SELECTION TOOL
  • http://www.siemens.com/snst
• Marine classification association American Bureau of Shipping Europe Ltd. (ABS)
  • yes
• Marine classification association Bureau Veritas (BV)
  • yes
• Marine classification association Det Norske Veritas (DNV)
  • yes
• Marine classification association Germanische Lloyd (GL)
  • yes
• Marine classification association Lloyds Register of Shipping (LRS)
  • yes
• Marine classification association Nippon Kaiji Kyokai (NK)
  • yes
• Marine classification association Polski Rejestr Statkow (PRS)
  • yes
• Marine classification association Royal Institution of Naval Architects (RINA)
  • no
• Mounting type 35 mm DIN rail mounting
  • yes
• Mounting type S7-1500 rail mounting
  • no
• Mounting type S7-300 rail mounting
  • yes
• Mounting type wall mounting
  • yes
• MTBF [a]
  • 83.71
• MTBF at 40 °C [a]
  • 83.71
• Net weight [kg]
  • 0.78
• Number of 1000 Mbit/s GBIC ports
  • 0
• Number of 1000 Mbit/s LC ports for multimode Integrated
  • 0
• Number of 1000 Mbit/s LC ports for single mode (LD) Integrated
  • 0
• Number of 1000 Mbit/s mini GBIC ports
  • 0
• Number of 1000 Mbit/s MT-RJ ports
  • 0
• Number of 1000 Mbit/s RJ45 ports
  • 0
• Number of 1000 Mbit/s SC ports (LX)
  • 0
• Number of 1000 Mbit/s SC ports (SX)
  • 0
• Number of 1000 Mbit/s VF-45 ports
  • 0
• Number of 100/1000 Mbit/s RJ45 ports
  • 0
• Number of 100 Mbit/s MT-RJ ports
  • 0
• Number of 100 Mbit/s SC ports for multimode Integrated
  • 0
• Number of 100 Mbit/s VF-45 ports
  • 0
• Number of 10/100/1000 Mbit/s RJ45 ports
  • 0
• Number of 10/100 Mbit/s M12 ports
  • 0
• Number of 10/100 Mbit/s RJ45 ports
  • 8
• Number of 10 Gbit/s LC ports (LX)
  • 0
• Number of 10 Gbit/s LC ports (SX)
  • 0
• Number of 10 Gbit/s SC ports (LR)
  • 0
• Number of 10 Gbit/s SC ports (SR)
  • 0
• Number of 10 Mbit/s RJ45 ports
  • 0
• Number of 10 Mbit/s SC ports
  • 0
• Number of 10 Mbit/s ST(BFOC) ports
  • 0
• Number of combo ports with RJ45/Mini GBIC
  • 0
• Number of delivery units
  • 1
• Number of electrical connections for network components or terminal equipment
  • 8
• Number of electrical connections for power supply
  • 1
• Number of electrical connections for redundant voltage supply
  • 1
• Number of electrical connections for signaling contact
  • 1
• Number of electrical/optical connections for network components or terminal equipment maximum
  • 8
• Number of other ports
  • 0
• Number of slots for modules
  • 0
• Operating current of the signaling contacts at DC maximum [A]
  • 0.1
• Operating voltage of the signaling contacts at DC Rated value [V]
  • 24
• Power loss [W] at DC at 24 V [W]
  • 3.84
• Product component fusing at power supply input
  • yes
• Product feature device in control circuit
  • yes
• Product feature device in main circuit
  • no
• Product function CLI
  • yes
• Product function Configuration with STEP 7
  • yes
• Product function DHCP client
  • yes
• Product function Error statistics
  • yes
• Product function High Speed Redundancy Protocol (HRP)
  • yes
• Product function high speed redundancy protocol (HRP) with redundancy manager
  • yes
• Product function high speed redundancy protocol (HRP) with standby redundancy
  • no
• Product function media redundancy protocol (MRP) with redundancy manager
  • yes
• Product function MIB support
  • yes
• Product function multiport mirroring
  • no
• Product function Parallel Redundancy Protocol (PRP)/operation in the PRP-network
  • yes
• Product function Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)
  • no
• Product function Passive listening
  • yes
• Product function Port diagnostics
  • yes
• Product function Port mirroring
  • yes
• Product function Power over Ethernet
  • no
• Product function PROFINET IO diagnosis
  • yes
• Product function Redundancy manager
  • yes
• Product function Ring redundancy
  • yes
• Product function SICLOCK support
  • yes
• Product function Standby redundancy
  • no
• Product function Statistics Packet Size
  • yes
• Product function Statistics packet type
  • yes
• Product function switch-managed
  • yes
• Product function TRAPs via email
  • yes
• Product function web-based management
  • yes
• Product function with IRT PROFINET IO switch
  • no
• Product type designation
  • SCALANCE X208
• Protection class IP
  • IP30
• Protocol is supported BOOTP
  • no
• Protocol is supported DCP
  • yes
• Protocol is supported FTP
  • yes
• Protocol is supported HTTP
  • yes
• Protocol is supported HTTPS
  • yes
• Protocol is supported LLDP
  • yes
• Protocol is supported Media Redundancy Protocol (MRP)
  • yes
• Protocol is supported NTP
  • no
• Protocol is supported SNMP v1
  • yes
• Protocol is supported SNMP v2
  • yes
• Protocol is supported SNMP v3
  • yes
• Protocol is supported SNTP
  • yes
• Protocol is supported SSH
  • yes
• Protocol is supported Telnet
  • yes
• Protocol is supported TFTP
  • yes
• Relative humidity at 25 °C without condensation during operation maximum [%]
  • 95
• Security information
  • Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
• Standard for emitted interference
  • EN 61000-6-4 (Class A)
• Standard for FM
  • FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
• Standard for hazardous zone
  • EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
• Standard for hazardous zone from CSA and UL
  • ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4
• Standard for interference immunity
  • EN 61000-6-2
• Standard for safety from CSA and UL
  • UL 60950-1, CSA C22.2 No. 60950-1
• Supply voltage external maximum [V]
  • 32
• Supply voltage external minimum [V]
  • 18
• Supply voltage external [V]
  • 24
• Transfer rate 1 [Mbit/s]
  • 10
• Transfer rate 2 [Mbit/s]
  • 100
• Type of electrical connection for network components or terminal equipment
  • RJ45 port
• Type of electrical connection for power supply
  • 4-pole terminal block
• Type of electrical connection for signaling contact
  • 2-pole terminal block
• Type of switches Layer-2 switch
  • yes
• Type of switches Layer-3 switch
  • no
• Type of switches Layer-4 switch
  • no
• Type of switches Layer-7 switch
  • no
• Type of voltage of the supply voltage
  • DC
• Width [mm]
  • 60
