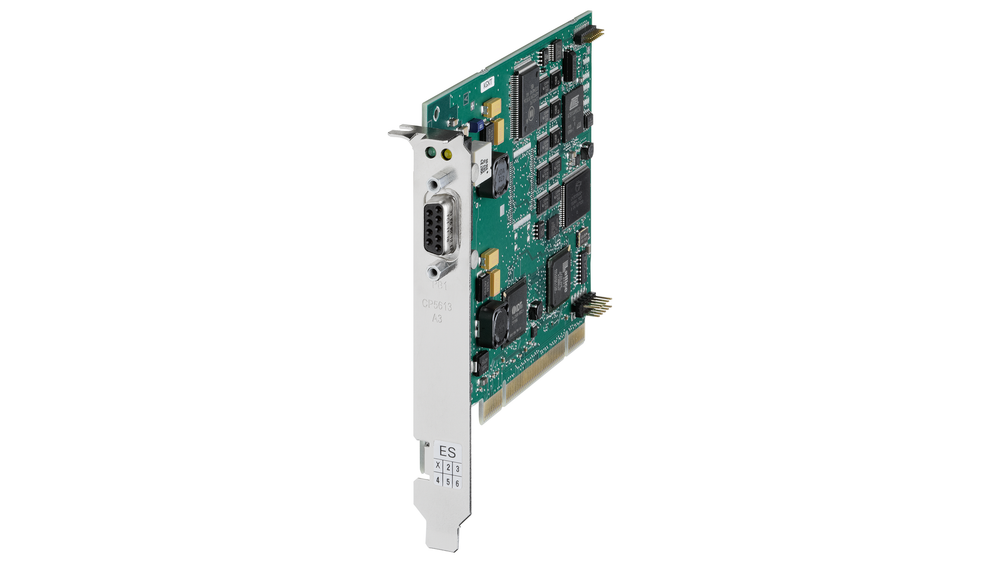

Siemens 6GK1561-3AA02

Additional Product Information

• Commodity Code
  • 85176200
• Country of origin
  • Germany
• EAN
  • 4019169252485
• LKZ_FDB/ CatalogID
  • IK
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 2445
• Returnable
  • Yes
• RoHS Compliance
  • Given
• UPC
  • 887621498320

Delivery Information

• Delivery Time
  • 1 Day/Days
• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 0,961 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 0,039 x 0,039 x 0,039
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• Ambient temperature during operation maximum [°C]
  • 55
• Ambient temperature during operation minimum [°C]
  • 5
• Ambient temperature during storage maximum [°C]
  • 60
• Ambient temperature during storage minimum [°C]
  • -20
• Ambient temperature during transport maximum [°C]
  • 60
• Ambient temperature during transport minimum [°C]
  • -20
• Amount of data of the address area of the diagnostic data per DP slave [byte]
  • 244
• Amount of data of the address area of the inputs as DP master total [byte]
  • 30256
• Amount of data of the address area of the inputs as DP slave total [byte]
  • 244
• Amount of data of the address area of the inputs per DP slave [byte]
  • 244
• Amount of data of the address area of the outputs as DP master total [byte]
  • 30256
• Amount of data of the address area of the outputs as DP slave total [byte]
  • 244
• Amount of data of the address area of the outputs per DP slave [byte]
  • 244
• Certificate of suitability CE marking
  • yes
• Certificate of suitability C-Tick
  • yes
• Configuration software required
  • Included in scope of supply
• Consumed current 1 from backplane bus at DC maximum [A]
  • 0.15
• Consumed current 2 from backplane bus at DC maximum [A]
  • 0.25
• Depth [mm]
  • 125
• Design of the interface 10 Gigabit Ethernet interface
  • no
• Design of the interface Ethernet interface
  • no
• Design of the interface Fast Ethernet interface
  • no
• Design of the interface Gigabit Ethernet interface
  • no
• Height [mm]
  • 107
• Internet-Link to website: CAx Download Manager
  • http://www.siemens.com/cax
• Internet-Link to website: Image database
  • http://automation.siemens.com/bilddb
• Internet-Link to website: Industrial communication
  • http://www.siemens.com/simatic-net
• Internet-Link to website: Industry Mall
  • http://www.siemens.com/industrial-controls/mall
• Internet-Link to website: Industry Online Support
  • https://support.industry.siemens.com
• Internet-Link to website: Information and Download Center
  • http://www.siemens.com/industry/infocenter
• Internet-Link to website: Selector SIMATIC NET SELECTION TOOL
  • http://www.siemens.com/snst
• Module format
  • PCI
• Net weight [kg]
  • 0.098
• Number of 1000 Mbit/s MT-RJ ports
  • 0
• Number of 1000 Mbit/s SC ports (LX)
  • 0
• Number of 1000 Mbit/s SC ports (SX)
  • 0
• Number of 1000 Mbit/s VF-45 ports
  • 0
• Number of 100/1000 Mbit/s RJ45 ports
  • 0
• Number of 100 Mbit/s MT-RJ ports
  • 0
• Number of 100 Mbit/s SC ports for multimode Integrated
  • 0
• Number of 100 Mbit/s VF-45 ports
  • 0
• Number of 10/100/1000 Mbit/s RJ45 ports
  • 0
• Number of 10/100 Mbit/s RJ45 ports
  • 0
• Number of 10 Gbit/s SC ports (SR)
  • 0
• Number of 10 Mbit/s AUI ports
  • 0
• Number of 10 Mbit/s BNC ports
  • 0
• Number of 10 Mbit/s RJ45 ports
  • 0
• Number of 10 Mbit/s SC ports
  • 0
• Number of 10 Mbit/s ST(BFOC) ports
  • 0
• Number of active connections with multi-protocol mode
  • 50
• Number of configurable connections per PC station
  • 207
• Number of DP slaves on DP master usable
  • 124
• Number of electrical connections at the 1st interface acc. to PROFIBUS
  • 1
• Number of other ports
  • 1
• Number of plug-in cards of same design plug-in per PC station
  • 4
• Number of possible connections for open communication by means of SEND/RECEIVE maximum
  • 80
• Number of possible connections for S7/PG communication maximum
  • 50
• Power loss [W] [W]
  • 3.5
• Product feature device in control circuit
  • yes
• Product feature device in main circuit
  • no
• Product function Port diagnostics
  • yes
• Product type designation
  • CP 5613 A3
• Protection class IP
  • IP00
• Relative humidity at 25 °C without condensation during operation maximum [%]
  • 85
• Relative symmetrical tolerance at DC at 12 V [%]
  • 8
• Relative symmetrical tolerance at DC at 3.3 V [%]
  • 9
• Security information
  • Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
• Service as DP master DPV0
  • yes
• Service as DP master DPV1
  • yes
• Service as DP master DPV2
  • yes
• Service as DP slave DPV0
  • yes
• Service as DP slave DPV1
  • yes
• Software for DP master function required
  • No
• Software for DP slave function required
  • No
• Software for open communication by means of SEND/RECEIVE required
  • FDL driver included in scope of delivery of the CP
• Software for S7 communication required
  • Yes, HARDNET-PB S7 (S7-5613)
• Standard for EMC
  • 89/336/EEC
• Standard for emitted interference
  • EN 61000-6-3
• Standard for interference immunity
  • EN 61000-6-2
• Standard for safety from CSA and UL
  • CAN/CSA C22.2 & UL 60950-1, UL 1950
• Supply voltage 1 from backplane bus [V]
  • 3.3
• Supply voltage 2 from backplane bus [V]
  • 12
• Transfer rate at the 1st interface acc. to PROFIBUS maximum [Mbit/s]
  • 12
• Transfer rate at the 1st interface acc. to PROFIBUS minimum [kbit/s]
  • 9.6
• Type of electrical connection at the 1st interface acc. to PROFIBUS
  • 9-pin Sub-D socket (RS 485)
• Type of voltage of the supply voltage
  • DC
• Width [mm]
  • 18
