Siemens 6FX80025CG011AG0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

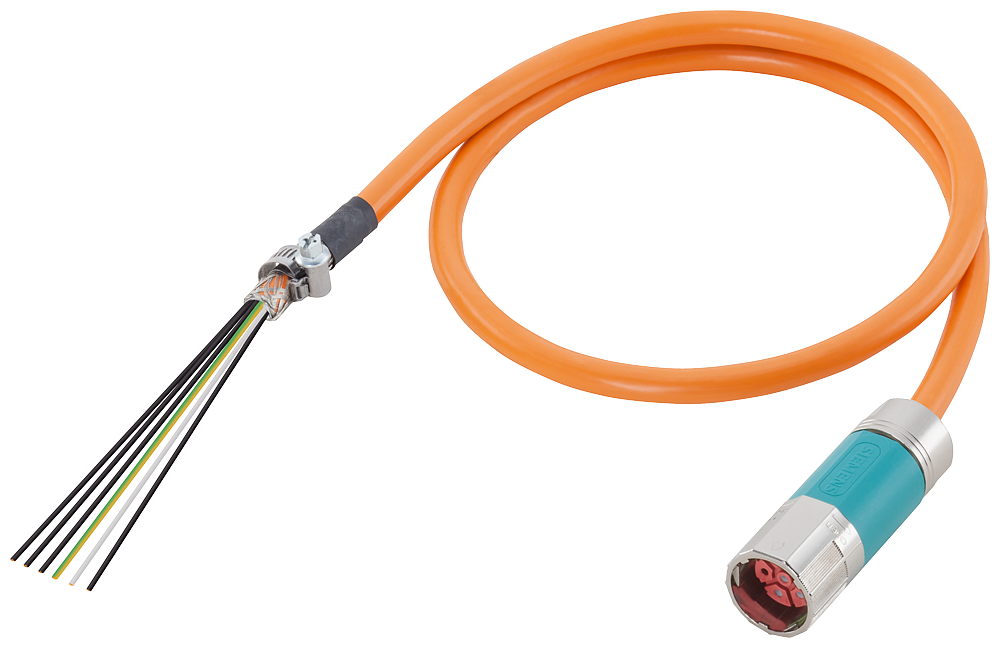

Power Cable Pre-assembled Type: 6FX8002-5CG01 4 X 1.5 C, Connector Full Thread Size 1 for Sinamics S120 Power Module Motion-connect 800plus Trailing Type, UL/CSA DESINA DMAX = 9.5 MM, Length (M) = 0 + 0 + 6 + 0
Siemens 6FX80025CG011AG0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 85444290
- Country of origin
- Slovakia
- EAN
- Not available
- LKZ_FDB/ CatalogID
- NCZ-M
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 9300
- Returnable
- No
- RoHS Compliance
- Since: 12/31/2006
- UPC
- 662643417722
Delivery Information
- Export Control Regulations
- AL : N / ECCN : N
- Net Weight (lb)
- 2.811 lb
- Package size unit of measure
- in
- Packaging Dimension
- Not available
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
- Standard lead time ex-works
- 5 Day/Days
Specifications
- Acceleration horizontal [m/s2]
- 2
- Ambient temperature for permanently laid cable maximum permissible [°C]
- 80
- Ambient temperature for permanently laid cable minimum permissible [°C]
- -20
- Ambient temperature with moving cable maximum permissible [°C]
- 60
- Ambient temperature with moving cable minimum permissible [°C]
- 0
- Bending radius for permanently laid cable minimum permissible Note
- 5 x Cable outer diameter
- Bending radius minimum permissible [mm]
- 75
- Certificate of suitability acc. to CSA and cUR File No. 2
- Yes
- Certificate of suitability acc. to VDE 1
- Yes
- Certificate of suitability as approval for Canada
- CSA-C22.2-N.210.2-M90
- Certificate of suitability as approval for USA
- UL758
- Certificate of suitability RoHS conformity
- Yes
- Design of the connecting cable on the converter side
- Open end of lead
- Design of the connecting cable on the motor side
- full thread
- Design of the thread of cable screw connection
- without
- Length [m]
- 6
- Material of cable sheath
- PVC DESINA color orange RAL 2003
- Net Weight in Kg
- 1.275
- Number of bending cycles
- 100000
- Order number
- 6FX8002-5CG01-1AG0
- Outer diameter of cable sheath maximum [mm]
- 9.5
- Property of the cable oil resistance acc. to EN 60811-2-1
- Yes
- Property of the cable oil resistance acc. to EN 60811-2-1 Note
- EN 60811-2-1 (mineral oil only)
- Ratio of cable testing voltages relating to supply cores acc. to EN 50395
- 600 V/1000 V
- Size of connector at the connection for motor
- 1
- Standard for behavior in fire: flame resistance
- EN 60332-1-1 to 1-3
- Supplier
- Siemens AG
- Tensile load for permanently laid cable maximum permissible Note
- 50 N/mm² (7252 lbf/in²)
- Tensile load with moving cable maximum permissible Note
- 20 N/mm² (2901 lbf/in²)
- Test voltage relating to brake cores RMS value [kV]
- 2
- Test voltage relating to supply cores RMS value [kV]
- 4
- Torsion loading Note
- Absolute 30°/m
- Traversing velocity [m/min]
- 30
- Type of connectable conductor cross-sections
- basis cable
- Type of connectable conductor cross-sections of brake cores
- No
- Type of insulation
- CFC/silicone-free
- Weight per length [kg/m]
- 0.15
