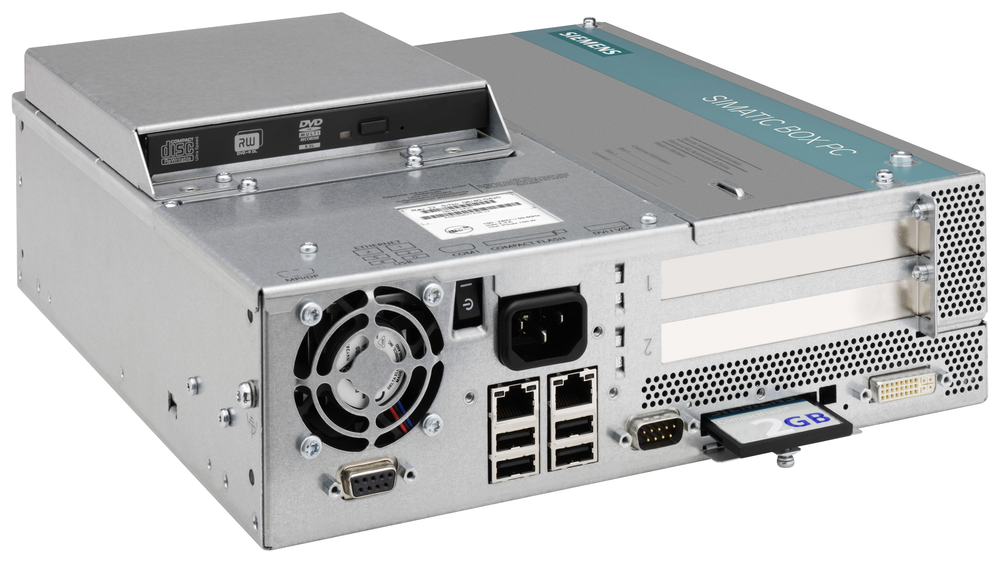

Siemens 6ES7647-6CE66-0GB1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIMATIC IPC627C (BOX PC), HD GRAFIK ONBOARD, 2X10/100/1000 MBIT/S ETHERNET RJ45; 4 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); RAID-CONTROLLER ON BOARD; COMPACT FLASH DRIVE NR.1 FRONT FRONT SIDE; WATCHDOG, TEMP.-/FAN- MONITORING;
Siemens 6ES7647-6CE66-0GB1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 84715000
- Country of origin
- Germany
- EAN
- Not available
- LKZ_FDB/ CatalogID
- IC10
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 3358
- Returnable
- No
- RoHS Compliance
- Since: 04/01/2010
- UPC
- 887621411756
Delivery Information
- Delivery Time
- 15 Day/Days
- Export Control Regulations
- AL : N / ECCN : 5D992
- Net Weight (lb)
- 13,999 lb
- Package size unit of measure
- in
- Packaging Dimension
- Not available
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
Specifications
- Ambient temperature during operation maximum [°C]
- 55
- Ambient temperature during operation minimum [°C]
- 5
- Ambient temperature during storage and transport maximum [°C]
- 60
- Ambient temperature during storage and transport minimum [°C]
- -20
- assembly
- Wall mounting, portrait mounting
- Buffering time in the event of power failure [ms]
- 20
- Certificate of suitability CE marking
- yes
- Certificate of suitability C-Tick
- yes
- Certificate of suitability cULus approval
- yes
- Certificate of suitability GL approval
- yes
- Certificate of suitability KC approval
- yes
- Certificate of suitability UL 508
- yes
- Certificate of suitability UL approval
- yes
- Depth [mm]
- 301
- Depth Note
- incl. mounting rail
- Design of the drive/storage medium Integrated DVD-RW
- yes
- Design of the drive/storage medium Integrated DVD-RW Note
- Optional
- Design of the drive/storage medium Solid-state disk
- yes
- Design of the drive/storage medium Solid-state disk Note
- ≥ 240 GB optional
- design of the graphic controller
- Intel HD graphics controller
- Design of the interface Fast Ethernet interface
- yes
- Design of the interface Gigabit Ethernet interface
- yes
- Design of the processor
- Core i7-610E (2C/4T, 2.53 GHz, TB, HT, VT, AMT, 4MB cache); Core i3-330E (2C/4T, 2.13 GHz, HT, VT, 3MB cache); Celeron P4505 (2C/2T, 1.86 GHz, VT, 2MB cache);
- Diagnostics function Diagnostics via bus
- yes
- Eignungsnachweis FCC
- yes
- Equipment marking acc. to DIN EN 81346-2
- K
- Height [mm]
- 80
- Height Note
- with DVD drive: 100 mm
- Marine classification association American Bureau of Shipping Europe Ltd. (ABS)
- yes
- Marine classification association Bureau Veritas (BV)
- yes
- Marine classification association Det Norske Veritas (DNV)
- yes
- Marine classification association Lloyds Register of Shipping (LRS)
- yes
- Marine classification association Nippon Kaiji Kyokai (NK)
- yes
- Number of interfaces acc. to Industrial Ethernet
- 2
- Number of interfaces acc. to Industrial Ethernet Note
- onboard
- Number of interfaces acc. to PROFINET
- 3
- Number of interfaces acc. to PROFINET Note
- Optional
- Number of interfaces acc. to RS 232
- 1
- Number of slots acc. to PCI
- 2
- Operating system pre-installed
- Yes
- Operating system pre-installed Windows 7
- yes
- Operating system pre-installed Windows 7 Note
- Ultimate 32 bits or 64 bits
- Operating system pre-installed Windows XP Professional
- yes
- product brand name
- SIMATIC
- Product category
- Box PC
- Product component DVD-RW
- yes
- Product component Operating system embedded Windows XP
- yes
- Product component without operating system
- yes
- Product family
- IPC627
- Product function customer-specific configuration
- yes
- Product function fan monitoring
- yes
- Product type designation of the chip set Integrated
- Intel QM57 Express Chipset
- Protection class IP
- IP20
- Protection class IP on the front
- IP20
- Protection class IP Rear side
- IP20
- Protocol is supported PROFIBUS protocol
- yes
- Storage capacity of the main memory or RAM maximum [Mbyte]
- 8000
- Supply voltage frequency Rated value 50 Hz
- yes
- Supply voltage frequency Rated value 60 Hz
- yes
- Type of graphic standard
- DVI-I: VGA / DVI combined
- Type of hard disk drive
- 3.5" SATA ≥ 250 GB, optional ≥ 500 GB; RAID1 2x 2.5" SATA ≥ 320 GB; all internal drives are vibration-damped
- Type of memory
- DDR3 1066 DIMM
- Type of monitoring via network
- Optional
- type of the fitting/ mount/ assembly
- Box PC, built-in unit
- Type of voltage
- AC, optional DC
- Type of voltage of the supply voltage
- 100/240 V AC (autorange); 24 V DC
- Width [mm]
- 312
