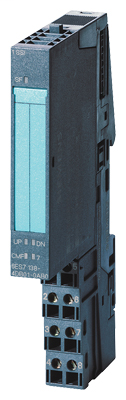

Siemens 6ES7138-4DF01-0AB0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIMATIC DP, ELECTRONIC MODULE FOR ET 200S, 1 SI SERIAL INTERFACE ONE CHANNEL, 15MM WIDE RS232/422, 485 ASCII, 3964R
Siemens 6ES7138-4DF01-0AB0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 85389091
- Country of origin
- Germany
- EAN
- 4025515072034
- LKZ_FDB/ CatalogID
- ST76
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 4056
- Returnable
- Yes
- RoHS Compliance
- Since: 12/31/2008
- UPC
- 662643230369
Delivery Information
- Delivery Time
- 1 Day/Days
- Export Control Regulations
- AL : N / ECCN : N
- Net Weight (lb)
- 0,099 lb
- Package size unit of measure
- in
- Packaging Dimension
- 2,48 x 3,543 x 0,906
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
Specifications
- Ambient temperature during operation maximum [°C]
- 60
- Ambient temperature during operation minimum [°C]
- 0
- Ambient temperature during storage and transport maximum [°C]
- 70
- Ambient temperature during storage and transport minimum [°C]
- -40
- Consumed current from backplane bus at DC at 3.3 V maximum [mA]
- 10
- Consumed current from supply voltage L+ maximum [mA]
- 120
- Depth [mm]
- 52
- Display version for diagnostic function: group error SF LED red
- yes
- Display version for diagnostic function: received RxD LED green
- yes
- Display version for diagnostic function: send TxD LED green
- yes
- Equipment marking acc. to DIN EN 81346-2
- K
- Explosion protection category for dust
- No
- Explosion protection category for gas
- ATEX II 3 G Ex nA II T4 ... T6
- Explosion protection marking for intrinsic safety of related equipment EEx ia
- no
- Explosion protection marking for intrinsic safety of related equipment EEx ib
- no
- Galvanic isolation at the interface between RS 232 and internal power supply
- yes
- Galvanic isolation at the interface between RS 422/485 and internal power supply
- yes
- Height [mm]
- 81
- Mounting type front mounting
- yes
- Mounting type rack mounting
- no
- Mounting type rail mounting
- yes
- Mounting type wall mounting
- yes
- Number of interfaces
- 1
- Power loss [W] typical [mW]
- 1200
- product brand name
- SIMATIC DP
- Product category
- Technology module
- Product extension required separate bus coupler for fieldbus connection
- no
- Product family
- ET 200S
- Product function Galvanic isolation
- yes
- Product function IO-Link master
- no
- Product function Reverse polarity protection
- yes
- Protection class IP
- IP20
- Protocol inbound is supported CAN protocol
- no
- Protocol inbound is supported data highway protocol
- no
- Protocol inbound is supported DeviceNet protocol
- no
- Protocol inbound is supported EIB/KNX protocol
- no
- Protocol inbound is supported INTERBUS protocol
- no
- Protocol inbound is supported LON protocol
- no
- Protocol inbound is supported MODBUS protocol
- no
- Protocol inbound is supported other protocols
- yes
- Protocol inbound is supported PROFIBUS protocol
- no
- Protocol inbound is supported SERCOS protocol
- no
- Protocol inbound is supported SUCONET protocol
- no
- Protocol inbound is supported TCP/IP
- no
- Protocol is supported AS-interface protocol
- no
- Protocol is supported CAN protocol
- no
- Protocol is supported data highway protocol
- no
- Protocol is supported DeviceNet protocol
- no
- Protocol is supported EIB/KNX protocol
- no
- Protocol is supported EtherNet/IP protocol
- no
- Protocol is supported INTERBUS protocol
- no
- Protocol is supported LON protocol
- no
- Protocol is supported MODBUS protocol
- no
- Protocol is supported other protocols
- yes
- Protocol is supported PROFIBUS protocol
- no
- Protocol is supported PROFINET IO protocol
- no
- Protocol is supported PROFIsafe protocol
- no
- Protocol is supported SERCOS protocol
- no
- Protocol is supported SUCONET protocol
- no
- Protocol is supported TCP/IP
- no
- Protocol outbound is supported CAN protocol
- no
- Protocol outbound is supported data highway protocol
- no
- Protocol outbound is supported DeviceNet protocol
- no
- Protocol outbound is supported EIB/KNX protocol
- no
- Protocol outbound is supported INTERBUS protocol
- no
- Protocol outbound is supported LON protocol
- no
- Protocol outbound is supported MODBUS protocol
- no
- Protocol outbound is supported other protocols
- yes
- Protocol outbound is supported PROFIBUS protocol
- no
- Protocol outbound is supported SERCOS protocol
- no
- Protocol outbound is supported SUCONET protocol
- no
- Protocol outbound is supported TCP/IP
- no
- Standard for wireless communication IEEE 802.11
- no
- Suitability for use safety-related function
- no
- Suitability for use system component
- yes
- Supply voltage at DC rated value maximum [V]
- 28.8
- Supply voltage at DC rated value minimum [V]
- 20.4
- Supply voltage at DC Rated value [V]
- 24
- Supply voltage at DC rated value [µV]
- 2.40E+07
- Telegram length at the point-to-point connection for 3964 (R) protocol maximum [byte]
- 224
- Telegram length at the point-to-point connection for ASCII protocol maximum [byte]
- 224
- Transfer rate at the point-to-point connection for 3964 (R) protocol acc. to RS 232 maximum [kbit/s]
- 115.2
- Transfer rate at the point-to-point connection for 3964 (R) protocol acc. to RS 232 maximum Note
- half duplex: 110, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, 76 800, 115 200 bit/s
- Transfer rate at the point-to-point connection for 3964 (R) protocol acc. to RS 422/485 maximum [kbit/s]
- 115.2
- Transfer rate at the point-to-point connection for 3964 (R) protocol acc. to RS 422/485 maximum Note
- half duplex: 110, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, 76 800, 115 200 bit/s
- Transfer rate at the point-to-point connection for ASCII protocol acc. to RS 232 maximum [kbit/s]
- 115.2
- Transfer rate at the point-to-point connection for ASCII protocol acc. to RS 232 maximum Note
- Full duplex: 110, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, 76 800, 115 200 bit/s
- Transfer rate at the point-to-point connection for ASCII protocol acc. to RS 422/485 maximum [kbit/s]
- 115.2
- Transfer rate at the point-to-point connection for ASCII protocol acc. to RS 422/485 maximum Note
- Full duplex: 110, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, 76 800, 115 200 bit/s
- Type of voltage of the supply voltage
- DC
- Width [mm]
- 15
