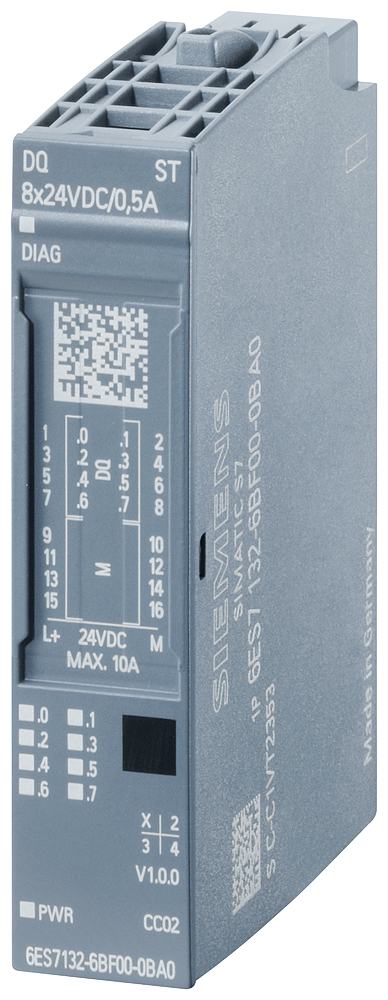

Siemens 6ES71326BF000BA0

Additional Product Information

• Commodity Code
  • 85389091
• Country of origin
  • Germany
• EAN
  • 4025515080800
• LKZ_FDB/ CatalogID
  • ST76
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 4520
• Returnable
  • Yes
• RoHS Compliance
  • Since: 01/31/2012
• UPC
  • 40892933055

Delivery Information

• Export Control Regulations
  • AL : N / ECCN : EAR99H
• Net Weight (lb)
  • 0.079 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 2.559 x 3.071 x 0.906
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece
• Standard lead time ex-works
  • 1 Day/Days

Specifications

• address range memory per module maximum [byte]
  • 1
• address range memory per module maximum Note
  • =+ 1 byte for QI information
• Alert function Diagnostics alarm
  • Yes
• Color coding of labeling plates for module-specific use usable
  • CC02
• Consumed current maximum [mA]
  • 35
• Consumed current maximum Note
  • without load
• Delay time at signal change at digital output with resistive load for signal <0> to <1> maximum Note
  • at rated load
• Delay time at signal change at digital output with resistive load for signal <0> to <1> maximum [µs]
  • 50
• Delay time at signal change at digital output with resistive load for signal <1> to <0> maximum Note
  • at rated load
• Delay time at signal change at digital output with resistive load for signal <1> to <0> maximum [µs]
  • 100
• Depth [mm]
  • 58
• Design of the digital output
  • Source output (PNP, current-sourcing)
• Diagnostics function
  • Yes
• Diagnostics function Cable break
  • Yes
• Diagnostics function Cable break Note
  • Module-wise
• Diagnostics function Group fault
  • Yes
• Diagnostics function Monitoring of the mains voltage of the electronic
  • Yes
• Diagnostics function Short-circuit detection
  • Yes
• Diagnostics function Short-circuit detection Note
  • Module-wise
• Display version for diagnostic function: Status display expansion modules module diagnostics (traffic light green-red-yellow or DIAG red/green)
  • Yes
• Display version for diagnostic function: Status display expansion modules module diagnostics (traffic light green-red-yellow or DIAG red/green) Note
  • green/red DIAG LED
• Display version for diagnostic function: Status display transmission channel channel diagnostics LED
  • No
• Display version for diagnostic function: Status display transmission channel channel status LED
  • Yes
• Display version for diagnostic function: Status display transmission channel channel status LED Note
  • Green LED
• Display version for diagnostic function: Supply voltage monitoring Power LED
  • Yes
• Display version for diagnostic function: Supply voltage monitoring Power LED Note
  • green PWR LED
• Equipment marking acc. to DIN EN 81346-2
  • K
• Explosion protection category for dust
  • No
• Explosion protection category for gas
  • ATEX II 3 G Ex nA II T4 ... T5
• Explosion protection marking for intrinsic safety of related equipment EEx ia
  • No
• Explosion protection marking for intrinsic safety of related equipment EEx ib
  • No
• Firmware version
  • V1.1
• Galvanic isolation at the universal inputs between the channels
  • No
• Galvanic isolation at the universal inputs between the channels and backing bus
  • Yes
• GSD version/revision with PROFIBus required
  • GSD Revision 5
• GSD version/revision with PROFINET required
  • GSDML V2.3
• Height [mm]
  • 73
• Load resistance at digital output maximum [Ohm]
  • 12000
• Load resistance at digital output minimum [Ohm]
  • 48
• Mounting type front mounting
  • Yes
• Mounting type rack mounting
  • Yes
• Mounting type rail mounting
  • Yes
• Mounting type wall mounting
  • No
• Net Weight in Kg
  • 0.036
• Number of digital outputs
  • 8
• Number of interfaces acc. to PROFINET
  • 0
• Number of interfaces acc. to RS 485
  • 0
• Operating mode as digital output
  • Yes
• Operating mode digital output with standby mode
  • No
• Operating mode oversampling
  • No
• Operating mode pulse width modulation
  • No
• Order number
  • 6ES7132-6BF00-0BA0
• Output current at digital output for signal <1> Rated value [mA]
  • 500
• Output voltage at DC Rated value [V]
  • 24
• Power loss [W] typical [mW]
  • 1000
• product brandname
  • Simatic DP
• Product category
  • Digital module output
• Product extension required separate bus coupler for fieldbus connection
  • Yes
• Product family
  • ET 200SP
• Product feature of the firmware version can be updated
  • Yes
• Product function at digital output control of a digital input
  • Yes
• Product function at digital output parallel switching of outputs for increasing the power
  • No
• Product function at the digital outputs Short circuit protection
  • Yes
• Product function digital outputs parameterizable
  • Yes
• Product function I&M data
  • Yes
• Product function I&M data Note
  • I&M0 to I&M3
• Product function MSO
  • No
• Product function Replacement value entry point
  • Yes
• Product function Reverse polarity protection
  • Yes
• Product type designation
  • ET 200SP, DQ 8x 24 V DC/0.5 A ST, PU 1
• Product type designation of the racks usable
  • BU type A0
• Protection class IP
  • IP20
• Protocol is supported PROFIBus protocol
  • No
• Protocol is supported PROFINET IO protocol
  • No
• Protocol is supported PROFIsafe protocol
  • No
• Residual current at digital output with signal <0> maximum [µA]
  • 100
• Software version for PCS 7 application required
  • V8.1 SP1
• Software version with STEP 7 in the TIA Portal required
  • V11 SP2 / V13
• Software version with STEP 7 required
  • V5.5 SP3 / -
• Suitability for use safety-related function
  • No
• Supplier
  • Siemens AG
• Supply voltage at DC rated value maximum [V]
  • 28.8
• Supply voltage at DC rated value minimum [V]
  • 19.2
• Supply voltage at DC Rated value [V]
  • 24
• Switching capacity active power at digital output with filament lamp load maximum [W]
  • 5
• Switching capacity current at digital output with resistive load maximum [A]
  • 0.5
• Switching frequency at digital output with filament lamp load maximum [Hz]
  • 10
• Switching frequency at digital output with inductive load maximum [Hz]
  • 2
• Switching frequency at digital output with resistive load maximum [Hz]
  • 100
• Total current of digital outputs in horizontal mounting position up to 60 °C per module maximum [A]
  • 4
• Total current of digital outputs in vertical mounting position up to 50 °C per module maximum [A]
  • 4
• Total current of digital outputs per channel maximum [A]
  • 0.5
• Total current of digital outputs per module maximum [A]
  • 4
• Type of electrical connection
  • Push-in terminal
• Type of isolation test
  • 707 V DC (type test)
• Type of voltage at digital output
  • DC
• Type of voltage of the supply voltage
  • DC
• Voltage limitation method of inductive trip voltage
  • Typ. L+ (-50 V)
• Width [mm]
  • 15
• Wire length at digital output shielded maximum [m]
  • 1000
• Wire length at digital output unshielded maximum [m]
  • 600
