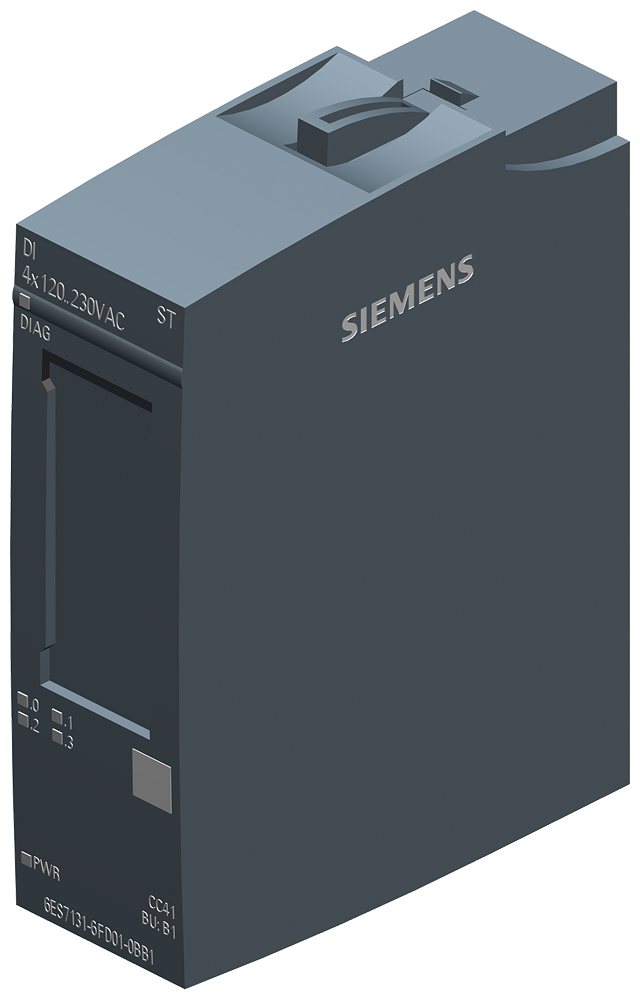

Siemens 6ES71316FD010BB1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIMATIC ET 200SP. Digital input module. DI 4x 120..230V AC Standard. type 3 (IEC 61131). Packing unit: 1 piece. fits to BU-type B1. Colour Code CC41. module diagnosticsET 200SP. DI 4x 120..230VvAC ST
Siemens 6ES71316FD010BB1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bearing track assembly possible
- true
- Brand
- SIMATIC
- Corresponding operating medium (Ex ia)
- false
- Corresponding operating medium (Ex ib)
- false
- Country of Origin
- DE
- Depth
- 58 millimetre
- description of product type
- DI 4x120 ... 230 V AC ST
- digital inputs, configurable
- true
- Field bus connection possible via separate bus couplers
- true
- Front installation possible
- false
- Height
- 73 millimetre
- Input current for state 1
- 11 milliampere
- Input voltage, type
- AC
- IO-link master present
- false
- Manufacturer name
- Siemens
- Manufacturer product family
- ET 200SP
- Manufacturer product root
- Digital module input
- Max. delay time with change of signal
- 8 millisecond
- max. permissible voltage at input
- 264 volt
- max. supply voltage with AC 50 Hz
- 264 volt
- max. supply voltage with AC 60 Hz
- 264 volt
- Min. delay time with change of signal
- 2 millisecond
- min. permissible voltage at input
- 0 volt
- min. supply voltage with AC 50 Hz
- 187 volt
- min. supply voltage with AC 60 Hz
- 187 volt
- Number of HW interfaces Industrial Ethernet
- 0
- Number of HW interfaces, other
- 0
- Number of HW interfaces parallel
- 0
- Number of HW interfaces PROFINET
- 0
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Number of HW interfaces serial TTY
- 0
- Number of HW interfaces Wireless
- 0
- Number of inputs
- 4
- Number of inputs, digital
- 4
- Number of outputs
- 0
- Number of outputs, digital
- 0
- Optical interface present
- false
- Power loss, static, current-independent [Pls]
- 1 watt
- Protection type IP
- IP20
- Rack-assembly possible
- false
- suitable for safety functions
- false
- Supply voltage type
- AC
- System components present
- true
- wall mounting/direct mounting possible
- false
- Width
- 20 millimetre
