Siemens 6ES71316BF000BA0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

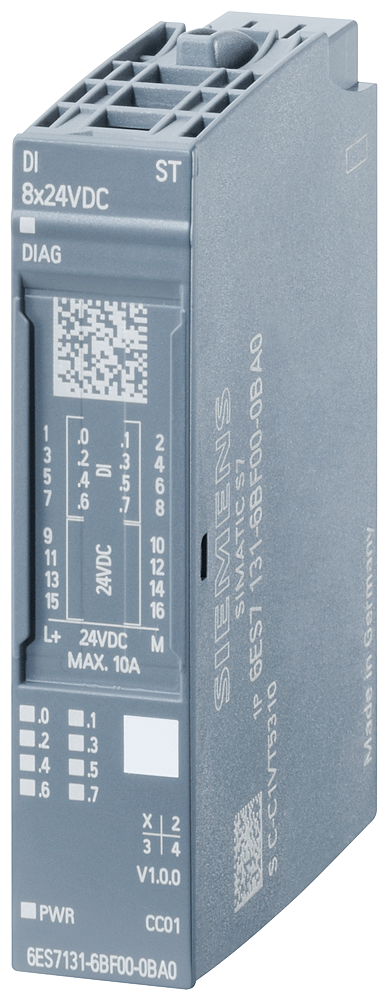

Simatic ET 200SP, Digital Input Module, DI 8X 24VDC Standard, Fits to BU-Type A0, Color Code CC01, Module Diagnosis
Siemens 6ES71316BF000BA0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 85389091
- Country of origin
- Germany
- EAN
- 4025515080770
- LKZ_FDB/ CatalogID
- ST76
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 4520
- Returnable
- Yes
- RoHS Compliance
- Since: 01/31/2012
- UPC
- 40892933406
Delivery Information
- Export Control Regulations
- AL : N / ECCN : N
- Net Weight (lb)
- 0.082 lb
- Package size unit of measure
- in
- Packaging Dimension
- 2.559 x 3.031 x 0.906
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
- Standard lead time ex-works
- 1 Day/Days
Specifications
- address range memory per module maximum [byte]
- 1
- address range memory per module maximum Note
- =+ 1 byte for QI information
- Alert function Diagnostics alarm
- Yes
- Color coding of labeling plates for module-specific use usable
- CC01
- Consumed current maximum [mA]
- 50
- Depth [mm]
- 58
- Design of the sensor connectable 2-wire transmitter
- Yes
- Diagnostics function
- Yes
- Diagnostics function Cable break
- Yes
- Diagnostics function Cable break Note
- Module-wise
- Diagnostics function Diagnostics information readable
- Yes
- Diagnostics function Monitoring of the mains voltage of the electronic
- Yes
- Diagnostics function Short-circuit detection
- Yes
- Diagnostics function Short-circuit detection Note
- Module-wise
- Digital input version Type 1 acc. to IEC 61131
- Yes
- Digital input version Type 2 acc. to IEC 61131
- No
- Display version for diagnostic function: Status display expansion modules module diagnostics (traffic light green-red-yellow or DIAG red/green)
- Yes
- Display version for diagnostic function: Status display expansion modules module diagnostics (traffic light green-red-yellow or DIAG red/green) Note
- green/red DIAG LED
- Display version for diagnostic function: Status display transmission channel channel diagnostics LED
- No
- Display version for diagnostic function: Status display transmission channel channel status LED
- Yes
- Display version for diagnostic function: Status display transmission channel channel status LED Note
- Green LED
- Display version for diagnostic function: Supply voltage monitoring Power LED
- Yes
- Display version for diagnostic function: Supply voltage monitoring Power LED Note
- green PWR LED
- Equipment marking acc. to DIN EN 81346-2
- K
- Explosion protection category for dust
- No
- Explosion protection category for gas
- ATEX II 3 G Ex nA II T4 ... T5
- Explosion protection marking for intrinsic safety of related equipment EEx ia
- No
- Explosion protection marking for intrinsic safety of related equipment EEx ib
- No
- Firmware version
- V1.1
- Galvanic isolation at the universal inputs between the channels
- No
- Galvanic isolation at the universal inputs between the channels and backing bus
- Yes
- Galvanic isolation at the universal inputs between the channels and voltage supply of the electronics
- No
- GSD version/revision with PROFIBus required
- GSD Revision 5
- GSD version/revision with PROFINET required
- GSDML V2.3
- Height [mm]
- 73
- Input current at digital input for signal <1> typical [mA]
- 2.5
- Input voltage at digital input at DC Rated value [V]
- 24
- Mounting type front mounting
- Yes
- Mounting type rack mounting
- Yes
- Mounting type rail mounting
- Yes
- Mounting type wall mounting
- No
- Net Weight in Kg
- 0.037
- Number of digital inputs
- 8
- Number of interfaces acc. to PROFINET
- 0
- Number of interfaces acc. to RS 485
- 0
- Number of outputs for encoder supply
- 8
- Operating mode as counter
- No
- Operating mode as digital input
- Yes
- Operating mode oversampling
- No
- Operating voltage as input voltage maximum permissible [V]
- 30
- Operating voltage as input voltage minimum permissible [V]
- -30
- Order number
- 6ES7131-6BF00-0BA0
- Output current with 24 V encoder supply maximum [mA]
- 700
- Output current with 24 V encoder supply maximum Note
- Total current of all encoders
- Output voltage for encoder supply minimum [V]
- 19.2
- Power loss [W] typical [mW]
- 1000
- product brandname
- Simatic DP
- Product category
- Digital module input
- Product extension required separate bus coupler for fieldbus connection
- Yes
- Product family
- ET 200SP
- Product feature of the firmware version can be updated
- Yes
- Product function at alarm inputs at rated input voltage parameterizable input delay time
- No
- Product function at the inputs for counters or technological functions at rated input voltage parameterizable input delay time
- No
- Product function at the standard inputs at rated input voltage parameterizable input delay time
- Yes
- Product function at the standard inputs at rated input voltage parameterizable input delay time Note
- 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)
- Product function for diagnostic function: Encoder supply monitoring parameterizable
- Yes
- Product function for diagnostic function: Encoder supply monitoring parameterizable Note
- Module-wise
- Product function for diagnostic function: Supply voltage monitoring parameterizable
- Yes
- Product function for encoder supply Short-circuit protection
- Yes
- Product function for encoder supply Short-circuit protection Note
- per module
- Product function I&M data
- Yes
- Product function I&M data Note
- I&M0 to I&M3
- Product function MSI
- No
- Product function pulse stretching
- No
- Product function Reverse polarity protection
- Yes
- Product function with 24 V encoder supply Short-circuit protection
- Yes
- Product type designation
- ET 200SP, DI 8x 24 V DC ST, PU 1
- Product type designation of the racks usable
- BU type A0
- Protection class IP
- IP20
- Protocol is supported PROFIBus protocol
- No
- Protocol is supported PROFINET IO protocol
- No
- Protocol is supported PROFIsafe protocol
- No
- Quiescent current of the 2-wire transducer maximum permissible [mA]
- 1.5
- Software version for PCS 7 application required
- V8.1 SP1
- Software version with STEP 7 in the TIA Portal required
- V11 SP2 / V13
- Software version with STEP 7 required
- V5.5 SP3 / -
- Suitability for use safety-related function
- No
- Supplier
- Siemens AG
- Supply voltage at DC rated value maximum [V]
- 28.8
- Supply voltage at DC rated value minimum [V]
- 19.2
- Supply voltage at DC Rated value [V]
- 24
- Supply voltage for encoder supply 24 V
- Yes
- Type of electrical connection
- Push-in terminal
- Type of isolation test
- 707 V DC (type test)
- Type of voltage at digital input
- DC
- Type of voltage of the supply voltage
- DC
- Value range of the input voltage at digital input for signal <0> detection
- -30 to +5V
- Value range of the input voltage at digital input for signal <1> detection
- =+11 to +30V
- Width [mm]
- 15
- Wire length at digital input shielded maximum [m]
- 1000
- Wire length at digital input unshielded maximum [mm]
- 600000
