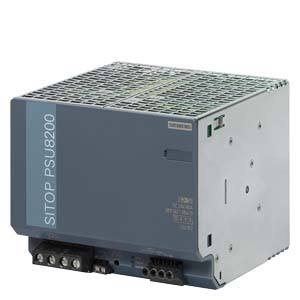

Siemens 6EP1437-3BA10

Additional Product Information

• Commodity Code
  • 85044090
• Country of origin
  • Romania
• EAN
  • 4025515152538
• LKZ_FDB/ CatalogID
  • KT10-PE
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 4213
• Returnable
  • Yes
• RoHS Compliance
  • Since: 03/10/2009
• UPC
  • 40892549577

Delivery Information

• Delivery Time
  • 1 Day/Days
• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 7,496 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 7,283 x 7,283 x 5,906
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• Adjustable output voltage Full-scale value Note
  • max. 960 W
• Adjustable output voltage Full-scale value [V]
  • 28.8
• Adjustable output voltage initial value [V]
  • 24
• Ambient temperature during operation Full-scale value [°C]
  • 70
• Ambient temperature during operation initial value [°C]
  • -25
• Ambient temperature during storage Full-scale value [°C]
  • 85
• Ambient temperature during storage initial value [°C]
  • -40
• Ambient temperature during transport Full-scale value [°C]
  • 85
• Ambient temperature during transport initial value [°C]
  • -40
• Behavior of the output voltage when switching on
  • No overshoot of Vout (soft start)
• Buffering time at rated output current in the event of power failure minimum [ms]
  • 15
• Certificate of suitability as approval for USA
  • cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
• Certificate of suitability ATEX
  • yes
• Certificate of suitability cCSAus, Class 1, Division 2
  • yes
• Certificate of suitability CE marking
  • yes
• Certificate of suitability CSA-approval
  • yes
• Certificate of suitability FM registration
  • no
• Certificate of suitability IECEx
  • yes
• Certificate of suitability NEC Class 2
  • no
• Certificate of suitability relating to ATEX
  • IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T4
• Certificate of suitability Shipbuilding approval
  • yes
• Certificate of suitability UL approval
  • yes
• Constant overload current on short-circuiting during the start-up typical [A]
  • 44
• Current limitation of inrush current at 25 °C maximum [A]
  • 56
• Depth of the enclosure [mm]
  • 150
• Design of input wide range input
  • yes
• Design of short-circuit protection
  • Alternatively, constant current characteristic approx. 44 A or latching shutdown
• Design of the overvoltage protection
  • < 35 V
• Display version for normal operation
  • Green LED for 24 V OK
• Display version for overload and short circuit
  • LED yellow for "overload", LED red for "latching shutdown"
• Documentation selection list
  • yes
• Duration of overloading capability for excess current at short-circuit during operation [ms]
  • 25
• Efficiency in percent [%]
  • 92
• Electrical accessories
  • Buffer module
• Enduring short circuit current RMS value typical [A]
  • 44
• Environmental category acc. to IEC 60721
  • Climate class 3K3, no condensation
• Equipment marking acc. to DIN EN 81346-2
  • T
• Fuse protection type In the feeder
  • Required: 3-pole connected miniature circuit breaker 10 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)
• Galvanic isolation
  • Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
• Galvanic isolation between entrance and outlet
  • yes
• Height of the enclosure [mm]
  • 125
• I2t value maximum [A2.s]
  • 2.24
• Input current at rated input voltage 400 V Rated value [A]
  • 2.6
• Input current at rated input voltage 500 V Rated value [A]
  • 2.1
• Installation width [mm]
  • 150
• Leakage current maximum [mA]
  • 3.5
• Line frequency 1 Rated value [Hz]
  • 50
• Line frequency 2 Rated value [Hz]
  • 60
• Line frequency Full-scale value [Hz]
  • 63
• Line frequency initial value [Hz]
  • 47
• Marine classification association American Bureau of Shipping Europe Ltd. (ABS)
  • yes
• Marine classification association Germanische Lloyd (GL)
  • yes
• Mechanical accessories
  • Device identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20
• Mounting height [mm]
  • 225
• Mounting type
  • Snaps onto DIN rail EN 60715 35x15
• Mounting type S7 rail mounting
  • no
• Mounting type Standard rail mounting
  • yes
• Mounting type wall mounting
  • no
• MTBF at 40 °C [h]
  • 885739
• Net weight [kg]
  • 3.4
• Number of parallel-switched resources for increasing the power
  • 2
• Operating condition of the mains buffering
  • at Vin = 400 V
• Operating resource protection class
  • Class I
• Other information
  • Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
• Output current Rated range Full-scale value [A]
  • 40
• Output current Rated range Full-scale value Note
  • =+60 ... +70 °C: Derating 3.75%/K
• Output current Rated range initial value [A]
  • 0
• Output current Rated value [A]
  • 40
• Output voltage at DC Rated value [V]
  • 24
• Output voltage at output 1 at DC Full-scale value [V]
  • 24
• Output voltage at output 1 at DC initial value [V]
  • 24
• Overcurrent overload capability in normal operation
  • overload capability 150 % Iout rated up to 5 s/min
• Phase number
  • 3
• Power loss [W] at rated output current at rated output current typical [W]
  • 83
• product brand name
  • SITOP PSU8200
• Product designation
  • Power supply SITOP modular
• Product feature bridging of equipments
  • yes
• Product feature bridging of equipments Note
  • switchable characteristic
• Product feature device in control circuit
  • yes
• Product feature of the enclosure housing for side-by-side mounting
  • yes
• Product function Output voltage adjustable
  • yes
• Product function Output voltage controlled
  • yes
• Product function Output voltage stabilized
  • yes
• Property of the output Short-circuit proof
  • yes
• Protection class IP
  • IP20
• Relative control precision of the output voltage load step of resistive load 50/100/50 % typical [%]
  • 3
• Relative control precision of the output voltage On slow fluctuation of input voltage [%]
  • 0.1
• Relative control precision of the output voltage On slow fluctuation of ohm loading [%]
  • 0.2
• Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical [%]
  • 1
• Relative overall tolerance of the voltage [%]
  • 3
• Required spacing bottom [mm]
  • 50
• Required spacing left [mm]
  • 0
• Required spacing right [mm]
  • 0
• Required spacing top [mm]
  • 50
• Residual ripple maximum [mV]
  • 100
• Response delay maximum [s]
  • 2.5
• Response value current limitation typical [A]
  • 44
• Setting time maximum [ms]
  • 10
• Shipbuilding approval
  • GL, ABS
• Short-term overload current at short-circuit during operation typical [A]
  • 120
• Standard for emitted interference
  • EN 55022 Class B
• Standard for interference immunity
  • EN 61000-6-2
• Standard for mains harmonics limitation
  • EN 61000-3-2
• Supplied active power typical [W]
  • 960
• Supply voltage at 50 Hz rated value [V]
  • 400
• Supply voltage at 60 Hz rated value [V]
  • 500
• Supply voltage at AC Full-scale value [V]
  • 575
• Supply voltage at AC initial value [V]
  • 320
• Supply voltage at AC maximum rated value [V]
  • 500
• Supply voltage at AC minimum rated value [V]
  • 400
• Type of certification CB-certificate
  • yes
• Type of current supply
  • 24 V/40 A
• Type of electrical connection
  • screw-type terminals
• Type of electrical connection at input
  • L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
• Type of electrical connection at output
  • =+, -: 2 screw terminals each for 0.33 ... 10 mm²
• Type of electrical connection for auxiliary contacts
  • 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²
• Type of output voltage setting
  • via potentiometer
• Type of signal at output
  • Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
• Type of the power supply network
  • 3-phase AC
• Voltage curve at input
  • AC
• Voltage curve at output
  • Controlled, isolated DC voltage
• Voltage increase time of the output voltage maximum [ms]
  • 500
• Voltage peak maximum [mV]
  • 200
• Width of the enclosure [mm]
  • 150
