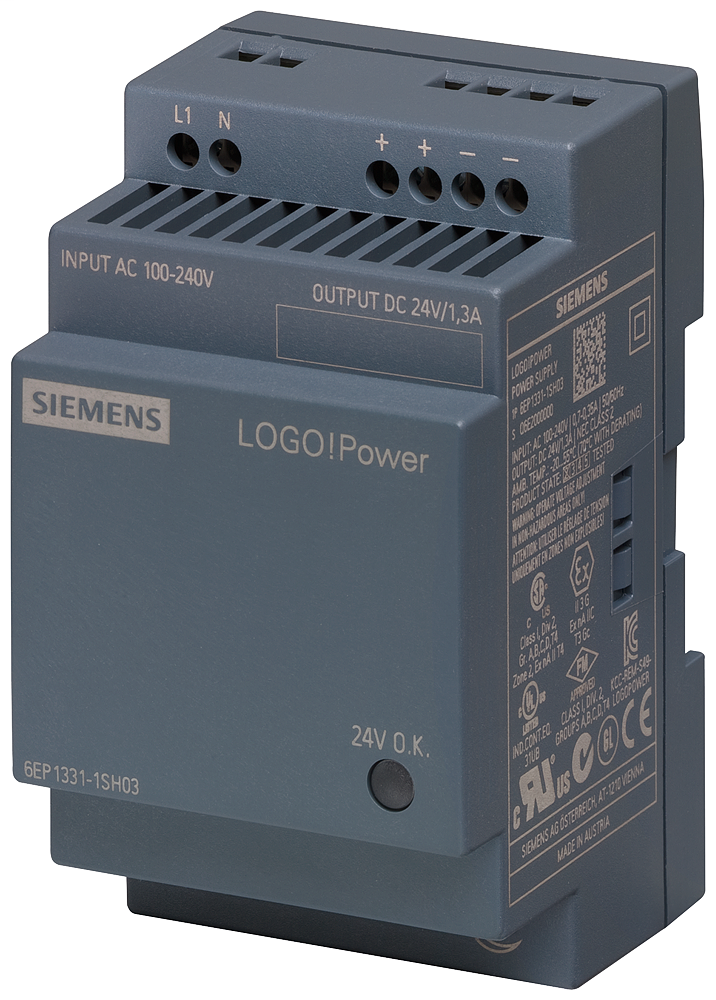

Siemens 6EP13311SH03

Additional Product Information

• Commodity Code
  • 85044090
• Country of origin
  • Austria
• EAN
  • 4025515152767
• LKZ_FDB/ CatalogID
  • KT10-PH
• Product Group
  • 4022
• Returnable
  • Yes
• RoHS Compliance
  • Since: 07/01/2006
• UPC
  • 40892600254

Delivery Information

• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 0.375 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 2.756 x 3.543 x 2.283
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece
• Standard lead time ex-works
  • 1 Day/Days

Specifications

• Adjustable output voltage Full-scale value [V]
  • 26.4
• Adjustable output voltage initial value [V]
  • 22.2
• Ambient temperature during operation Full-scale value [°C]
  • 70
• Ambient temperature during operation initial value [°C]
  • -20
• Ambient temperature during operation Note
  • with natural convection
• Ambient temperature during storage Full-scale value [°C]
  • 85
• Ambient temperature during storage initial value [°C]
  • -40
• Ambient temperature during transport Full-scale value [°C]
  • 85
• Ambient temperature during transport initial value [°C]
  • -40
• Behavior of the output voltage when switching on
  • No overshoot of Vout (soft start)
• Buffering time at rated output current in the event of power failure minimum [ms]
  • 40
• Certificate of suitability as approval for USA
  • cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
• Certificate of suitability ATEX
  • Yes
• Certificate of suitability cCSAus, Class 1, Division 2
  • Yes
• Certificate of suitability CE marking
  • Yes
• Certificate of suitability CSA-approval
  • Yes
• Certificate of suitability FM registration
  • Yes
• Certificate of suitability IECEx
  • No
• Certificate of suitability NEC Class 2
  • Yes
• Certificate of suitability relating to ATEX
  • ATEX (EX) II 3G Ex nA IIC T3; cCSAus (CSA C22.2 No. 213-M1987, ANSI/ISA-12.12.01-2007) Class I, Div. 2, Group ABCD, T4
• Certificate of suitability relating to FM
  • Class I, Div. 2, Group ABCD, T4
• Certificate of suitability Shipbuilding approval
  • Yes
• Certificate of suitability UL approval
  • Yes
• Current limitation of inrush current at 25 °C maximum [A]
  • 25
• Depth of the enclosure [mm]
  • 52.6
• Design of input wide range input
  • Yes
• Design of short-circuit protection
  • Constant current characteristic
• Design of the overvoltage protection
  • Yes, according to EN 60950-1
• Display version for normal operation
  • Green LED for output voltage OK
• Documentation selection list
  • Yes
• Efficiency in percent [%]
  • 85
• Enduring short circuit current RMS value maximum [A]
  • 2.4
• Environmental category acc. to IEC 60721
  • Climate class 3K3, no condensation
• Equipment marking acc. to DIN EN 81346-2
  • T
• Fuse protection type
  • internal
• Fuse protection type In the feeder
  • Recommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C
• Galvanic isolation
  • Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
• Galvanic isolation between entrance and outlet
  • Yes
• Height of the enclosure [mm]
  • 90
• I2t value maximum [A2.s]
  • 0.8
• Input current at rated input voltage 120 V Rated value [A]
  • 0.7
• Input current at rated input voltage 230 V Rated value [A]
  • 0.35
• Input voltage at DC Full-scale value [V]
  • 300
• Input voltage at DC initial value [V]
  • 110
• Installation width [mm]
  • 54
• Line frequency 1 Rated value [Hz]
  • 50
• Line frequency 2 Rated value [Hz]
  • 60
• Line frequency Full-scale value [Hz]
  • 63
• Line frequency initial value [Hz]
  • 47
• Marine classification association American Bureau of Shipping Europe Ltd. (ABS)
  • Yes
• Marine classification association Germanische Lloyd (GL)
  • Yes
• Mounting height [mm]
  • 130
• Mounting type
  • Snaps onto DIN rail EN 60715 35x7.5/15
• Mounting type S7 rail mounting
  • No
• Mounting type Standard rail mounting
  • Yes
• Mounting type wall mounting
  • No
• MTBF at 40 °C [h]
  • 3586929
• Net Weight in Kg
  • 0.17
• Net weight [kg]
  • 0.17
• Number of parallel-switched resources for increasing the power
  • 2
• Operating condition of the mains buffering
  • at Vin = 187 V
• Operating resource protection class
  • Class II (without protective conductor)
• Order number
  • 6EP1331-1SH03
• Other information
  • Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
• Output current Rated range Full-scale value [A]
  • 1.3
• Output current Rated range Full-scale value Note
  • =+55 ... +70 °C: Derating 2%/K
• Output current Rated range initial value [A]
  • 0
• Output current Rated value [A]
  • 1.3
• Output voltage at DC Rated value [V]
  • 24
• Output voltage at output 1 at DC Full-scale value [V]
  • 24
• Output voltage at output 1 at DC initial value [V]
  • 24
• Overvoltage overload capability
  • 2.3 × Vin rated, 1.3 ms
• Phase number
  • 1
• Power loss [W] at rated output current at rated output current typical [W]
  • 6
• Power loss [W] during no-load operation maximum [W]
  • 2
• product brandname
  • LOGO!Power
• Product designation
  • Power supply LOGO!Power
• Product feature bridging of equipments
  • Yes
• Product feature device in control circuit
  • Yes
• Product feature of the enclosure housing for side-by-side mounting
  • Yes
• Product function Output voltage adjustable
  • Yes
• Product function Output voltage controlled
  • Yes
• Product function Output voltage stabilized
  • Yes
• Property of the output Short-circuit proof
  • Yes
• Protection class IP
  • IP20
• Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical [%]
  • 1
• Relative control precision of the output voltage On slow fluctuation of input voltage [%]
  • 0.1
• Relative control precision of the output voltage On slow fluctuation of ohm loading [%]
  • 1.5
• Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical [%]
  • 0.2
• Relative overall tolerance of the voltage [%]
  • 3
• Required spacing bottom [mm]
  • 20
• Required spacing left [mm]
  • 0
• Required spacing right [mm]
  • 0
• Required spacing top [mm]
  • 20
• Residual ripple maximum [mV]
  • 200
• Residual ripple typical [mV]
  • 10
• Response delay maximum [s]
  • 0.5
• Response value current limitation typical [A]
  • 1.7
• Setting time load step 10 to 90% typical [ms]
  • 1
• Setting time load step 90 to 10% typical [ms]
  • 1
• Shipbuilding approval
  • GL, ABS, BV, DNV, LRS
• Standard for emitted interference
  • EN 55022 Class B
• Standard for interference immunity
  • EN 61000-6-2
• Standard for mains harmonics limitation
  • not applicable
• Supplied active power typical [W]
  • 30
• Supplier
  • Siemens AG
• Supply voltage at 50 Hz rated value [V]
  • 240
• Supply voltage at 60 Hz rated value [V]
  • 100
• Supply voltage at AC Full-scale value [V]
  • 264
• Supply voltage at AC initial value [V]
  • 85
• Supply voltage at AC maximum rated value [V]
  • 240
• Supply voltage at AC minimum rated value [V]
  • 100
• Type of certification CB-certificate
  • Yes
• Type of current supply
  • 24 V/1.3 A
• Type of electrical connection
  • screw-type terminals
• Type of electrical connection at input
  • L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded
• Type of electrical connection at output
  • =+, -: 2 screw terminals each for 0.5 ... 2.5 mm²
• Type of output voltage setting
  • via potentiometer
• Type of the power supply network
  • 1-phase AC or DC
• Voltage curve at input
  • AC/DC
• Voltage curve at output
  • Controlled, isolated DC voltage
• Voltage increase time of the output voltage typical [ms]
  • 15
• Voltage peak maximum [mV]
  • 300
• Voltage peak typical [mV]
  • 20
• Width of the enclosure [mm]
  • 54
