Siemens 6AV7881-2AF00-3DP0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

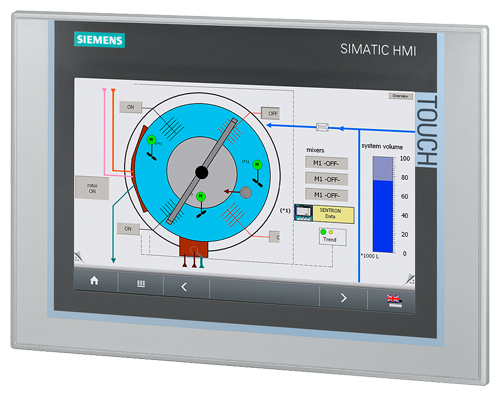

SIMATIC IPC277D (NANOPANEL PC) 9" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY; ATOM E660 (1.3 GHZ), 2GB RAM; REMANENCE; STANDARD FRONT; 8 GB SIMATIC PC COMPACTFLASH; WES 7 SP1 (CF FROM 4 GB/SSD); WINAC RTX 2010; WINCC ADVANCED RT V13 2048 PT (INCL. LOGGING AND RECIPES)
Siemens 6AV7881-2AF00-3DP0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 84714100
- Country of origin
- Germany
- EAN
- Not available
- LKZ_FDB/ CatalogID
- ST80.1U
- Obligation Category for taking back electrical and electronic equipment after use
- No obligation to take back electrical and electronic equipment after use
- Product Group
- 3368
- Returnable
- Yes
- RoHS Compliance
- Since: 07/11/2011
- UPC
- Not available
Delivery Information
- Delivery Time
- 15 Day/Days
- Export Control Regulations
- AL : N / ECCN : 5D992
- Net Weight (lb)
- 5,510 lb
- Package size unit of measure
- in
- Packaging Dimension
- Not available
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
Specifications
- Ambient temperature during operation maximum [°C]
- 50
- Ambient temperature during operation maximum Note
- 19": max. 45 °C
- Ambient temperature during operation minimum [°C]
- 0
- Buffering time in the event of power failure [ms]
- 20
- Certificate of suitability CE marking
- yes
- Certificate of suitability cULus approval
- yes
- Certificate of suitability GL approval
- yes
- Certificate of suitability GL approval Note
- 7", 9", 12"
- Design of the display
- 9" TFT Touch
- Design of the display Touchscreen
- yes
- Design of the drive/storage medium Solid-state disk
- yes
- Design of the drive/storage medium Solid-state disk Note
- ≥ 80 GB optional
- Design of the interface Fast Ethernet interface
- yes
- Design of the interface Gigabit Ethernet interface
- yes
- Design of the processor
- Intel Atom E6x0
- Marine classification association American Bureau of Shipping Europe Ltd. (ABS)
- yes
- Marine classification association American Bureau of Shipping Europe Ltd. (ABS) Note
- 7", 9", 12"
- Marine classification association Bureau Veritas (BV)
- yes
- Marine classification association Bureau Veritas (BV) Note
- 7", 9", 12"
- Marine classification association Det Norske Veritas (DNV)
- yes
- Marine classification association Det Norske Veritas (DNV) Note
- 7", 9", 12"
- Marine classification association Lloyds Register of Shipping (LRS)
- yes
- Marine classification association Lloyds Register of Shipping (LRS) Note
- 7", 9", 12"
- Mounting position vertical mounting position
- yes
- MTBF of the backlighting at 25 °C [h]
- 80000
- Net Weight in Kg
- 2.5
- Number of interfaces acc. to RS 232
- 1
- Operating system pre-installed
- Yes
- Operating system pre-installed Windows 7
- yes
- Operating system pre-installed Windows XP Professional
- yes
- product brand name
- SIMATIC
- Product category
- Panel PC
- Product component Alphanumeric keyboard
- no
- Product component numerical keyboard
- no
- Product component Operating system embedded Windows XP
- yes
- Product family
- IPC277
- Product function customer-specific configuration
- yes
- Product function fan monitoring
- no
- Produktbestandteil Funktionstasten
- no
- Protection class IP on the front
- IP65
- Protection class IP Rear side
- IP20
- Screen diagonal [in]
- 9
- Storage capacity of the main memory or RAM maximum [Mbyte]
- 2000
- Type of hard disk drive
- CF or SSD
- type of the fitting/ mount/ assembly
- Panel PC, built-in unit
- Type of voltage of the supply voltage
- 24 V DC
