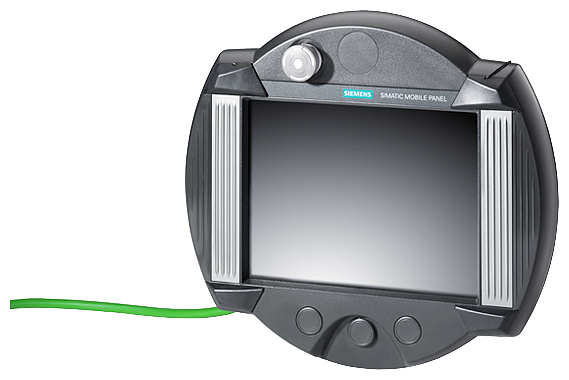

Siemens 6AV66450BE020AX0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIMATIC MOBILE PANEL 277 10 W. INTEGRATED ENABLING BUTTON, STOP BUTTON AND TOUCH, CONFIGURABLE WITH WINCC FLEXIBLE STANDARD VERSION 2008 AND HIGHERMOBILE PANEL 277 10
Siemens 6AV66450BE020AX0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Connection, pluggable
- true
- Country of Origin
- AT
- Degree of protection (IP)
- IP65
- Depth
- 103 mm
- Height
- 320 mm
- IO link master
- false
- Max. height of fall (in accordance with IEC 60068-2-32)
- 1 m
- Number of buttons with LED
- 0
- Number of colours of the display
- 65536
- Number of function buttons, programmable
- 0
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces other
- 0
- Number of HW-interfaces parallel
- 0
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 0
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces Wireless
- 0
- Number of interfaces PROFINET
- 1
- Number of online languages
- 16
- Number of password levels
- 50
- Number of pixels, horizontal
- 800
- Number of pixels, vertical
- 600
- Number of system buttons
- 0
- Operation temperature
- 0 °C
- Process default value (input) possible
- true
- Process value representation (output) possible
- true
- Radio standard Bluetooth
- false
- Radio standard GPRS
- false
- Radio standard GSM
- false
- Radio standard UMTS
- false
- Radio standard WLAN 802.11
- false
- Screen diagonal
- 10.4 inch
- Suitable for emergency stop
- false
- Suitable for safety functions
- true
- Supply voltage DC
- 20.4 V
- Supporting protocol for ASI
- false
- Supporting protocol for AS-Interface Safety at Work
- false
- Supporting protocol for CAN
- false
- Supporting protocol for Data-Highway
- false
- Supporting protocol for DeviceNet
- false
- Supporting protocol for DeviceNet Safety
- false
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for Foundation Fieldbus
- false
- Supporting protocol for INTERBUS
- false
- Supporting protocol for INTERBUS-Safety
- false
- Supporting protocol for KNX
- false
- Supporting protocol for LON
- false
- Supporting protocol for MODBUS
- true
- Supporting protocol for other bus systems
- true
- Supporting protocol for PROFIBUS
- true
- Supporting protocol for PROFINET CBA
- false
- Supporting protocol for PROFINET IO
- true
- Supporting protocol for PROFIsafe
- false
- Supporting protocol for SafetyBUS p
- false
- Supporting protocol for SERCOS
- false
- Supporting protocol for SUCONET
- false
- Supporting protocol for TCP/IP
- true
- Type of display
- TFT
- Useful project memory/user memory
- 6000 kByte
- Voltage type of supply voltage
- DC
- Weight
- 2.3 kg/m²
- Width
- 350 mm
- With alpha numeric keyboard
- false
- With colour display
- true
- With enabling button/emergency-stop switch
- true
- With message indication
- true
- With message system (incl. buffer and confirmation)
- true
- With printer output
- false
- With recipes
- true
- With touch screen
- true
