Description

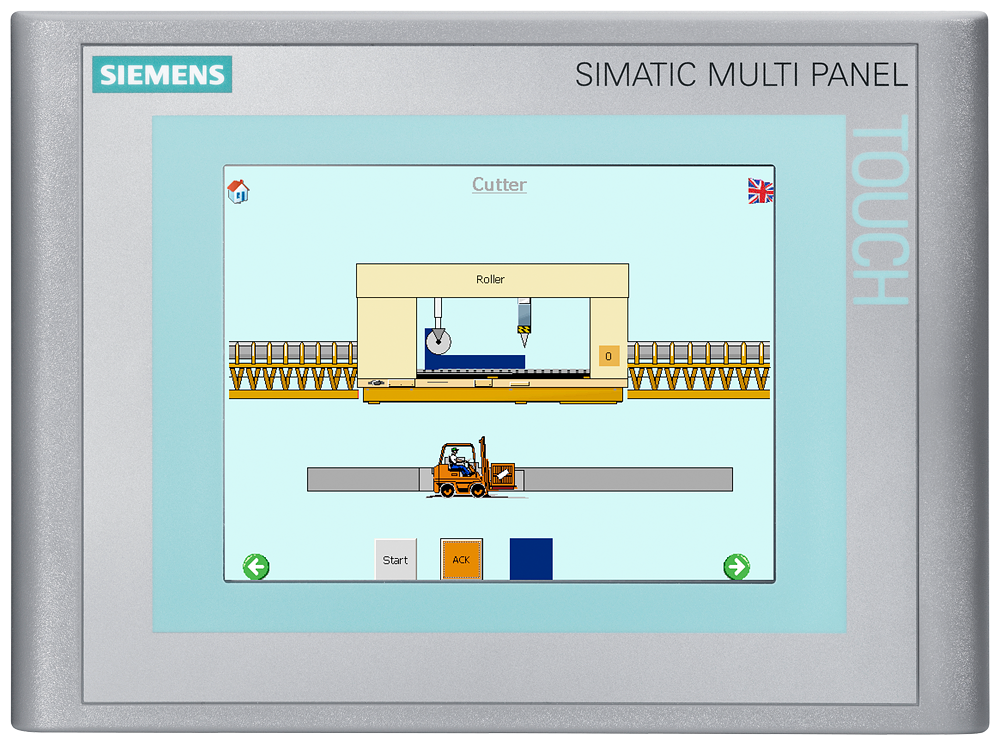

SIMATIC MP 177 6 TOUCH MULTI PANEL W. RETENTIVE MEMORY 5,7 TFT DISPLAY 2 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE 2008 STANDARD OR HIGHERPANEL MP177-6 RET MEM, WINCC FLX 2008+
Siemens 6AV66420EA013AX0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Additional software components, loadable present
- true
- Alpha keyboard present
- true
- Bearing track assembly possible
- false
- Brand
- SIMATIC
- Country of Origin
- DE
- Degree of protection (IP), front side
- IP65
- description of product type
- MP177
- Display, color present
- true
- Display type
- TFT
- Formulations present
- true
- Height of front
- 156 millimetre
- Installation depth
- 45 millimetre
- IO-link master present
- false
- Manufacturer name
- Siemens
- Manufacturer product family
- HMI
- Manufacturer product root
- Multi Panel
- max. number of pixels, horizontal
- 320
- max. number of pixels, vertical
- 240
- Max. operating temperature
- 50 degree_Celsius
- max. supply voltage with DC
- 28.8 volt
- Message display present
- true
- Messaging system (including buffer and acknowledgement) present
- true
- Min. operating temperature
- 0 degree_Celsius
- min. supply voltage with DC
- 20 volt
- Monitor diagonal
- 5.7 inch
- number of buttons with LED
- 0
- Number of colors/shades of gray of the display
- 65536
- number of grey scales
- 0
- Number of HW interfaces Industrial Ethernet
- 1
- Number of HW interfaces, other
- 0
- Number of HW interfaces parallel
- 0
- Number of HW interfaces PROFINET
- 1
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 1
- Number of HW interfaces serial RS485
- 1
- Number of HW interfaces serial TTY
- 0
- Number of HW interfaces Wireless
- 0
- Number of levels, password protection
- 50
- Number of online languages.
- 5
- number of programmable function keys
- 0
- number of system buttons
- 0
- numeric keyboard present
- true
- Pressure output present
- true
- Process value display (output) possible
- true
- Process value provision (input) possible
- true
- suitable for safety functions
- false
- Supply voltage type
- DC
- SW interfaces present
- false
- Touch screen present
- true
- useable project memory/user memory
- 2000 kilobyte
- wall mounting/direct mounting possible
- false
- Width of front
- 212 millimetre
