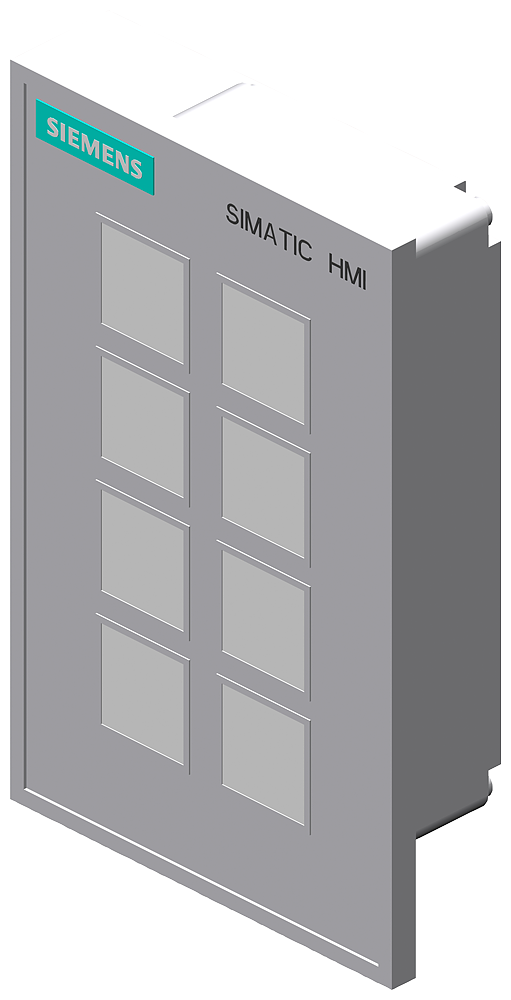

Siemens 6AV21271AB000LX1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIMATIC HMI KP8 PN LX. 8 short-stroke switches long. 1-6 mm sheet thickness. PN interfaces. black neutral design. 8 configurable DI/DQ pins. 24 V DC can be looped through. parameterizable as of STEP 7 V5.5SIMATIC HMI KP8 PN LX 6mm
Siemens 6AV21271AB000LX1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bearing track assembly possible
- false
- Brand
- SIMATIC
- Country of Origin
- DE
- Degree of protection (IP), front side
- IP64
- description of product type
- Key Panel KP8 PN LX (1 ... 6 mm)
- Front installation possible
- true
- Height of front
- 252 millimetre
- Installation depth
- 68 millimetre
- IO-link master present
- false
- Key and signal lamp test present
- true
- Keys, parametrizable present
- true
- Manufacturer name
- Siemens
- Manufacturer product family
- HMI
- Manufacturer product root
- Key Panel
- Max. operating temperature
- 60 degree_Celsius
- max. supply voltage with DC
- 28.8 volt
- Min. operating temperature
- 0 degree_Celsius
- min. supply voltage with DC
- 20 volt
- Number of color modes for LED
- 5
- Number of (depressable) keys
- 8
- Number of HW interfaces Industrial Ethernet
- 2
- Number of HW interfaces, other
- 0
- Number of HW interfaces parallel
- 0
- Number of HW interfaces PROFINET
- 2
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Number of HW interfaces serial TTY
- 0
- Number of HW interfaces Wireless
- 0
- Number of inputs, digital
- 8
- Number of outputs, digital
- 8
- Number of places for signaling and control devices
- 0
- Number of signal lamps
- 8
- Optical interface present
- false
- Rack-assembly possible
- false
- suitable for safety functions
- false
- Supply voltage type
- DC
- wall mounting/direct mounting possible
- false
- Width of front
- 41 millimetre
