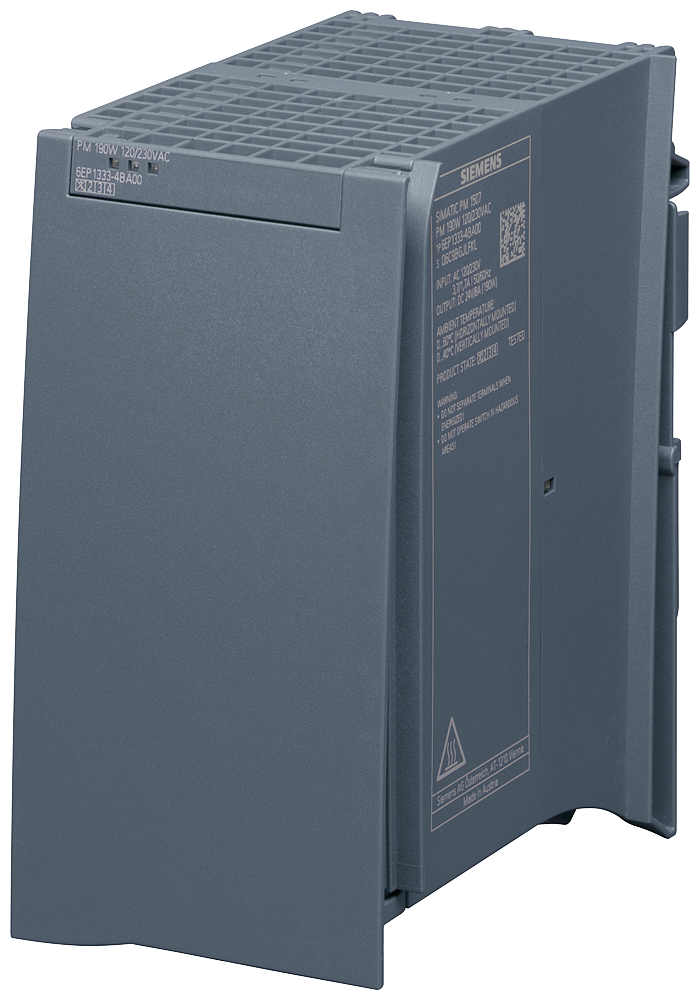

Siemens 6AG13334BA007AA0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Siemens 6AG13334BA007AA0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bearing track assembly possible
- false
- Country of Origin
- DE
- Depth
- 129 millimetre
- description of product type
- S7-1500 Power Module
- designed as short-circuit-proof
- true
- Design of electrical connection
- Screw/spring connection
- Direct assembly/mounting possible
- false
- Height
- 147 millimetre
- Installation height
- 205 millimetre
- Installation width
- 75 millimetre
- max. 1. output voltage
- 24 volt
- max. output current 1
- 8 ampere
- max. rated supply voltage with AC 50 Hz
- 230 volt
- max. rated supply voltage with AC 60 Hz
- 120 volt
- min. 1. output voltage
- 24 volt
- min. rated supply voltage with AC 50 Hz
- 230 volt
- min. rated supply voltage with AC 60 Hz
- 120 volt
- Net weight
- 1 kilogram
- nominal value 1. output voltage
- 24 volt
- nominal value output current 1
- 8 ampere
- Output voltage adjustable
- false
- Output voltage for SPC is regulated
- true
- power consumption
- 21 volt ampere
- Power loss, static, current-independent [Pls]
- 21 watt
- Power output
- 192 watt
- Product name
- SIPLUS S7-1500 PM1507
- Protection type IP
- IP20
- stabilized
- true
- suitable for series installation
- true
- Supply voltage type
- AC
- Wall assembly possible
- false
- Width
- 75 millimetre
