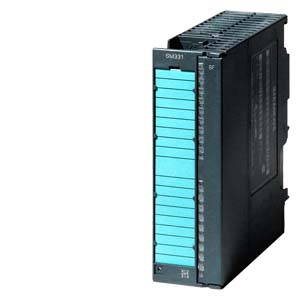

Siemens 6AG1331-7PF01-4AB0

Additional Product Information

• Commodity Code
  • 85389091
• Country of origin
  • Germany
• EAN
  • 4042948571156
• LKZ_FDB/ CatalogID
  • A&DSE/SIP ADD
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 4646
• Returnable
  • No
• RoHS Compliance
  • Since: 01/01/2012
• UPC
  • 40892970616

Delivery Information

• Delivery Time
  • 22 Day/Days
• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 0,734 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • 5,197 x 6,024 x 2,008
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• A/D resolution at the analog input [bit]
  • 16
• A/D resolution at the analog input including overdrive area and sign per channel maximum [bit]
  • 16
• Alert function Diagnostics alarm
  • yes
• Alert function Diagnostics alarm Note
  • Parameterizable per group
• Alert function Limit value alarm
  • yes
• Alert function Limit value alarm Note
  • Parameterizable
• Alert function Process alarm
  • yes
• Alert function Process alarm Note
  • Parameterizable, channels 0 to 7
• Ambient condition relating to ambient temperature - air pressure - installation altitude
  • Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m) // Tmin ... (Tmax - 10K) at 795 hPa ... 658 hPa (+2000 m ... +3500 m) // Tmin ... (Tmax - 20K) at 658 hPa ... 540 hPa (+3500 m ... +5000 m)
• Ambient temperature during operation maximum [°C]
  • 60
• Ambient temperature during operation maximum Note
  • = Tmax
• Ambient temperature during operation minimum [°C]
  • 0
• Ambient temperature during operation minimum Note
  • = Tmin
• Ambient temperature during storage and transport maximum [°C]
  • 70
• Ambient temperature during storage and transport minimum [°C]
  • -40
• Basic performance time for conversion at the analog input for all channels [µs]
  • 200000
• Certificate of suitability CE marking
  • yes
• Certificate of suitability C-Tick
  • yes
• Certificate of suitability EAC approval
  • yes
• Certificate of suitability FM registration
  • yes
• Certificate of suitability FM registration Note
  • CofC 3028431
• Certificate of suitability KC approval
  • yes
• Certificate of suitability Railway application in accordance with EN 50121-4
  • no
• Certificate of suitability Railway application in accordance with EN 50155
  • no
• Certificate of suitability UL approval
  • yes
• Certificate of suitability UL approval Note
  • File E239877
• Connector type on the front required
  • 40-pin
• Consumed current from backplane bus at DC at 5 V maximum [mA]
  • 100
• Consumed current from load voltage L+ without load maximum [mA]
  • 240
• Depth [mm]
  • 120
• Design of the sensor at the analog input is supported Resistor temperature sensor
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Cu 10
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor LG-Ni 1000
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Ni 100
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Ni 1000
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Ni 120
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Ni 200
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Ni 500
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Pt 100
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Pt 1000
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Pt 200
  • yes
• Design of the sensor at the analog input is supported Resistor temperature sensor Pt 500
  • yes
• Design of the sensor at the analog input is supported Thermocouple
  • no
• Design of the sensor at the analog input is supported Thermocouple type B
  • no
• Design of the sensor at the analog input is supported Thermocouple type C
  • no
• Design of the sensor at the analog input is supported Thermocouple type E
  • no
• Design of the sensor at the analog input is supported Thermocouple type J
  • no
• Design of the sensor at the analog input is supported Thermocouple type K
  • no
• Design of the sensor at the analog input is supported Thermocouple type L
  • no
• Design of the sensor at the analog input is supported Thermocouple type N
  • no
• Design of the sensor at the analog input is supported Thermocouple type R
  • no
• Design of the sensor at the analog input is supported Thermocouple type S
  • no
• Design of the sensor at the analog input is supported Thermocouple type T
  • no
• Design of the sensor at the analog input is supported thermocouple type TXK/TXK(L) according to GOST
  • no
• Design of the sensor at the analog input is supported Thermocouple type U
  • no
• Diagnostics function Diagnostics information readable
  • yes
• Display version for diagnostic function: group error SF LED red
  • yes
• Equipment marking acc. to DIN EN 81346-2
  • K
• Explosion protection category for dust
  • No
• Explosion protection category for gas
  • FM, UL Haz. Loc. for Div. 2 / Zone 2, ATEX for Zone 2
• Explosion protection marking for intrinsic safety of related equipment EEx ia
  • no
• Explosion protection marking for intrinsic safety of related equipment EEx ib
  • no
• Galvanic isolation at the analog inputs between the channels
  • no
• Galvanic isolation at the analog inputs between the channels and backing bus
  • yes
• Galvanic isolation at the analog inputs between the channels and voltage supply of the electronics
  • yes
• Height [mm]
  • 125
• Input current at the analog input 0 mA ... 20 mA
  • no
• Input current at the analog input -10 mA ... 10 mA
  • no
• Input current at the analog input -20 mA ... 20 mA
  • no
• Input current at the analog input -3.2 mA ... 3.2 mA
  • no
• Input current at the analog input 4 mA ... 20 mA
  • no
• Input variable at the analog input Current signal
  • no
• Input variable at the analog input signal with variable resistor
  • yes
• Input variable at the analog input voltage
  • no
• Input voltage at analog input as voltage input maximum permissible Note
  • 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20)
• Input voltage at analog input as voltage input maximum permissible [V]
  • 75
• Input voltage at the analog input 0 V ... 10 V
  • no
• Input voltage at the analog input -10 V ... 10 V
  • no
• Input voltage at the analog input 1 V ... 10 V
  • no
• Input voltage at the analog input -1 V ... 1 V
  • no
• Input voltage at the analog input 1 V ... 5 V
  • no
• Input voltage at the analog input -250 mV ... 250 mV
  • no
• Input voltage at the analog input -2.5 V ... 2.5 V
  • no
• Input voltage at the analog input -500 mV ... 500 mV
  • no
• Input voltage at the analog input -50 mV ... 50 mV
  • no
• Input voltage at the analog input -5 V ... 5 V
  • no
• Input voltage at the analog input -80 mV ... 80 mV
  • no
• Load resistance at the analog input 0 Ω ... 150 Ω
  • yes
• Load resistance at the analog input 0 Ω ... 300 Ω
  • yes
• Load resistance at the analog input 0 Ω ... 600 Ω
  • yes
• Load voltage from supply voltage L+ at DC Rated value [V]
  • 24
• Near-end crosstalk between the inputs minimum [dB]
  • 100
• Net Weight in Kg
  • 0.333
• Number of analog inputs
  • 8
• Number of analog inputs for resistance measurement
  • 8
• Number of channels at the analog input per potential group
  • 2
• Power loss [W] typical [mW]
  • 4600
• product brand name
  • SIPLUS
• Product category
  • Analog module input
• Product family
  • S7-300
• Product function at the analog input A/D integration time parameterizable
  • yes
• Product function at the analog input parameterizable curve linearity
  • yes
• Product function Diagnostics function
  • yes
• Product function Diagnostics function Note
  • Parameterizable
• Product function for available voltage 1L+ Reverse polarity protection
  • yes
• Product function for available voltage L+ Reverse polarity protection
  • yes
• Product function smoothing parameterizable
  • yes
• Relative humidity with condensation acc. to IEC 60068-2-38 maximum [%]
  • 100
• Relative humidity with condensation acc. to IEC 60068-2-38 maximum Note
  • RH incl. condensation/frost (no commissioning under condensation conditions)
• Relative symmetrical basic error limit of the measured variable resistance relative to input range acc. to EN 61131 [%]
  • 0.05
• Relative symmetrical basic error limit relative to input range for resistance thermometers acc. to EN 61131 Note
  • =+/- 0,5 K
• Relative symmetrical linearity deviation relative to input range [%]
  • 0.02
• Relative symmetrical operational limit of the measured variable resistance relative to input range acc. to EN 61131 [%]
  • 0.1
• Relative symmetrical operational limit relative to input range for resistance thermometers acc. to EN 61131 Note
  • =+/- 1 K
• Relative symmetrical repeat accuracy relative to input range in settled state at 25 °C [%]
  • 0.01
• Resistance to biologically active substances conformity acc. to EN 60721-3-3
  • yes
• Resistance to biologically active substances conformity acc. to EN 60721-3-3 Note
  • Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!
• Resistance to chemically active substances conformity acc. to EN 60721-3-3
  • yes
• Resistance to chemically active substances conformity acc. to EN 60721-3-3 Note
  • Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!
• Resistance to mechanically active substances conformity acc. to EN 60721-3-3
  • yes
• Resistance to mechanically active substances conformity acc. to EN 60721-3-3 Note
  • Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!
• Temperature drift per K relative to input range [%/K]
  • 0.005
• Type of electrical connection
  • Screw/spring-type terminal
• Type of isolation test
  • 500 V DC
• Type of smoothing level medium
  • yes
• Type of smoothing level none
  • yes
• Type of smoothing level strong
  • yes
• Type of smoothing level weak
  • yes
• Width [mm]
  • 40
• Wire length at the analog input shielded maximum [m]
  • 200
