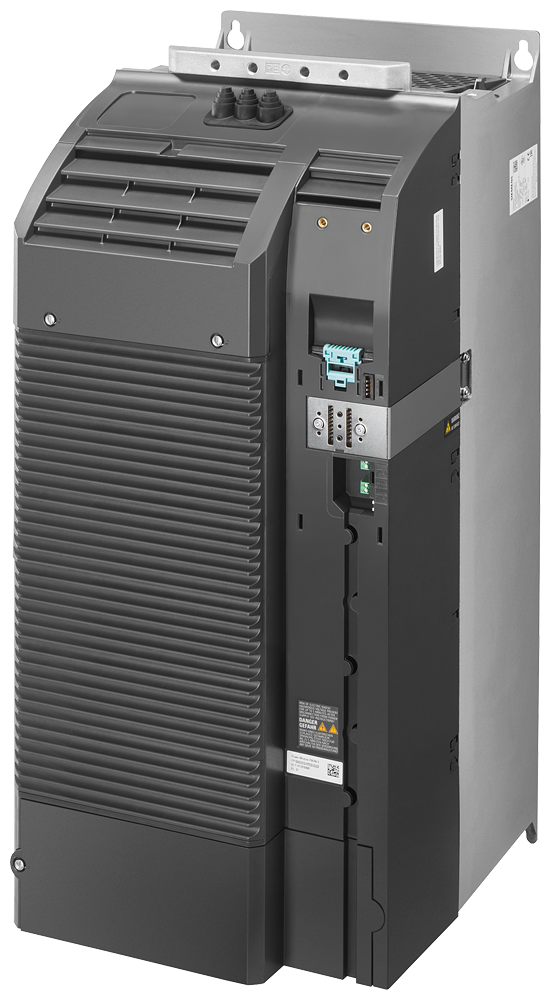

Siemens 6AG12101PE322UL0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIPLUS PM240-2 -20 bis +50°C (HO) -20 bis +40°C (LO) with conformal coating based on 6SL3210-1PE32-5UL0 . with builtin CL. A FILTER with built in braking chopper 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S.150% 57S.100% 240S OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S. 110% 57S.100% 240S 708 X 305 X 357 (HXWXD). FSF PROTECTION IP20 WITHOUT CU AND PANEL APPROVED FOR CU FW- VERSION V4.7 HF8 V4.7 HF8SIPLUS PM240-2 IP20-FSF-U-400V-132kW
Siemens 6AG12101PE322UL0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 4 quadrant operation possible
- false
- Base load current at high overload
- 218 ampere
- Base load current at low overload
- 242 ampere
- Brake chopper integrated
- true
- Brand
- SIPLUS
- Country of Origin
- DE
- Depth
- 357 millimetre
- description of product type
- PM240-2
- design
- FSF 132 kW
- Design of frequency changer
- U converter
- Height
- 708 millimetre
- Input phase number
- 3
- max. mains voltage
- 480 volt
- Max. output frequency
- 550 hertz
- max. output power with linear load and rated output voltage
- 110 kilowatt
- max. output power with square load at rated output voltage
- 132 kilowatt
- max. rated operating current Ie
- 242 ampere
- Min. network voltage
- 380 volt
- Net weight
- 61 kilogram
- Output phases, number of
- 3
- Power loss, static, current-independent [Pls]
- 48.1 watt
- Protection type IP
- IP20
- Rated output current
- 250 ampere
- Rated output voltage
- 400 volt
- Relative symmetric mains frequency tolerance
- 5 percent
- Relative symmetric mains voltage tolerance
- 10 percent
- Use in the industrial area permissible
- false
- Use in the residential and commercial area permissible
- false
- Width
- 305 millimetre
