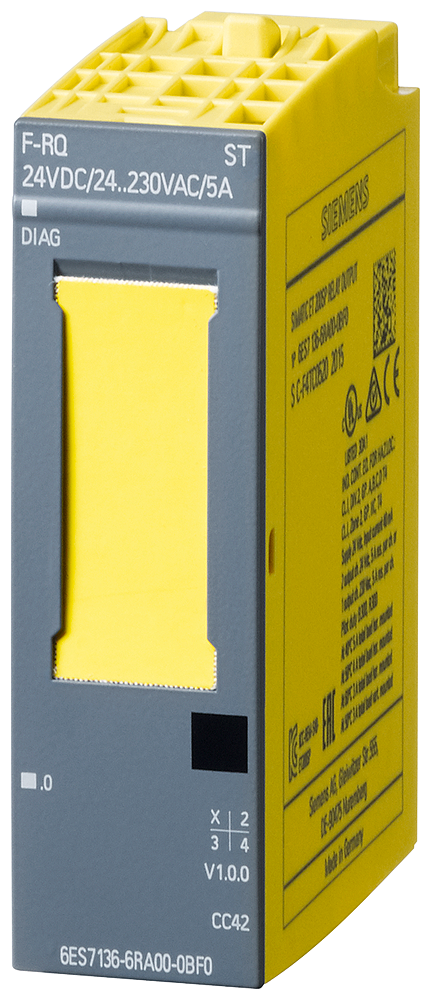

Siemens 6AG11366RA002BF0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIPLUS ET 200SP F-RQ 24 V DC/24-230 V AC/5 A -25...+60 °C Start-up -25 °C with conformal coating based on 6ES7136-6RA00-0BF0 . F-RQ 1x 24 V DC/24..230V AC/5A ST. 20 mm overall width. 1 relay output (2 NO) Summation output current 5 A. load voltage 24 V DC and 24.. 230 V AC. Can be used up to PL E (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if control takes place by (e.g. 6AG1136-6DB00-2CA0) F-DQSIPLUS ET 200SP F-RQ 24VDC/24-230VAC/5A
Siemens 6AG11366RA002BF0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bearing track assembly possible
- true
- Brand
- SIPLUS
- Corresponding operating medium (Ex ia)
- false
- Corresponding operating medium (Ex ib)
- false
- Country of Origin
- DE
- Depth
- 58 millimetre
- description of product type
- F-RQ 1x24 V DC/24 ... 230 V AC/5 A
- Design of digital output
- Relay
- digital outputs, configurable
- true
- Field bus connection possible via separate bus couplers
- true
- Front installation possible
- false
- Functional safety (SIL)
- SIL 3
- Height
- 73 millimetre
- IO-link master present
- false
- Manufacturer name
- Siemens
- Manufacturer product family
- ET 200SP
- Manufacturer product root
- Digital module output
- Max. perm. voltage
- 264 volt
- max. supply voltage with DC
- 28.8 volt
- min. permissible voltage at output
- 20 volt
- min. supply voltage with DC
- 20 volt
- Number of HW interfaces Industrial Ethernet
- 0
- Number of HW interfaces, other
- 0
- Number of HW interfaces parallel
- 0
- Number of HW interfaces PROFINET
- 0
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Number of HW interfaces serial TTY
- 0
- Number of HW interfaces Wireless
- 0
- Number of inputs
- 0
- Number of inputs, digital
- 0
- Number of outputs
- 1
- Number of outputs, digital
- 1
- Optical interface present
- false
- Output voltage type
- AC/DC
- Performance level acc. to EN ISO 13849-1
- E
- Power loss, static, current-independent [Pls]
- 1 watt
- Protection type IP
- IP20
- Rack-assembly possible
- false
- suitable for safety functions
- true
- Supply voltage type
- DC
- System components present
- true
- wall mounting/direct mounting possible
- false
- Width
- 20 millimetre
