Siemens 6AG11366DB002CA0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

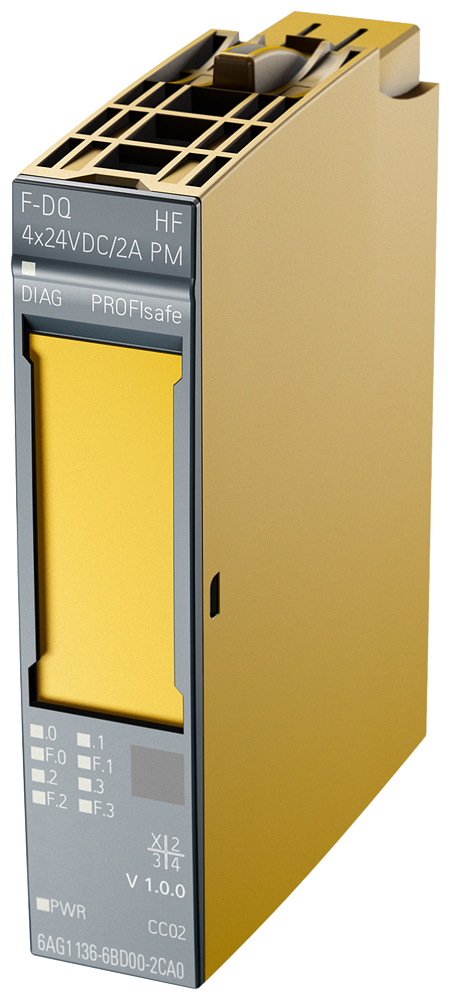

SIPLUS ET 200SP -25 ... +60 DEGREE WITH CONFORMAL COATING BASEDON 6ES7136-6DB00-0CA0 . ELECTRONIC MODULE, 4 F-DQ PROFISAFE, DC 24V/2A, 15 MM WIDTH, UP TO PL E (ISO 13849), UP TO SIL 3 (IEC 61508)SIPLUS ET 200SP F-DQ 4X24VDC/2A PM HF
Siemens 6AG11366DB002CA0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Appendant operation agent (Ex ia)
- false
- Appendant operation agent (Ex ib)
- false
- Country of Origin
- DE
- Degree of protection (IP)
- IP20
- Depth
- 58 mm
- Digital outputs configurable
- true
- Explosion safety category for dust
- null
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Fieldbus connection over separate bus coupler possible
- true
- Front build in possible
- false
- Height
- 73 mm
- IO link master
- false
- Number of digital inputs
- 0
- Number of digital outputs
- 4
- Number of HW-interfaces industrial Ethernet
- 0
- Number of HW-interfaces other
- 0
- Number of HW-interfaces parallel
- 0
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of HW-interfaces serial TTY
- 0
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces Wireless
- 0
- Number of interfaces PROFINET
- 0
- Output current
- 2 A
- Performance level acc. EN ISO 13849-1
- Level e
- Permitted voltage at output
- 19.2 V
- Rack-assembly possible
- false
- Radio standard Bluetooth
- false
- Radio standard GPRS
- false
- Radio standard GSM
- false
- Radio standard UMTS
- false
- Radio standard WLAN 802.11
- false
- Rail mounting possible
- true
- Short-circuit protection, outputs available
- true
- SIL according to IEC 61508
- 3
- Suitable for safety functions
- true
- Supply voltage DC
- 20.4 V
- Supporting protocol for ASI
- false
- Supporting protocol for AS-Interface Safety at Work
- false
- Supporting protocol for CAN
- false
- Supporting protocol for Data-Highway
- false
- Supporting protocol for DeviceNet
- false
- Supporting protocol for DeviceNet Safety
- false
- Supporting protocol for EtherNet/IP
- false
- Supporting protocol for Foundation Fieldbus
- false
- Supporting protocol for INTERBUS
- false
- Supporting protocol for INTERBUS-Safety
- false
- Supporting protocol for KNX
- false
- Supporting protocol for LON
- false
- Supporting protocol for MODBUS
- false
- Supporting protocol for other bus systems
- false
- Supporting protocol for PROFIBUS
- false
- Supporting protocol for PROFINET CBA
- false
- Supporting protocol for PROFINET IO
- false
- Supporting protocol for PROFIsafe
- true
- Supporting protocol for SafetyBUS p
- false
- Supporting protocol for SERCOS
- false
- Supporting protocol for SUCONET
- false
- Supporting protocol for TCP/IP
- false
- System accessory
- true
- Type of digital output
- Other
- Type of electric connection
- Plug-in connection
- Type of output voltage
- DC
- Voltage type of supply voltage
- DC
- Wall mounting/direct mounting
- false
- Width
- 15 mm
- With optical interface
- false
