Siemens 5UB1511
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

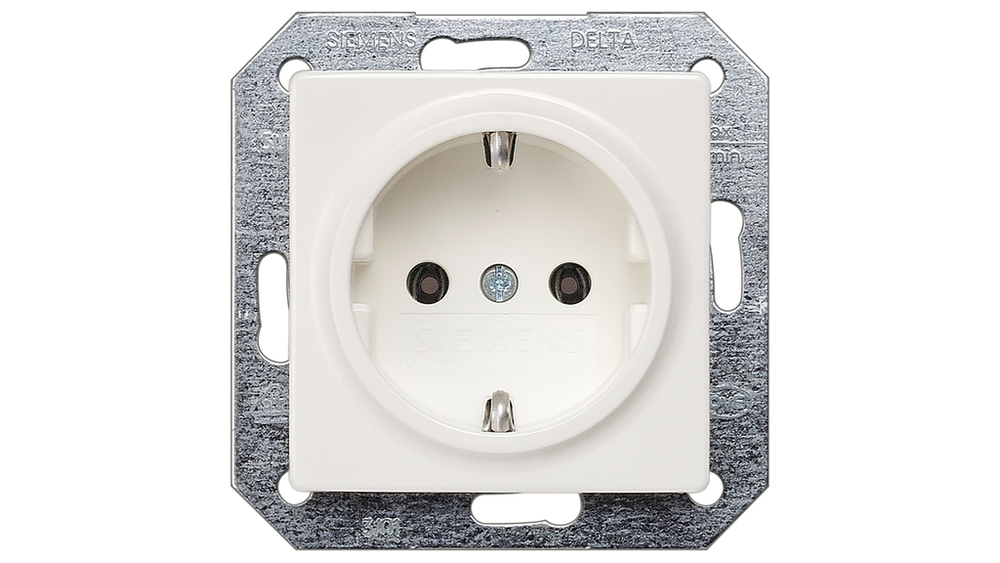

DELTA i-system titanium white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals cover plate 55 x 55 mm
Siemens 5UB1511 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Product Information
- Commodity Code
- 85369010
- Compliance with the Substance Restrictions According to RoHS Directive
- Given
- Country Of Origin
- Spain
- EAN
- 4001869051550
- LKZ_FDB/ CatalogID
- I2/ET-D1
- Product Class
- B: return restricted, please contact your Siemens partner/contact
- Product Group
- 5571
- REACH Art. 33 Duty of Information
- Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead; Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
- UPC
- Not available
- WEEE (2012/19/EU) Take-Back Obligation
- Yes
Appearance
- Color
- White
Connections
- Arrangement of Contacts / Diagonal
- No
- Type of Electrical Connection
- Plug Terminal
Delivery Information
- Export Control Regulations
- AL : N / ECCN : N
- Net Weight (kg)
- 0,077 Kg
- Package Size Unit of Measure
- MM
- Packaging Dimension
- 50,00 x 85,00 x 90,00
- Packaging Quantity
- 1
- Product Dimensions (W x L x H)
- Not available
- Quantity Unit
- 1 Piece
- Standard Lead Time Ex-works
- 2 Day/Days
General Technical Data
- Marking / of Socket Outlet
- without imprint
- Material
- Thermoplastic
- Mounting Type
- fixing with claw and screw
- Surface Processing
- others
Main Circuit
- Operating Current / Rated Value
- 16 A
- Operating Voltage / Rated Value
- 250 V
Mechanical Design
- Depth
- 45 mm
- Height
- 70 mm
- Material / of the Enclosure
- plastic
- Mounting Type
- flush mounted
- Width
- 70 mm
Model
- Cover Version
- central plate
- Design of the Phase Tap
- No
- Design of the Socket / According to VDE 0620 for Severe Conditions
- No
- Design of the Special Power Supply Unit
- without special current supply
Product
- Article Number (Market Facing Number)
- 5UB1511
- Product Family
- Socket Outlets
Product Component
- Ejection Equipment
- No
- Fault Current Protection
- No
- Hinged Lid
- No
- Increased Touch Protection
- No
- Integrated / Functional Lighting
- No
- Integrated / Light Source
- No
- Integrated / Orientation Lighting
- No
- Labeling Field
- No
- Miniature Fuse
- No
Product Feature
- Halogen-Free
- Yes
- Lockable
- No
- Transparent
- No
Product Function
- Overvoltage Protection
- No
- Socket Selectable
- No
Protection Class
- Protection Class IP
- IP20
