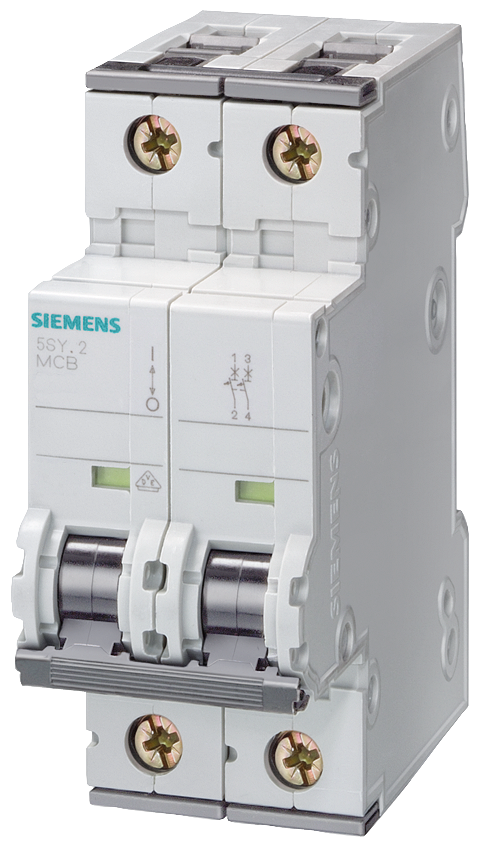

Siemens 5SY4232-6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SUPPLEMENTARY PROTECTOR,2P,32A,CURVE B Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 32 Amps, 480 VAC, Trip Characteristic Curve B, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2SUP PTOR 5SY4 2P 480V 32A 5K B-TRIP
Siemens 5SY4232-6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Additional equipment possible
- true
- Ambient temperature during operating
- -40 °C
- Built-in depth
- 70 mm
- Concurrently switching N-neutral
- false
- Connectable conductor cross section multi-wired
- 0.75 mm²
- Connectable conductor cross section solid-core
- 0.75 mm²
- Country of Origin
- DE
- Current limiting class
- 3
- Degree of protection (IP)
- IP20
- Explosion-proof
- false
- Flush-mounted installation
- false
- Number of poles (total)
- 2
- Over voltage category
- 3
- Pollution degree
- 3
- Rated current
- 32 A
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V
- 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V
- 10 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V
- 20 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
- 20 kA
- Rated voltage
- 400 V
- Release characteristic
- B
- Voltage type
- AC
- Width in number of modular spacings
- 2
