Siemens 3VA2025-8KP36-0AA0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

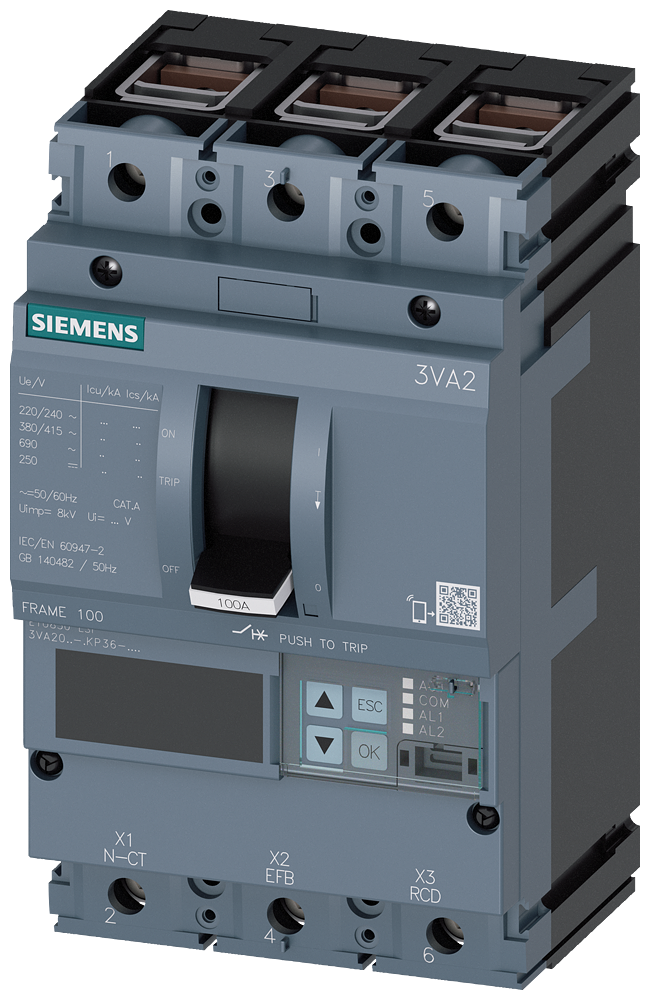

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA20 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 25A 3-POLE Icu: (24KAIC AT 690V) (150KAIC AT 415V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 4.1 x 7.1 x 4.2.BRKR 3VA20 3P 25A 150KA ETU8-LSI BOX
Siemens 3VA2025-8KP36-0AA0 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adjustment range short-term delayed short-circuit release
- 15 A
- Adjustment range undelayed short-circuit release
- 38 A
- Complete device with protection unit
- true
- Country of Origin
- CZ
- Degree of protection (IP)
- IP40
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- true
- Integrated earth fault protection
- false
- Motor drive integrated
- false
- Motor drive optional
- true
- Number of auxiliary contacts as change-over contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Number of poles
- 3
- Overload release current setting
- 10 A
- Position of connection for main current circuit
- Front side
- Rated permanent current Iu
- 25 A
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 150 kA
- Rated voltage
- 690 V
- Suitable for DIN rail (top hat rail) mounting
- true
- Type of control element
- Rocker lever
- Type of electrical connection of main circuit
- Frame clamp
- With integrated under voltage release
- false
- With switched-off indicator
- false
