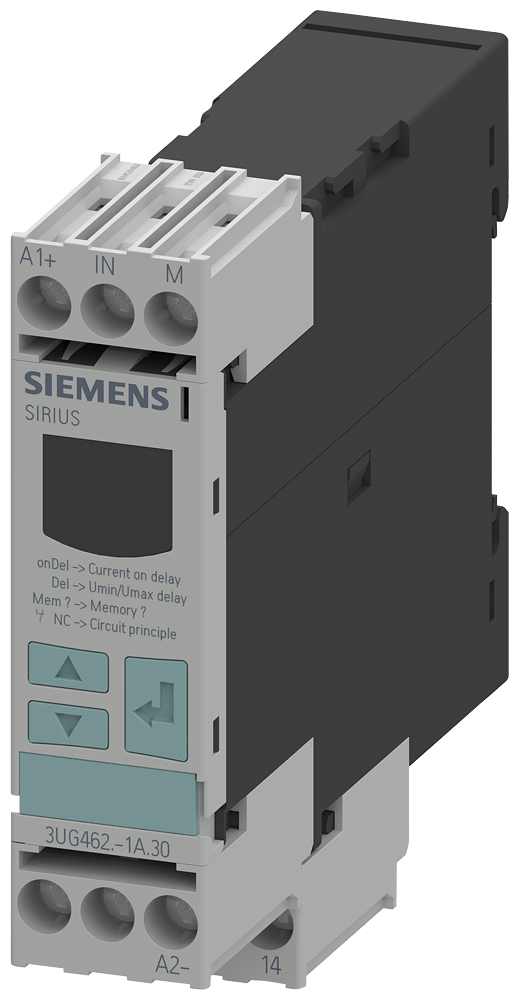

Siemens 3UG4621-1AW30
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Siemens 3UG4621-1AW30 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Contains function DC-voltage over current
- true
- Contains function DC-voltage under current
- true
- Country of Origin
- DE
- Current measurement range
- 0.003 kA
- Depth
- 91 mm
- Function DC-current hysteresis
- true
- Height
- 92 mm
- Max. permitted delay-on energization time
- 20 s
- Max. permitted off-delay time
- 20 s
- Min. adjustable delay-on energization time
- 0.1 s
- Min. adjustable off-delay time
- 0.1 s
- Number of contacts as change-over contact
- 1
- Number of contacts as normally closed contact
- 0
- Number of contacts as normally open contact
- 0
- Rated control supply voltage Us at AC 50HZ
- 20.4 V
- Rated control supply voltage Us at AC 60HZ
- 20.4 V
- Rated control supply voltage Us at DC
- 20.4 V
- Single-phase hysteresis possible
- false
- Single-phase over current possible
- true
- Single-phase under current possible
- true
- Three-phase hysteresis possible
- false
- Three-phase over current possible
- false
- Three-phase under current possible
- false
- Type of electric connection
- Screw connection
- Voltage type for actuating
- AC/DC
- Width
- 22.5 mm
