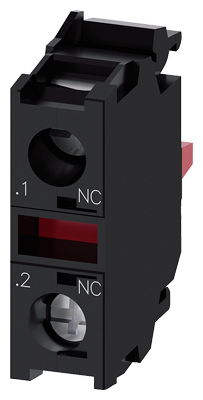

Siemens 3SU1400-1AA10-1CA0

Additional Product Information

• Article Number (Market Facing Number)
  • 3745170 | 3SU1400-1AA10-1CA0
• Commodity Code
  • 85365080
• Compliance with the Substance Restrictions According to RoHS Directive
  • Since: 01.10.2014
• Country Of Origin
  • Germany
• EAN
  • 4011209950887
• LKZ_FDB/ CatalogID
  • CC-IC10
• Product Class
  • A: Standard product which is a stock item could be returned within the returns guidelines/period.
• Product Group
  • 5452
• UPC
  • 804766073274

Ambient Conditions

• Ambient Temperature During Operation
  • -25 ... +70 °C
• Ambient Temperature During Storage
  • -40 ... +80 °C
• Environmental Category During Operation acc. to IEC 60721
  • 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

Auxiliary Circuit

• Design of the Contact of Auxiliary Contacts
  • Silver alloy
• Number of CO Contacts for Auxiliary Contacts
  • 0
• Number of NC Contacts for Auxiliary Contacts
  • 1
• Number of NC Contacts for Auxiliary Contacts Lagging Switching
  • 0
• Number of NO Contacts for Auxiliary Contacts
  • 0
• Number of NO Contacts for Auxiliary Contacts Leading Contact
  • 0
• Operating Current at AC-12 at 110 V
  • 10 A
• Operating Current at AC-12 at 230 V
  • 8 A
• Operating Current at AC-12 at 24 V
  • 10 A
• Operating Current at AC-12 at 400 V
  • 8 A
• Operating Current at AC-12 at 48 V
  • 10 A
• Operating Current at AC-15 at 110 V
  • 6 A
• Operating Current at AC-15 at 230 V
  • 6 A
• Operating Current at AC-15 at 24 V
  • 6 A
• Operating Current at AC-15 at 400 V
  • 3 A
• Operating Current at AC-15 at 48 V
  • 6 A
• Operating Current at AC-15 at 500 V
  • 1.4 A
• Operating Current at DC-12 at 110 V
  • 2.5 A
• Operating Current at DC-12 at 230 V
  • 1 A
• Operating Current at DC-12 at 24 V
  • 10 A
• Operating Current at DC-12 at 400 V
  • 0.3 A
• Operating Current at DC-12 at 48 V
  • 5 A
• Operating Current at DC-12 at 500 V
  • 0.3 A
• Operating Current at DC-13 at 110 V
  • 0.7 A
• Operating Current at DC-13 at 230 V
  • 0.3 A
• Operating Current at DC-13 at 24 V
  • 3 A
• Operating Current at DC-13 at 400 V
  • 0.1 A
• Operating Current at DC-13 at 48 V
  • 1.5 A
• Operating Current at DC-13 at 500 V
  • 0.1 A

Classifications

• eClass (9.1)
  • 27-37-13-02
• ETIM (7)
  • EC000041
• UNSPSC (15)
  • 39-12-22-21

Connections/Terminals

• At AWG Conductors
  • 2x (18 ... 14)
• Finely Stranded With Core End Processing
  • 2x (0.5 ... 1.5 mm²)
• Finely Stranded Without Core End Processing
  • 2x (1,0 ... 1,5 mm²)
• Solid with Core End Processing
  • 2x (0.5 ... 0.75 mm²)
• Solid without Core End Processing
  • 2x (1.0 ... 1.5 mm²)
• Tightening Torque with Screw-type Terminals
  • 0.8 ... 0.9 N·m
• Type of Electrical Connection
  • screw-type terminals

Delivery Information

• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (kg)
  • 0,01 Kg
• Package Size Unit of Measure
  • MM
• Packaging Dimension
  • 80,00 x 110,00 x 19,00
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece
• Standard Lead Time Ex-works
  • 1 Day/Days

General Technical Data

• Continuous Current of the C Characteristic MCB
  • 10 A
• Degree Of Pollution
  • 3
• Electrical Endurance (Switching Cycles)
  • 10 000 000
• Enclosure
  • IP40
• Input Voltage
  • AC/DC
• Insulation Voltage Rated Value
  • 500 V
• Mechanical Service Life (Switching Cycles)
  • 10 000 000
• Operating Frequency Maximum
  • 3 600 1/h
• Operating Voltage
  • AC/DC
• Operating Voltage AC at 50 Hz
  • 5 ... 500 V
• Operating Voltage AC at 60 Hz
  • 5 ... 500 V
• Operating Voltage DC
  • 5 ... 500 V
• Positive Opening
  • Yes
• Reference Code acc. to DIN EN 61346-2
  • S
• Reference Code acc. to DIN EN 81346-2
  • S
• Shock Resistance acc. to IEC 60068-2-27
  • Sinusoidal half-wave 50 g / 11 ms
• Shock Resistance for Railway Applications acc. to DIN EN 61373
  • Category 1, Class B
• Surge Voltage Resistance Rated Value
  • 6 kV
• Terminal
  • IP20
• Thermal Current
  • 10 A

Installation/ Mounting/ Dimensions

• Depth
  • 27.7 mm
• Height
  • 33.2 mm
• Mounting Type
  • Front plate mounting
• Width
  • 9.8 mm

Power Electronics

• Contact Reliability
  • One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Specifications

• Product Brand Name
  • SIRIUS ACT
• Product Designation
  • Contact module
• Product Type Designation
  • 3SU1
