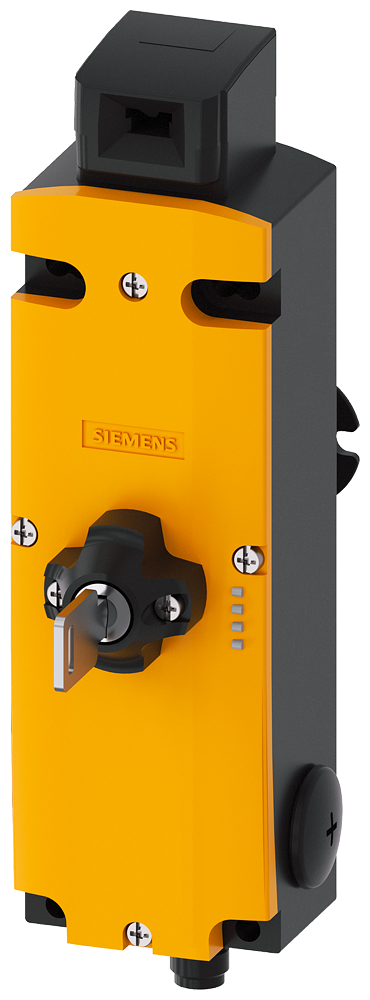

Siemens 3SF13141SH111BA1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAFETY POS. W. TUMBLER LOCKING FORCE 2600N, 5 DIR. OF APPROACH METAL ENCLOSURE, M12 CONNECTOR, ASISAFE INTEGRATED CH1=ACTUATOR 1NC, CH2=MAGNET 1NC SPRING-ACTUATED LOCK, ESCAPE RELEASE ON REAR AND AUX. RELEASE ON FRONT MAGNET VOLTAGE 24V DC/AC, MONITORING OF ACTUATOR 2NC/1NO, MONITORING OF MAGNET 2NC/1NO THE MATCHING SEPARATE ACTUATOR 3SE5000-0AV0 MUST BE ORDERED SEPARATELYSAFETY LIMIT SW, ASI, METAL, M12
Siemens 3SF13141SH111BA1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature during operating
- -25 °C
- Coating housing
- Lacquered
- Construction type housing
- Special construction
- Country of Origin
- DE
- Degree of protection (IP)
- IP65
- Explosion safety category for dust
- null
- Explosion safety category for gas
- null
- Guard locking force
- 2600 N
- Height of sensor
- 43.5 mm
- Length of sensor
- 185 mm
- Material housing
- Metal
- Number of safety auxiliary contacts
- 4
- Rated control supply voltage Us magnet drive at DC
- 24 V
- Suitable for safety functions
- true
- Type of electric connection
- Plug-in connection M12
- Type of guard locking
- Quiescent current principle
- Type of interface
- AS-Interface
- Type of interface for safety communication
- AS-Interface Safety at Work
- Type of switching contact
- Slow-action switch
- Width sensor
- 54 mm
- With escape release
- true
- With status indication
- true
