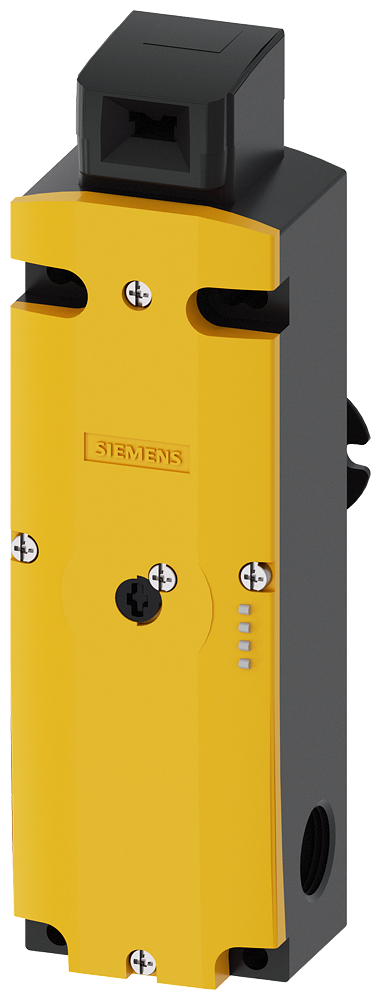

Siemens 3SE53221SG211AG4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Safety position switch with tumbler Locking force 1300 N 5 directions of approaches High degree of protection IP69. IEC 60529 Plastic enclosure. 3x(M20x1.5) Spring-locked Escape release from the rear and auxiliary release on front Magnet voltage 24 V DC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator Actuator 3SE5000-0AV0. please order separately Cable gland IP69 to be usedPOS.SW. W. SOL. INTERL. W.ESC.REL.FR.FRO
Siemens 3SE53221SG211AG4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Clamping force
- 1300 newton
- Country of Origin
- DE
- Design of electrical connection
- Screw connection
- Design of interface for security oriented communications.
- Without
- Design of the switching element
- Creep circuit element
- Emergency unlocking device present
- true
- Height of sensor
- 44 millimetre
- Housing construction form
- Special construction
- Interface design
- Without
- Length of sensor
- 185 millimetre
- max. ambient temperature during operation
- 60 degree_Celsius
- max. rated control voltage Us, magnetic drive with DC
- 24 volt
- min. ambient temperature during operation
- -25 degree_Celsius
- min. rated control voltage Us, magnetic drive with DC
- 24 volt
- Number of changers
- 0
- Number of safety-related auxiliary contacts
- 4
- Protection type IP
- IP67
- Rated operating current Ie DC-13, 125 V
- 0.55 ampere
- Rated operating current Ie DC-13, 24 V
- 3 ampere
- rated operating current Ie with AC-15, 24 V
- 6 ampere
- Status display present
- true
- suitable for safety functions
- true
- Type of interlock
- Bias current principle
- Width of sensor
- 54 millimetre
