Description

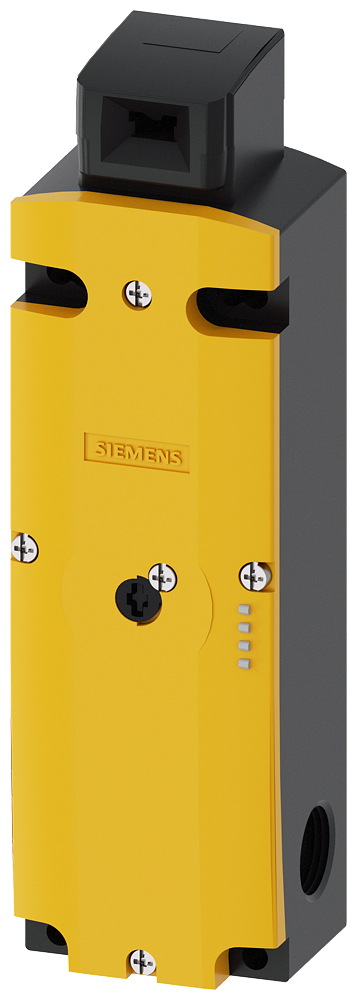

Siemens 3SE5322-2SD22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature during operating
- -25 °C
- Coating housing
- Uncoated
- Construction type housing
- Special construction
- Country of Origin
- DE
- Degree of protection (IP)
- IP66/IP67
- Explosion safety category for dust
- null
- Explosion safety category for gas
- null
- Guard locking force
- 1300 N
- Height of sensor
- 43.5 mm
- Length of sensor
- 185 mm
- Material housing
- Plastic
- Number of contacts as change-over contact
- 0
- Number of safety auxiliary contacts
- 4
- Rated control supply voltage Us magnet drive at AC 50 Hz
- 115 V
- Rated control supply voltage Us magnet drive at AC 60 Hz
- 115 V
- Rated operation current Ie at AC-15, 24 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Rated operation current Ie at DC-13, 24 V
- 3 A
- Suitable for safety functions
- true
- Type of electric connection
- Cable entry metrical
- Type of guard locking
- Quiescent current principle
- Type of interface
- null
- Type of interface for safety communication
- null
- Type of switching contact
- Slow-action switch
- Width sensor
- 54 mm
- With escape release
- false
- With status indication
- true
