Siemens 3SE51320LR01
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

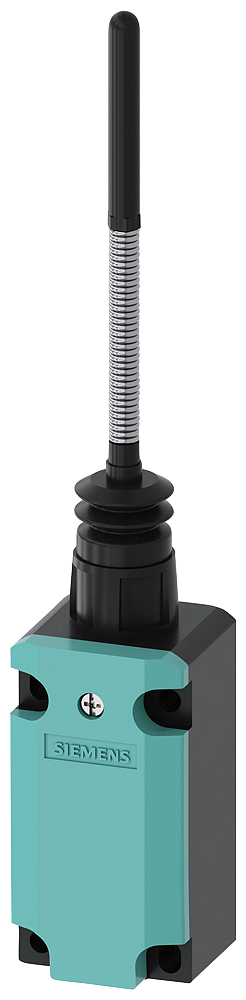

Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Spring rod actuator 142.5 mm total length with plastic plunger 50 mmLIMSW, SPRING ROD, 143MM, 1NO+1NC, SNAP, M20
Siemens 3SE51320LR01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Alignment of the control element
- Roller cam straight
- Ambient temperature during operating
- -25 °C
- Coating housing
- Other
- Construction type housing
- Cuboid
- Country of Origin
- DE
- Degree of protection (IP)
- IP65
- Degree of protection (NEMA)
- 12
- Explosion safety category for dust
- null
- Explosion safety category for gas
- null
- Forced opening
- false
- Height of sensor
- 37.8 mm
- Length of sensor
- 220.3 mm
- Material housing
- Plastic
- Number of contacts as change-over contact
- 0
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Number of safety auxiliary contacts
- 0
- Output electronic
- false
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at AC-15, 24 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Rated operation current Ie at DC-13, 24 V
- 3 A
- Suitable for safety functions
- false
- Switching function
- Quick-break switch
- Switching function latching
- false
- Type of control element
- Spring-rod
- Type of electric connection
- Cable entry metrical
- Type of interface
- null
- Type of interface for safety communication
- null
- Width sensor
- 40 mm
- With status indication
- false
