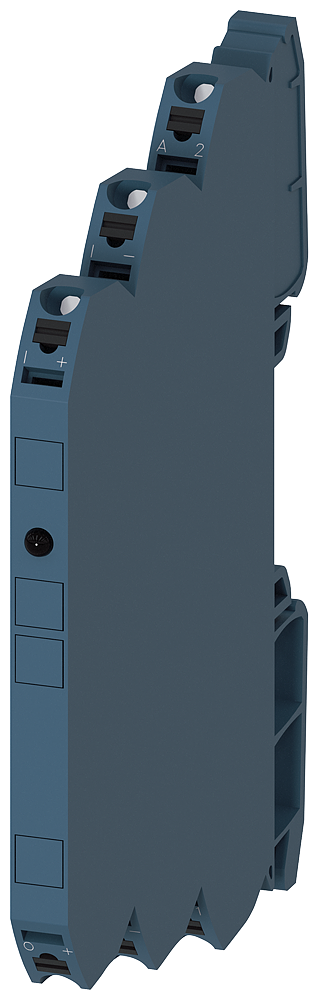

Siemens 3RS70022DE00
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SIGNAL CONVERTER 24 V AC/DC, 3-WAY ISOLATION IN: 0 TO 20 MA OUT: 4 TO 20 MA SPRING-TYPE TERMINAL0-20mA TO 4-20mA CNVRTR, 24VAC/DC
Siemens 3RS70022DE00 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Construction type of device
- Built-in device
- Country of Origin
- DE
- Degree of protection (IP)
- IP20
- Depth
- 72.5 mm
- Galvanic separation between input and output
- true
- Galvanic separation between inputs
- false
- Galvanic separation between output to output
- false
- Galvanic separation between supply voltage and all other current circuits
- true
- Height
- 93 mm
- Load
- 500 Ohm
- Load influence
- 0 Ohm
- Malfunction message output
- false
- Mounting method
- Snap mounting support rail
- Number of channels
- 1
- Number of input ranges 0 mV ... 200 mV
- 0
- Number of input ranges 0 V ... 24 V
- 0
- Number of input ranges 0 V ... 2.5 V
- 0
- Number of input ranges 0 V ... 30 V
- 0
- Number of input ranges -100 mV ... +100 mV
- 0
- Number of input ranges -10 mA ... +10 mA
- 0
- Number of input ranges 10 V ... 0 V
- 0
- Number of input ranges +10 V ... -10 V
- 0
- Number of input ranges -10 V ... +10 V
- 0
- Number of input ranges 10 V ... 2 V
- 0
- Number of input ranges -1 V ... +1 V
- 0
- Number of input ranges 1 V ... 5 V
- 0
- Number of input ranges 20 mA ... 0 mA
- 0
- Number of input ranges 20 mA ... 4 mA
- 0
- Number of input ranges -20 V ... +20 V
- 0
- Number of input ranges -2.5 V ... +2.5 V
- 0
- Number of input ranges -2 V ... +2 V
- 0
- Number of input ranges -300 mV ... +300 mV
- 0
- Number of input ranges -500 mV ... +500 mV
- 0
- Number of input ranges 5 V ... 0 V
- 0
- Number of input ranges 5 V ... 1 V
- 0
- Number of input ranges +5 V ... -5 V
- 0
- Number of input ranges -5 V ... +5 V
- 0
- Number of input ranges -60 mV ... +60 mV
- 0
- Number of output ranges 0 mA ... 10 mA
- 0
- Number of output ranges 0 mA ... 5 mA
- 0
- Number of output ranges 0 mV ... 100 mV
- 0
- Number of output ranges 0 mV ... 200 mV
- 0
- Number of output ranges 0 mV ... 300 mV
- 0
- Number of output ranges 0 mV ... 500 mV
- 0
- Number of output ranges 0 mV ... 60 mV
- 0
- Number of output ranges 0 V ... 1 V
- 0
- Number of output ranges 0 V ... 20 V
- 0
- Number of output ranges 0 V ... 24 V
- 0
- Number of output ranges 0 V ... 2.5 V
- 0
- Number of output ranges 0 V ... 2 V
- 0
- Number of output ranges 0 V ... 30 V
- 0
- Number of output ranges 0 V ... 5 V
- 0
- Number of output ranges -100 mV ... +100 mV
- 0
- Number of output ranges -10 mA ... +10 mA
- 0
- Number of output ranges 10 V ... 0 V
- 0
- Number of output ranges +10 V ... -10 V
- 0
- Number of output ranges -10 V ... +10 V
- 0
- Number of output ranges 10 V ... 2 V
- 0
- Number of output ranges -1 V ... +1 V
- 0
- Number of output ranges 1 V ... 5 V
- 0
- Number of output ranges 20 mA ... 0 mA
- 0
- Number of output ranges -20 mA ... +20 mA
- 0
- Number of output ranges 20 mA ... 4 mA
- 0
- Number of output ranges -20 V ... +20 V
- 0
- Number of output ranges -2.5 V ... +2.5 V
- 0
- Number of output ranges 2 V ... 10 V
- 0
- Number of output ranges -2 V ... +2 V
- 0
- Number of output ranges -300 mV ... +300 mV
- 0
- Number of output ranges -500 mV ... +500 mV
- 0
- Number of output ranges -5 mA ... +5 mA
- 0
- Number of output ranges 5 V ... 0 V
- 0
- Number of output ranges 5 V ... 1 V
- 0
- Number of output ranges +5 V ... -5 V
- 0
- Number of output ranges -5 V ... +5 V
- 0
- Number of output ranges -60 mV ... +60 mV
- 0
- Operation temperature
- -25 °C
- Power consumption
- 0.29 kW
- Rated operation frequency
- 50 Hz
- SIL according to IEC 61508
- null
- Temperature drift
- 0.015 %/K
- Type of electric connection
- Spring clamp connection
- Width
- 6.2 mm
